SKU: 38910.1
|
MPN: SP2035
NEW
Siglent SP2035 Passive Probe, 350MHz, 1X, 10X, 14 pF, 300V, CAT2, SP Series
Regular price
€66,00
inc. VAT
Couldn't load pickup availability
Ask an expert!
Siglent
Siglent Technologies manufactures oscilloscopes, waveform generators, spectrum analyzers, and power supplies offering exceptional value and reliability for engineers and educators.

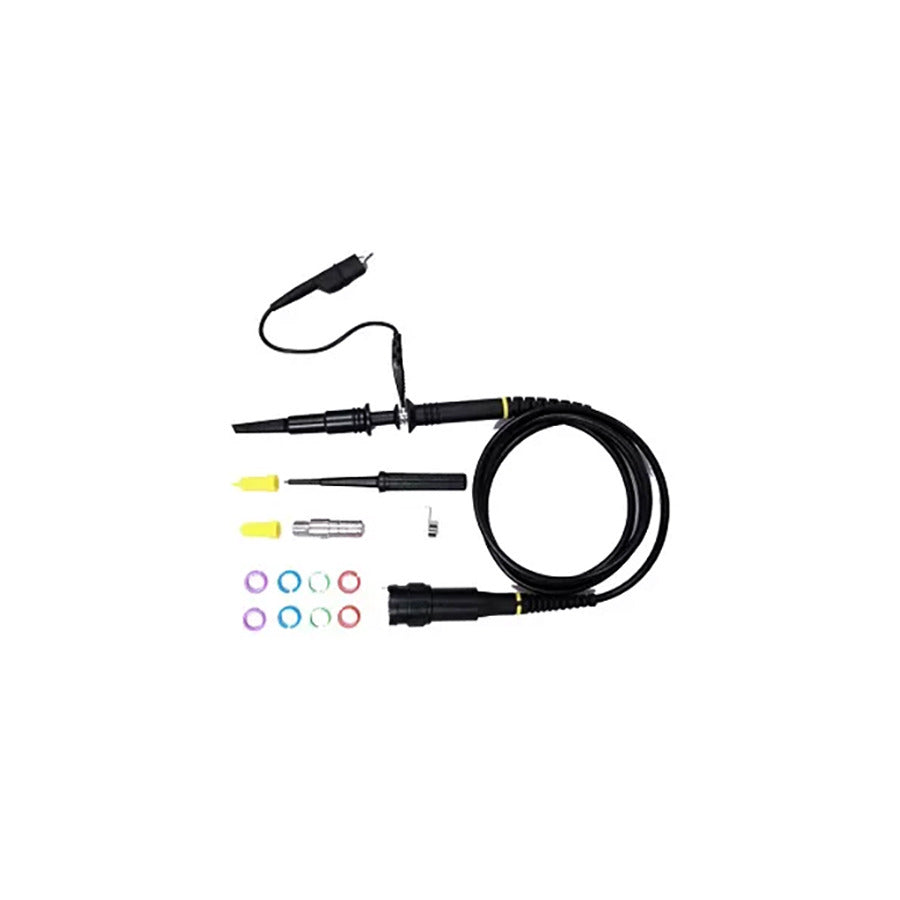

Siglent SP2035 1:1/10:1 350MHz Passive Oscilloscope Probe
Features and Specifications- Bandwidth: 350MHz
- Input capacitance: 85 pf / 17 pf
- Attenuation ratio 1:1/10:1 (switchable)
- Input resistance 1 MΩ / 10 MΩ
- Maximum input 150 V RMS/ 300 V RMS CAT II
- Risetime: 1 ns
The Siglent SP2035 is a 350MHz Passive Probe with switchable attenuation of 1x and 10x. Has input voltage 150V at 1x (1 MOhm) and 300V at 10x (10 Mohm). Input capacitance: 85 pf / 17 pf
What's in the Box- Retractable Hook Tip
- Adjustment Tool
- 2x Locating Sleeve
- 8x Marker Rings
- Ground Lead
- Ground Spring
- BNC Adapter
