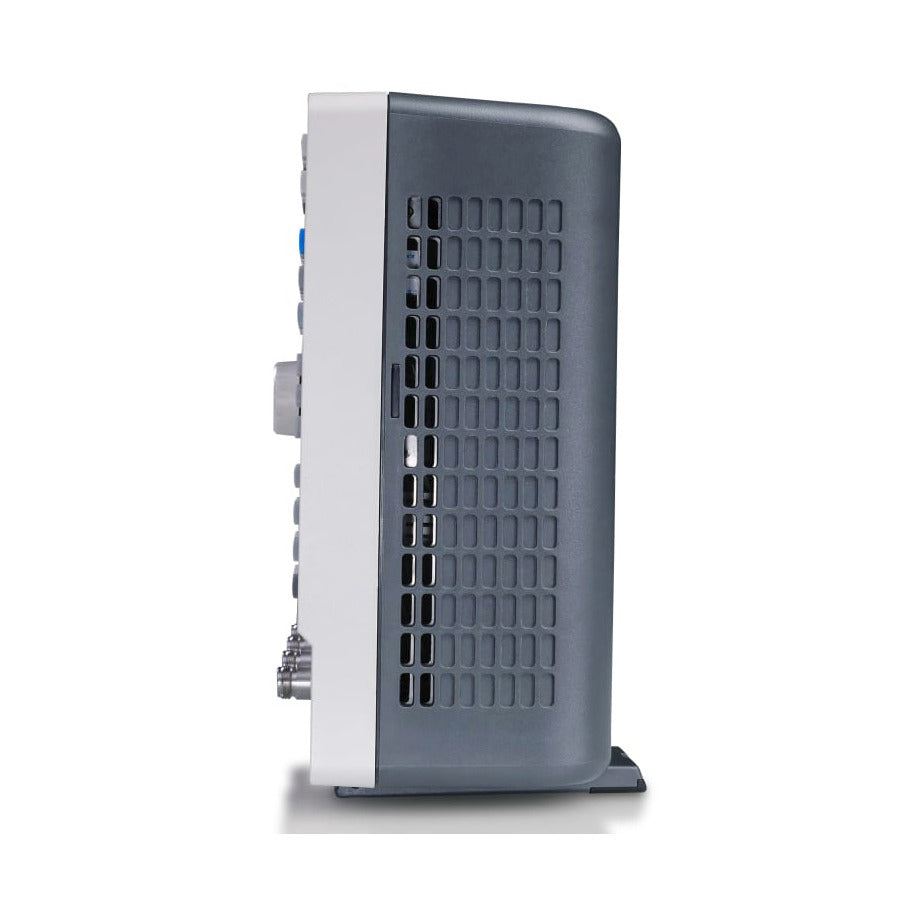

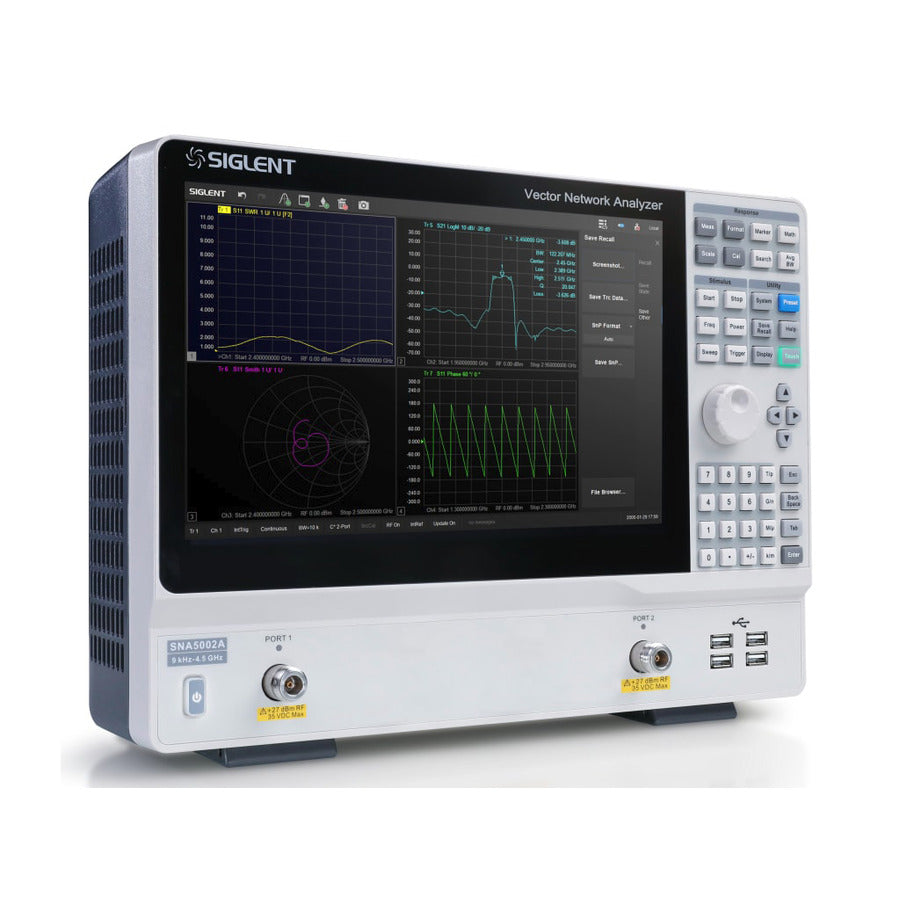

Siglent SNA5022A Vector Network Analyzer, 2 Ports, 100kHz - 13.5GHz, SNA5000A Series
Couldn't load pickup availability
Ask an expert!
Siglent
Siglent Technologies manufactures oscilloscopes, waveform generators, spectrum analyzers, and power supplies offering exceptional value and reliability for engineers and educators.
SNA5022A Vector Network Analyzer
SNA5022A Specs:
- Ports: 2
- Frequency range: 100 kHz – 13.5 GHz
SNA5000A series:
- Frequencey Resolution: 1 Hz, IFBW 10 Hz - 3 MHz
- Dynamic Range: 125 dB
- Output Level Range: -55 dBm to +10 dBm
- Supports scattering, differential, time domain parameter measurements and more
- Effective for determining Q factor, bandwidth and insertion loss of a filter
- Five sweep types: linear frequency, log frequency, power sweep, CW-time and segment sweep
- Types of calibration: Response, enhanced response, TRL and more
- Supports bias tees

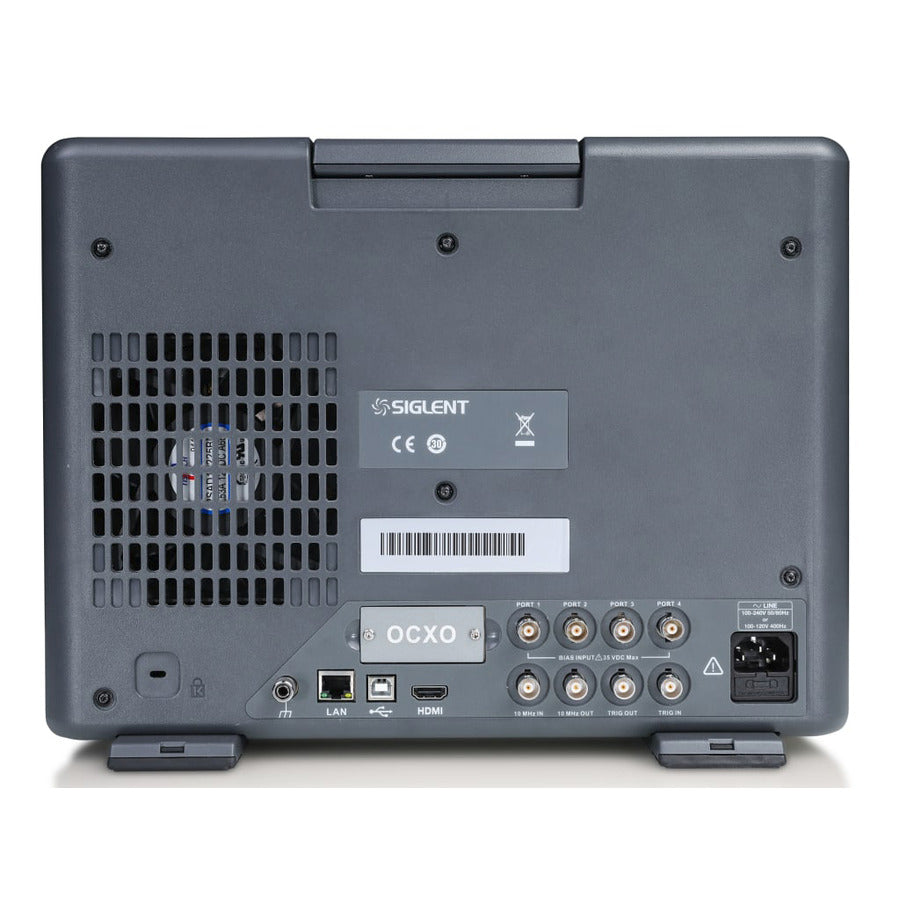

- Interface: LAN, USB Device, USB Host(USB-GPIB)
- Remote control: SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet/WebServer

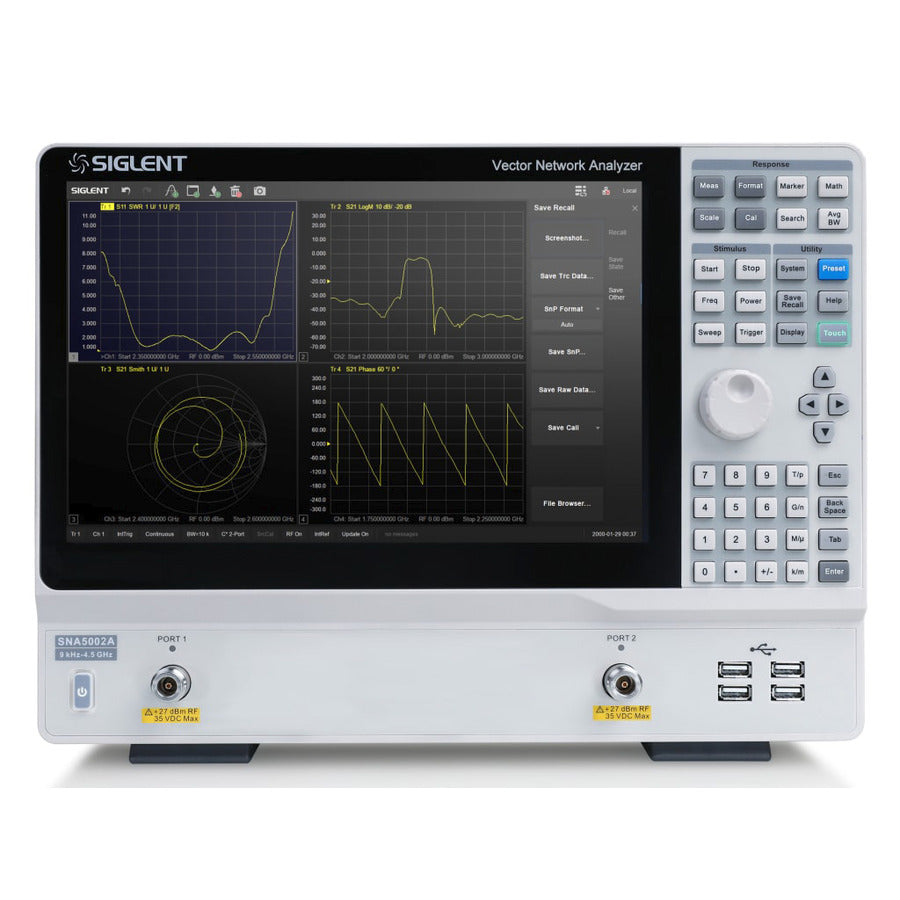

- 12.1-inch touch screen
The SIGLENT SNA5000A series of Vector Network Analyzers have a frequency range up to 26.5 GHz, and support 2/4-port scattering-parameter, differential-parameter, and time-domain parameter measurements.
The SNA5000A series of VNAs are effective instrumentation for determining the Q-factor, bandwidth and insertion loss of a filter. They feature impedance conversion, movement of measurement plane, limit testing, ripple test, fixture simulation and adapter removal/insertion adjustments. The SNA5000A have five sweep types: Linear-Frequency mode, Log-Frequency mode, Power-Sweep mode, CW-Time mode and Segment-Sweep mode. These also support scattering-parameter correction of SOLT, SOLR, TRL, Response and Enhanced Response for increased flexibility in R&D and manufacturing applications.
Several versions available
The SNA5000A is available with either two or four ports, and a maximum bandwidth of up to 26.5 GHz.
