Siglent SDS6000L-EJ Eye Diagram/Jitter Analysis, For SDS6000L Series
Regular price
€1.080,00
inc. VAT
Couldn't load pickup availability
Ask an expert!
Siglent
Siglent Technologies manufactures oscilloscopes, waveform generators, spectrum analyzers, and power supplies offering exceptional value and reliability for engineers and educators.
SDS6000L-EJ Eye Diagram/Jitter Analysis Software
- Eye diagram/jitter analysis for SDS6000L series
- Source: CH1 – CH8
- Eye diagram measure: Eye height, "1" level, "0" level, Eye amplitude, Eye width, Eye crossing, Average power, Q factor, TIE
- Mask Test: Supported
- Jitter analysis Clock recovery: Constant frequency, PLL

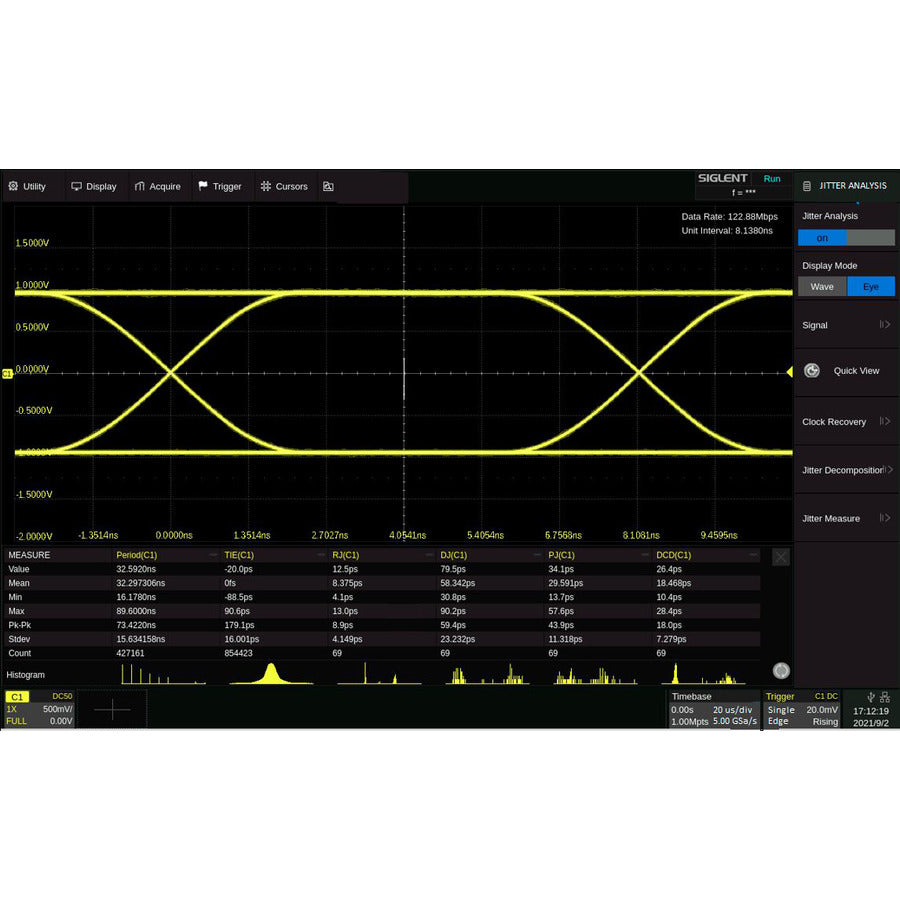

SDS6000L-EJ for the SDS6000L series supports eye diagram and jitter analysis / measurement. It can automatically extract the embedded reference clock from serial data and create an eye diagram. Measurement on multiple eye / jitter parameters is provided and mask testing of eye diagrams is supported.
