SKU: 38824.1
|
MPN: SDM3065X
NEW

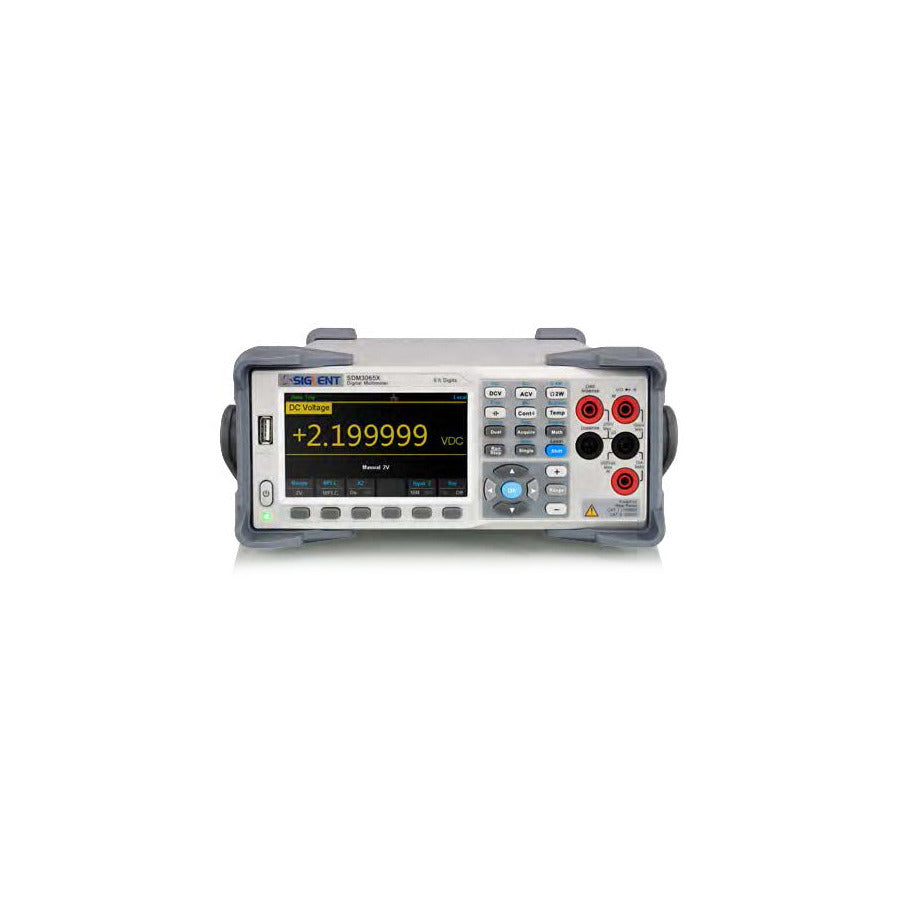

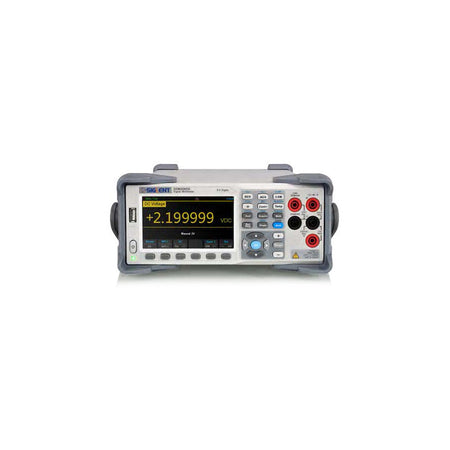

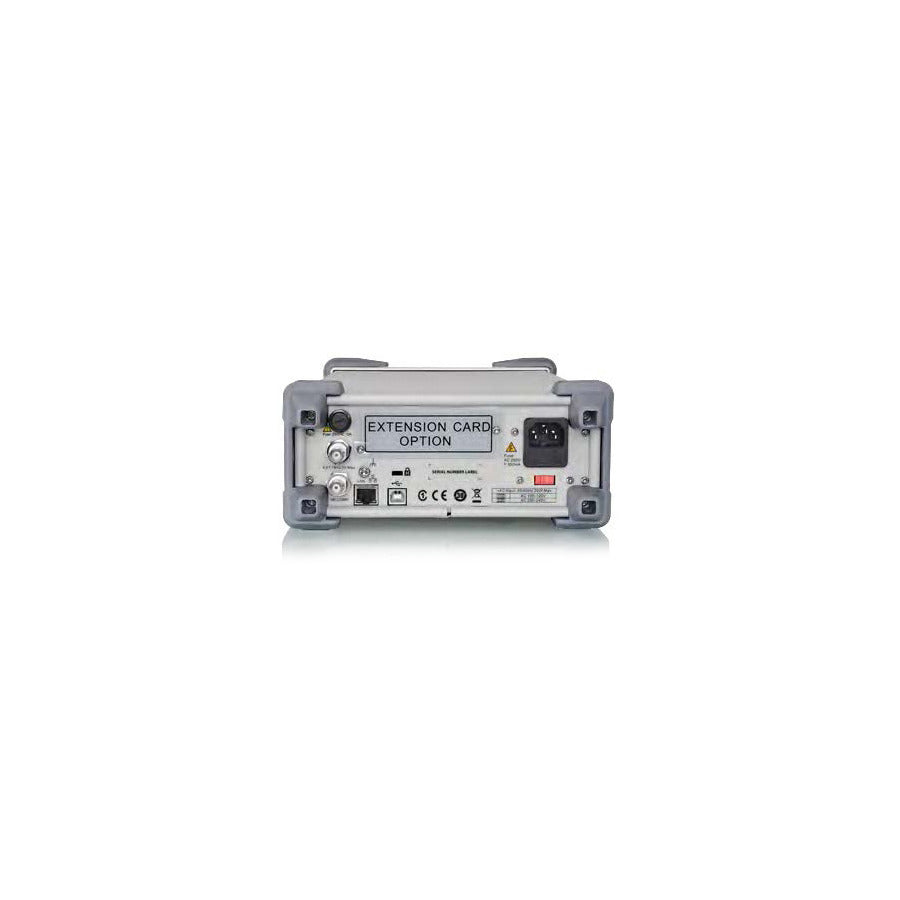

Siglent SDM3065X Digital Multimeter, Real 6 1/2 Digits, True RMS, TFT-LCD, SDM3000 Series
Regular price
€826,80
inc. VAT
Couldn't load pickup availability
Ask an expert!
Siglent
Siglent Technologies manufactures oscilloscopes, waveform generators, spectrum analyzers, and power supplies offering exceptional value and reliability for engineers and educators.
6 1/2 Digital Multimeter SDM3065X
The SDM3065X is a 6 1/2 digit DMM (digital multimeter with 2,200,000 counts) incorporating a dual-display. It is especially well-suited for the needs of high-accuracy and high-precision applications measurement.
Features:
- Real 6 1/2 digits readings resolution (2,200,000 counts)
- 1 Gb Nand flash size, Mass storage configuration files and data files
- True-RMS AC Voltage and AC Current measuring
- Built-in cold terminal compensation for thermocouple
- Software: EasyDMM
- Multi-function Measurement: ACV, ACI, DCV, DCI, resistance, capacitance, frequency, period, temperature, supports diode and connectivity tests
- Supports bar chart, trend chart, histogram display
- 4.3 in TFT-LCD display (480x272)
- Standard interfaces: USB Device, USB Host, LAN
- Support remote control operation via SCPI commands and is compatible with commands of other main stream multimeters
- Optional: USB-GPIB Adapter
Note: Scanner card NOT SUPPORTED
Standard Accessories:
- Power Cord -1
- USB Cable -1
- Quick Start -1
- Calibration Certificate -1
- Test Leads and Alligator Clips -2
Application Fields:
- Research Laboratory
- Development Laboratory
- Detection and Maintenance
- Calibration Laboratory
- Automatic Production Test
