SKU: 38820.1
|
MPN: SDL1030X
NEW

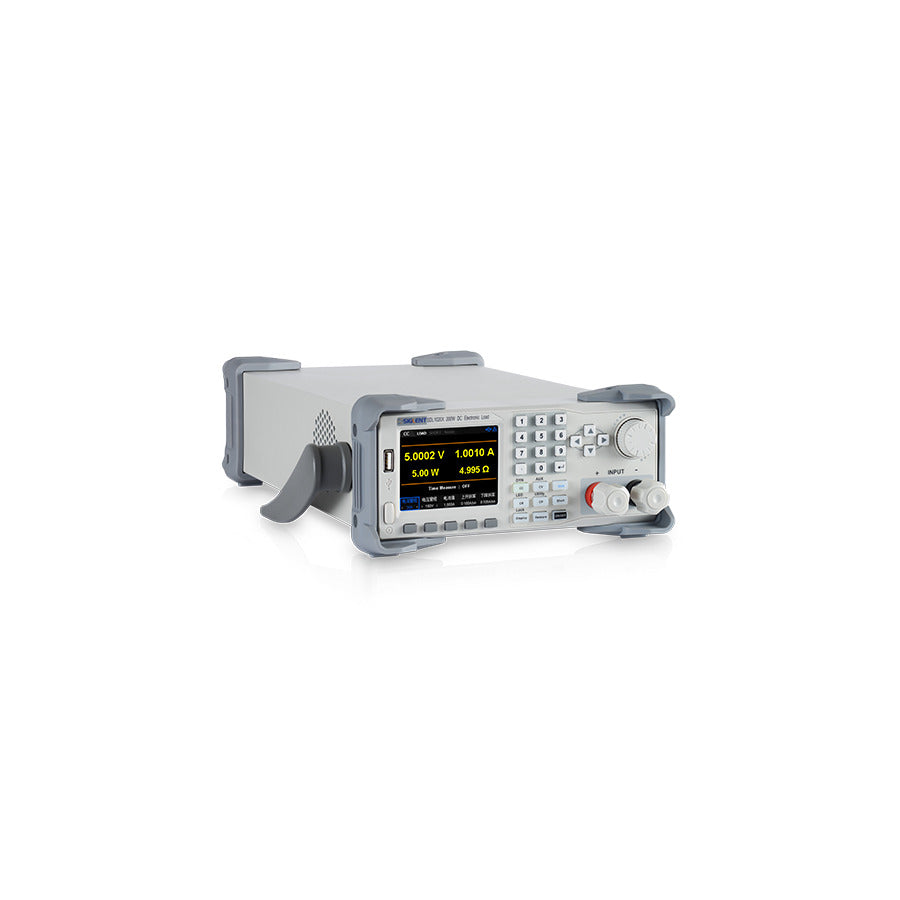

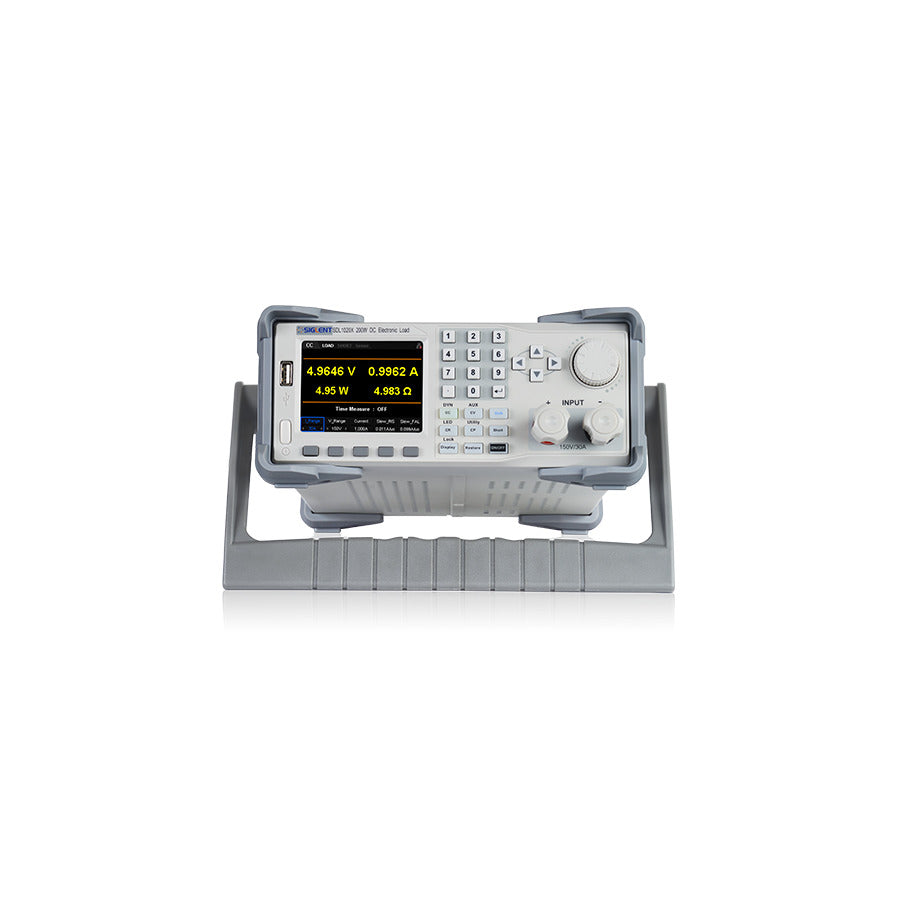

Siglent SDL1030X DC Electronic Load, 300W, 150V/30A, 3.5" LCD, RS232/USB/LAN/GPIB, SDL1000X Series
Regular price
€1.186,80
inc. VAT
Couldn't load pickup availability
Ask an expert!
Siglent
Siglent Technologies manufactures oscilloscopes, waveform generators, spectrum analyzers, and power supplies offering exceptional value and reliability for engineers and educators.
SDL1030X Programmable DC Electronic Load
Features:
- 0.1 mV, 0.1 mA readback resolution
- 0.001 A/us to 2.5 A/us Current slew rate
- up to 500 kHz Measuring speed
- 25 kHz CC Dynamic mode frequency
- CC/CV/CR/CP Mode
- 300W Input power
- 30A Input current
- 150V Input voltage
- External analog control
- 3.5" TFT-LCD display capable of displaying multiple parameters and states simultaneously

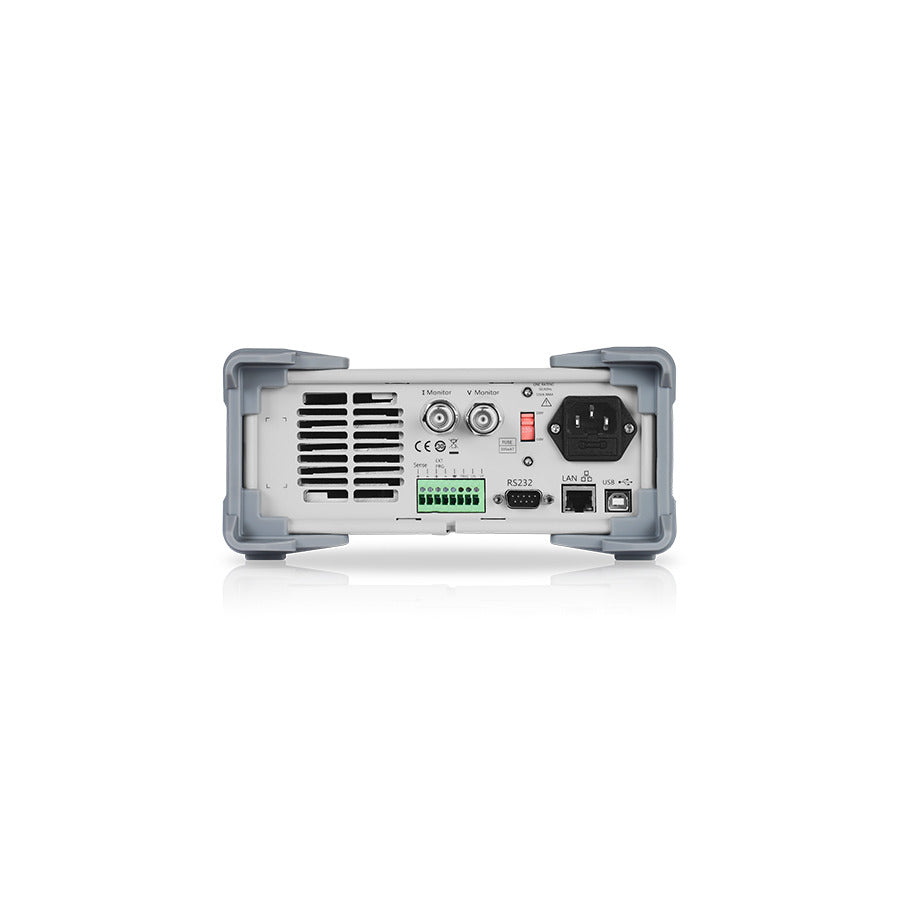

- RS232/USB/LAN communication interfaces for remote communication and control
- PC software: Supports SCPI, LabView driver
Standard Accessories:
- USB Cable -1
- Quick Start -1
- Calibration Certificate -1
- Power cord -1
SDL1000X/SDL1000X-E Series Programmable DC Electronic Load has a user-friendly interface and superb performance specifications. It delivers stability over a wide range of applications and can meet all kinds of testing requirements. including: Power, battery/handheld device design, industry, LED lighting, automotive electronics, and aerospace.
SDL Series highlights:
- Excellent Dynamic Characteristics, Can Simulate High-speed Current Changes
- Supports 50-step Automatic Programming Test
- Supports 100-step List Test
- CR-LED Test Functions
- Battery Test Functions
