Siglent SDG6052X Function/Arbitrary Waveform Generator, 500MHz, 2CH, 2.4GSa/s, SDG6000X Series
Couldn't load pickup availability
Ask an expert!
Siglent
Siglent Technologies manufactures oscilloscopes, waveform generators, spectrum analyzers, and power supplies offering exceptional value and reliability for engineers and educators.

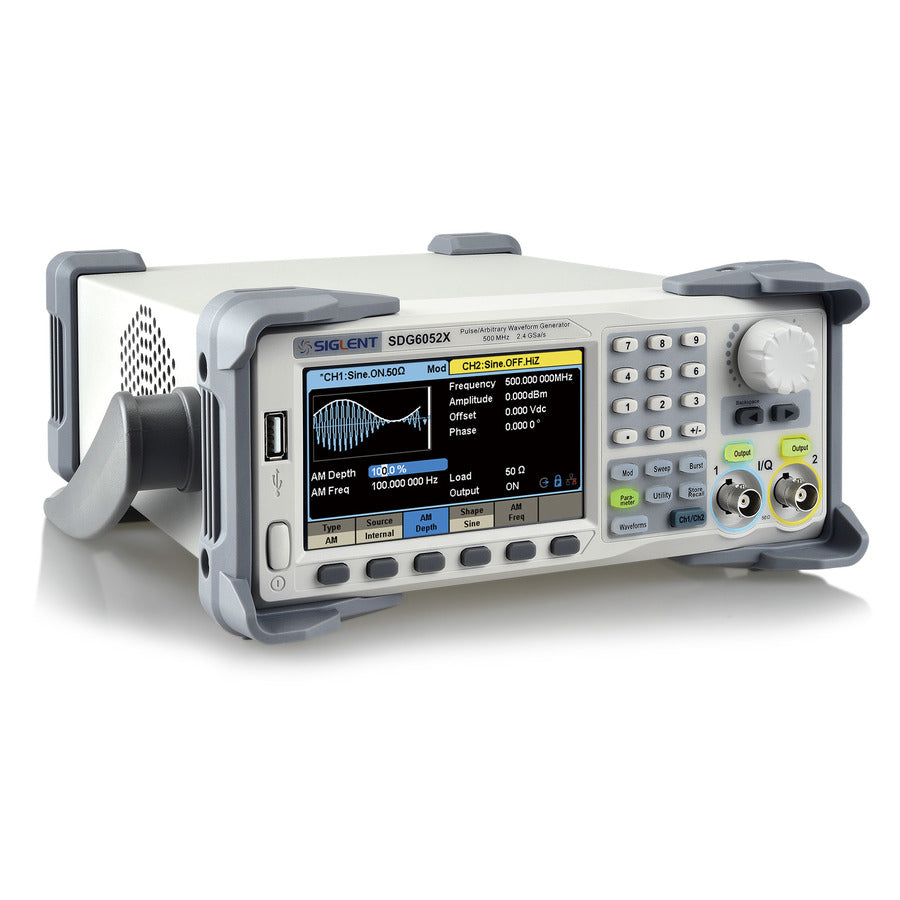

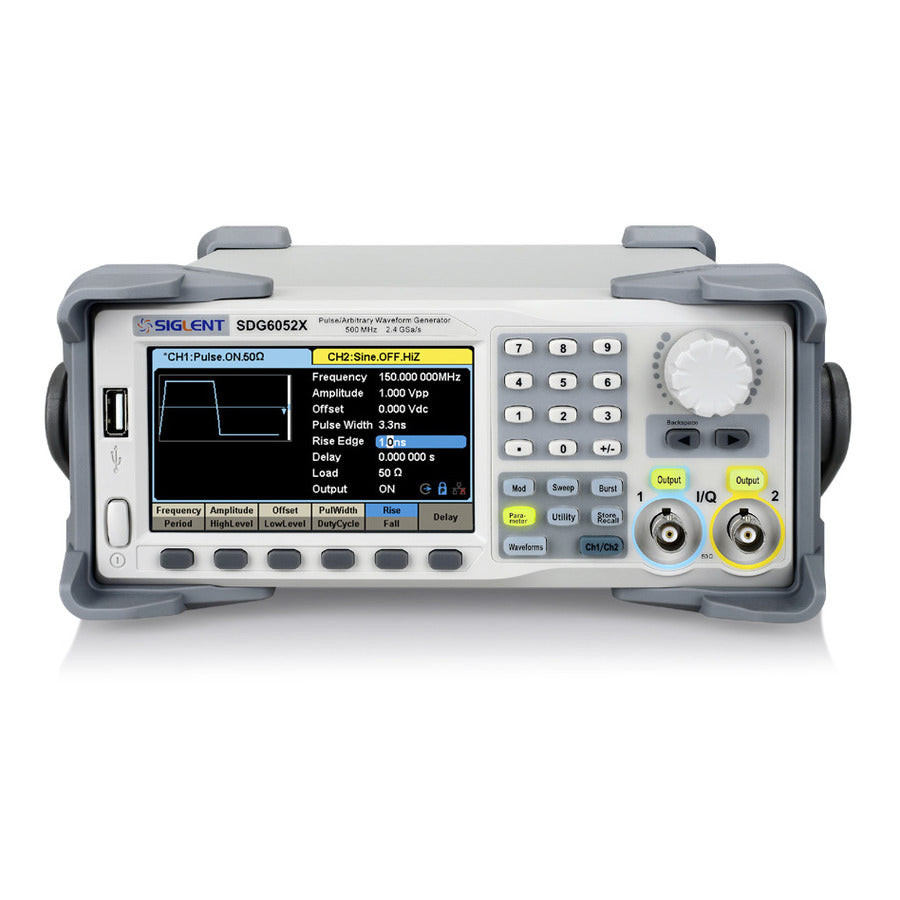

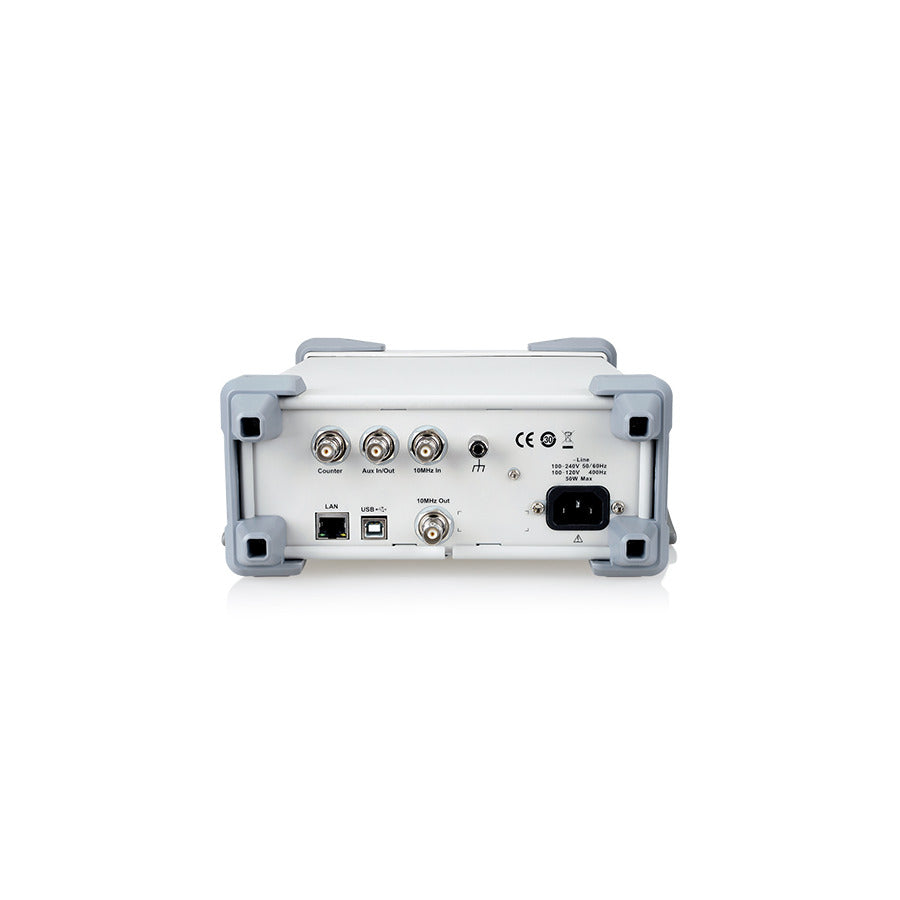

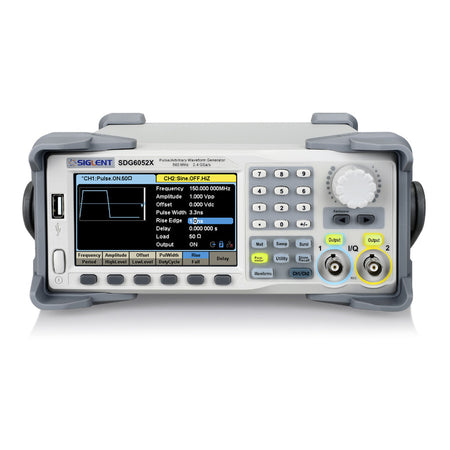

SDG6052X Pulse/Arbitrary Waveform Generator
Features:
- 500 MHz Max output frequency
- 2 Channels
- 2.4 GSa/s Sampling rate
- 16 bit Vertical resolution
- 20 Mpts Waveform length
- Multi-function signal generator
- Waveform combining function
- Channel coupling, copy and tracking function
- 196 built-in arbitrary waveforms
- High-precision frequency counter
- Adjustable rise and fall time
- 4.3 in touch-screen display
- Standard: USB host, USB device (USBTMC), LAN (VXI-11, Socket, Telnet)
- Optional: GPIB (USB-GPIB adaptor)
- Optional: IQ Signal Generator - output IQ baseband and IF IQ signals. EasyIQ PC software can generate multiple IQ modulation types.
Standard Configurations:
- Quick Start -1
- Power cord -1
- Calibration certificate -1
- USB cable -1
- BNC coaxial cable -2
The SDG6000X Series are dual-channel Pulse/Arbitrary Waveform Generators. Its proprietary TrueArb and EasyPulse technology help solve the weaknesses inherent in traditional DDS generators when generating arbitrary, square and pulse waveforms. In addition, the SDG6000X is a multi-function device which can generate Noise, IQ signals and PRBS patterns. These features provide a variety of high-fidelity and low-jitter signals, meeting the growing requirements of complex and intensive applications.
