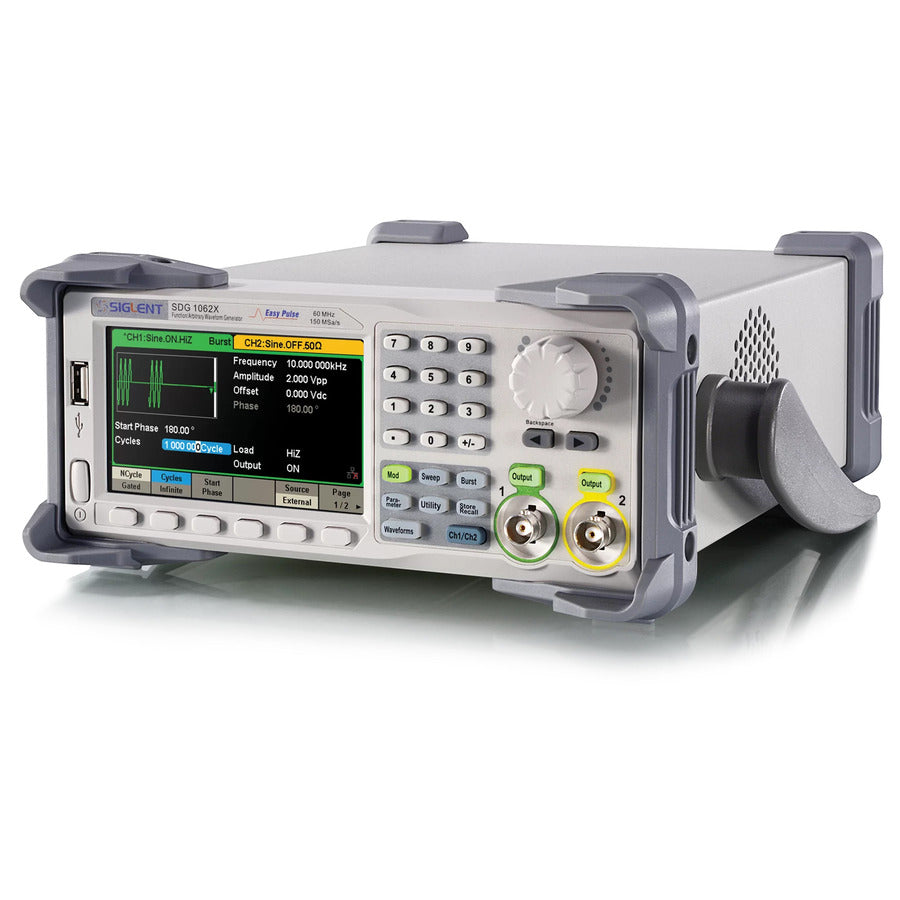

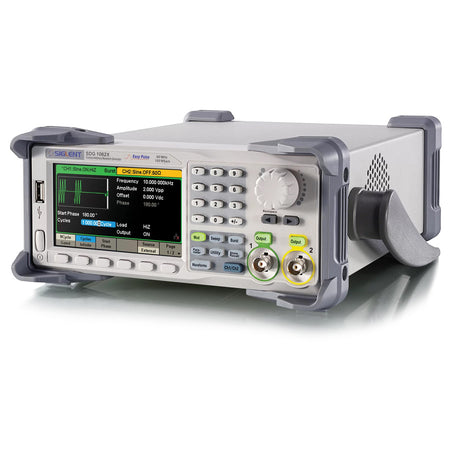

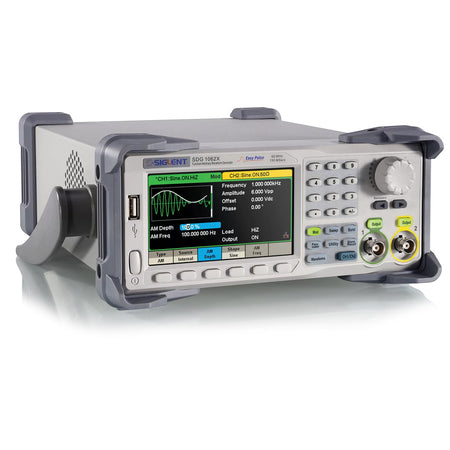

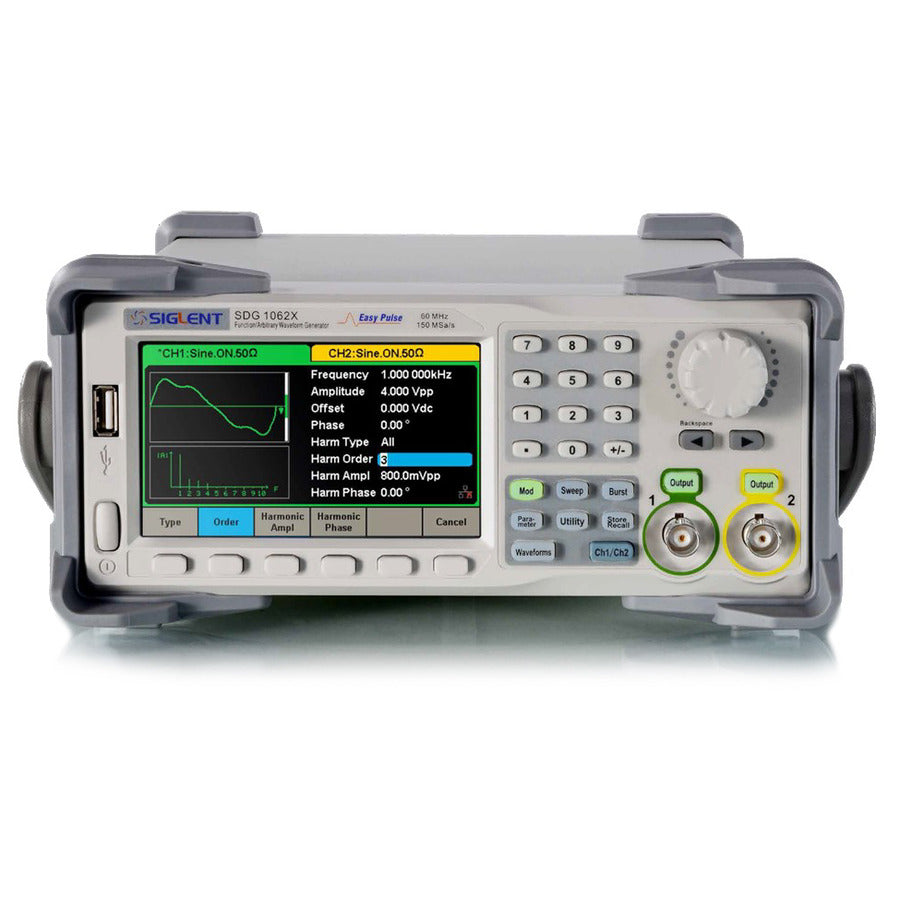

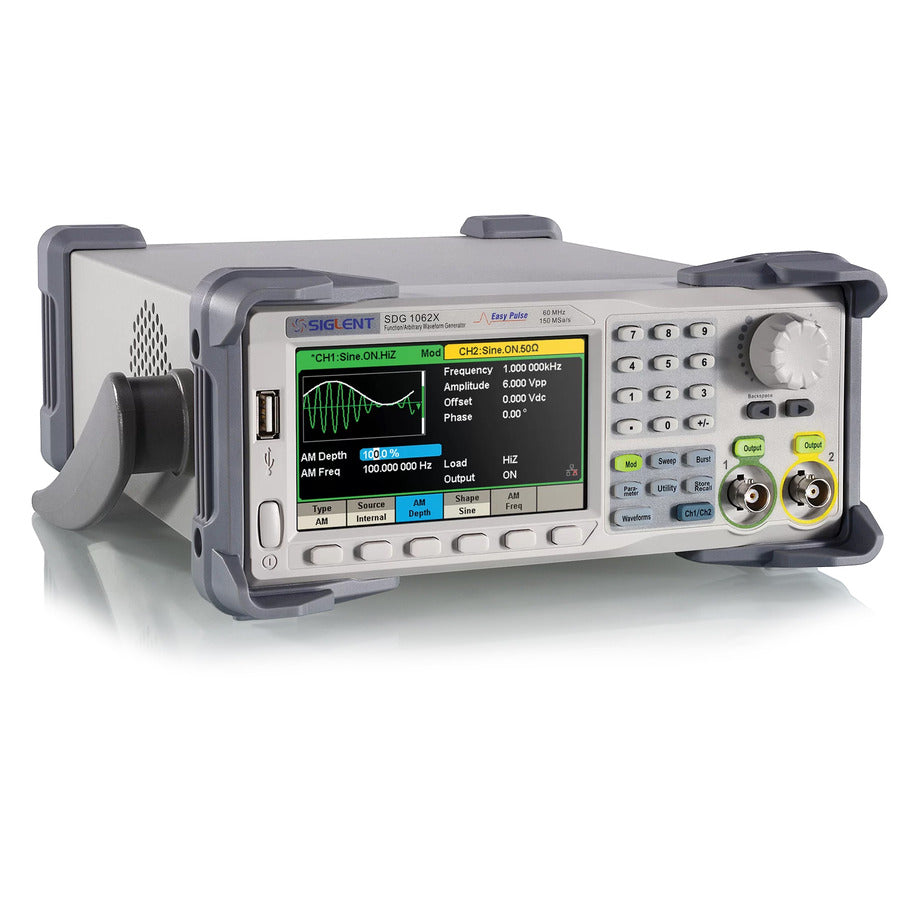

Siglent SDG1062X Function/Arbitrary Waveform Generator, 60 MHz, 2 Channel, 150 MS/s, 14 Bit, SDG1000X Series
Couldn't load pickup availability
Ask an expert!
Siglent
Siglent Technologies manufactures oscilloscopes, waveform generators, spectrum analyzers, and power supplies offering exceptional value and reliability for engineers and educators.
Replacement Product is SDG1062X Plus
SDG1062X Function/Arbitrary Waveform Generator
Specs
- Max Output Frequency: 60 MHz
- Max Sampling Rate: 150 MSa/s
- Vertical Resolution: 14-bit
- Waveform Length: 16 kpts
- Channels: 2
SDG1000X Series Highlights
- Special circuit for Square wave function, can generate Square waves up to 60 MHz with jitter less than 300 ps+0.05 ppm of period
- Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM
- Sweep and Burst functions
- Harmonics Generator function
- Waveform Combining function
- High precision Frequency Counter
- Standard interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11)
- Optional interface: GPIB
- 4.3" TFT-LCD display
The SDG1062X dual-channel arbitrary waveform generator includes 60 MHz maximum bandwidth, 150 MSa/s sampling rate and 14-bit vertical resolution. The proprietary EasyPulse & TrueArb technique helps to solve the weaknesses inherent in traditional DDS generators when generating pulse waveforms, and the special square generator is capable of generating square waveforms up to 60 MHz in frequency with low jitter. With these advantages, SDG1062X function generator can provide users with a variety of high fidelity/low jitter signals while meeting the growing requirements of a wide range of complex and varied applications.
SIGLENT's SDG1000X series consists of two models: SDG1062X (60 MHz) and SDG1032X (30 MHz).
What's in the Box
- SDG1062X Function/Arbitrary Waveform Generator
- Power cord
- USB cable
- Calibration certificate
