Siglent DIG-LVTTL Digital Bus Kit-LVTTL, Module And Cables, For SDG7000A Series
Couldn't load pickup availability
Ask an expert!
Siglent
Siglent Technologies manufactures oscilloscopes, waveform generators, spectrum analyzers, and power supplies offering exceptional value and reliability for engineers and educators.
DIG-LVTTL Digital Bus Kit
Features:
- 16-bit Low Voltage TTL digital module
- Accessory for the SDG7000A Series AWG
- Bit rate 1μbps ~ 200 Mbps

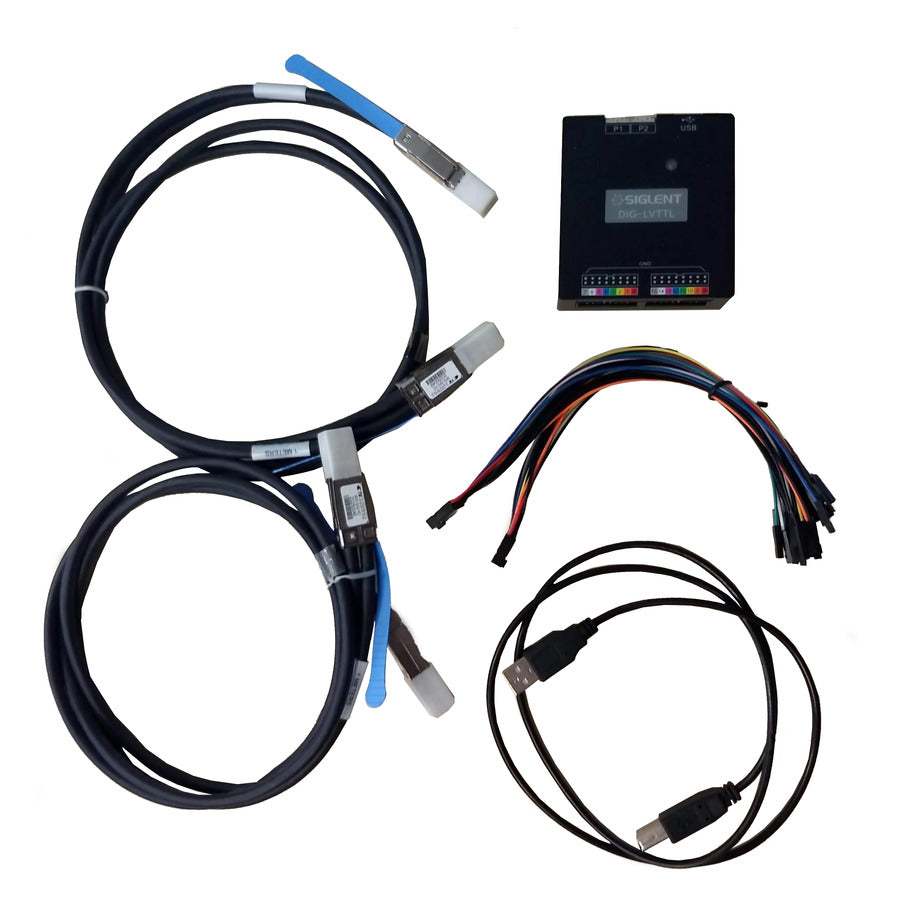

Includes:
- (1) LVTTL Module
- (1) USB cable (Power to LVTTL Module)
- (2) Cable assemblies (LVTTL to DUT)
- (2) Cable assemblies (SDG7000A Connection)
The SDG7000A Arbitrary Waveform Generator Series provides 16 digital signal outputs. The digital output function is available with the optional digital output kit. There are two digital levels to choose from: LVTTL and LVDS. The LVTTL kit output converts the LVDS signal output by the device into LVTTL signals and outputs it. Since the level conversion requires a special chip, the kit needs an external USB power supply. The kit providing LVDS output directly leads out the LVDS signal of the device without an external power supply.
