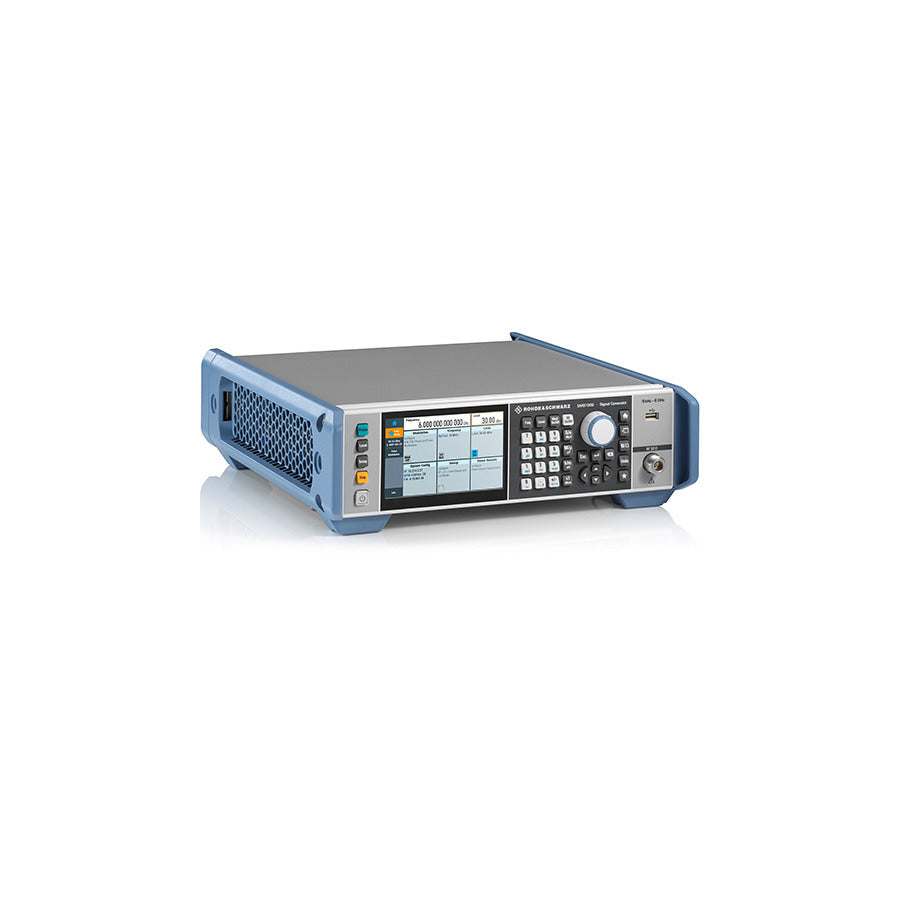

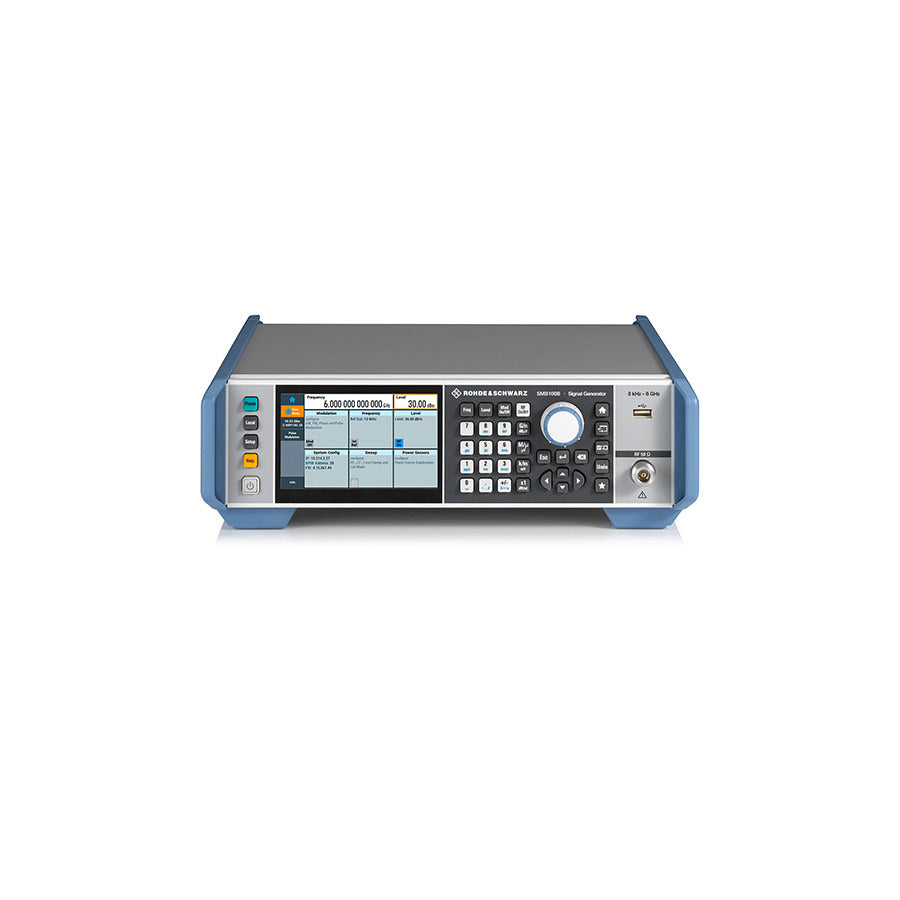

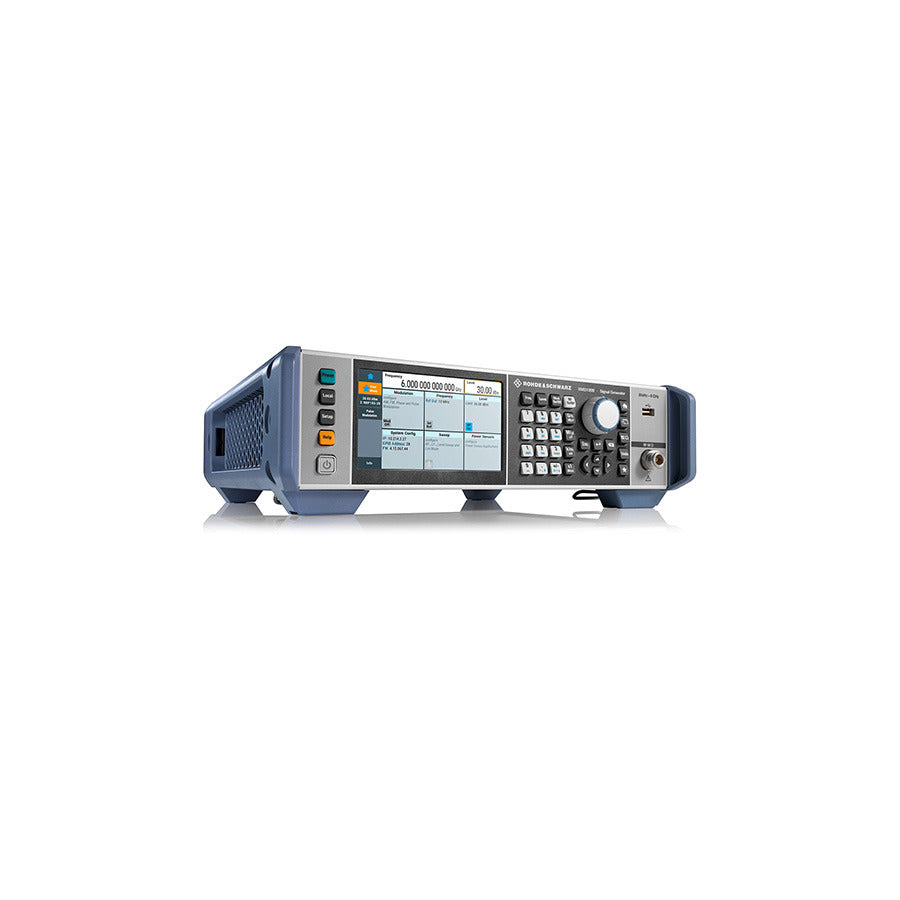

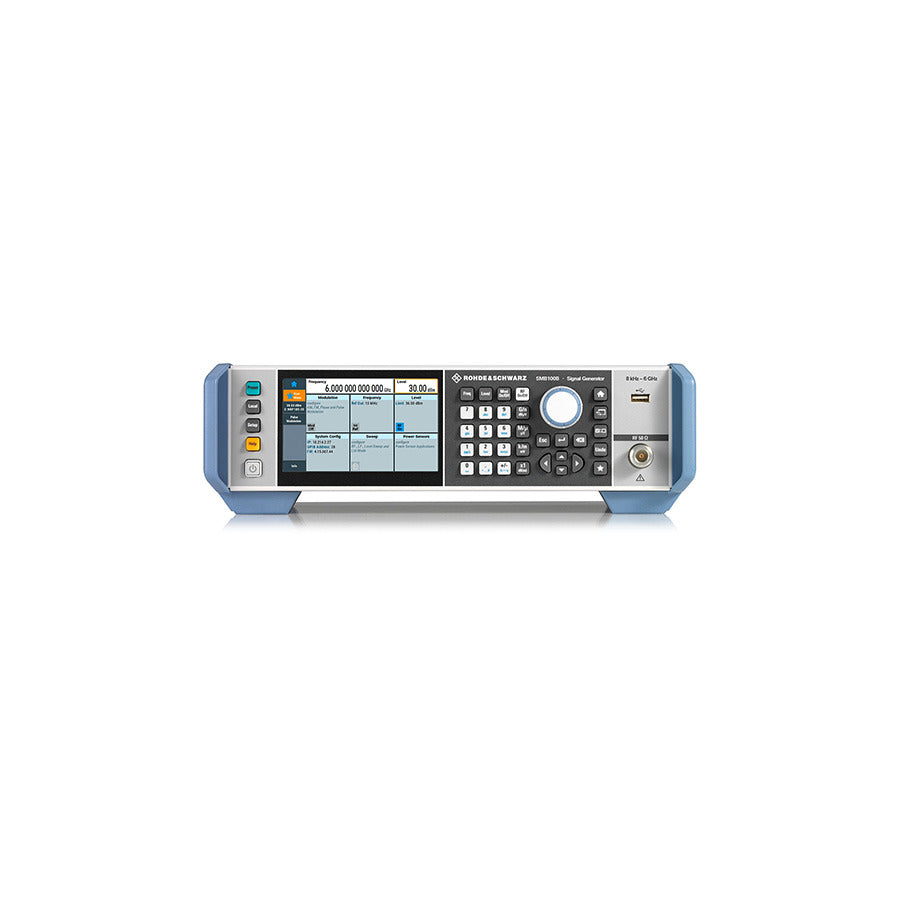

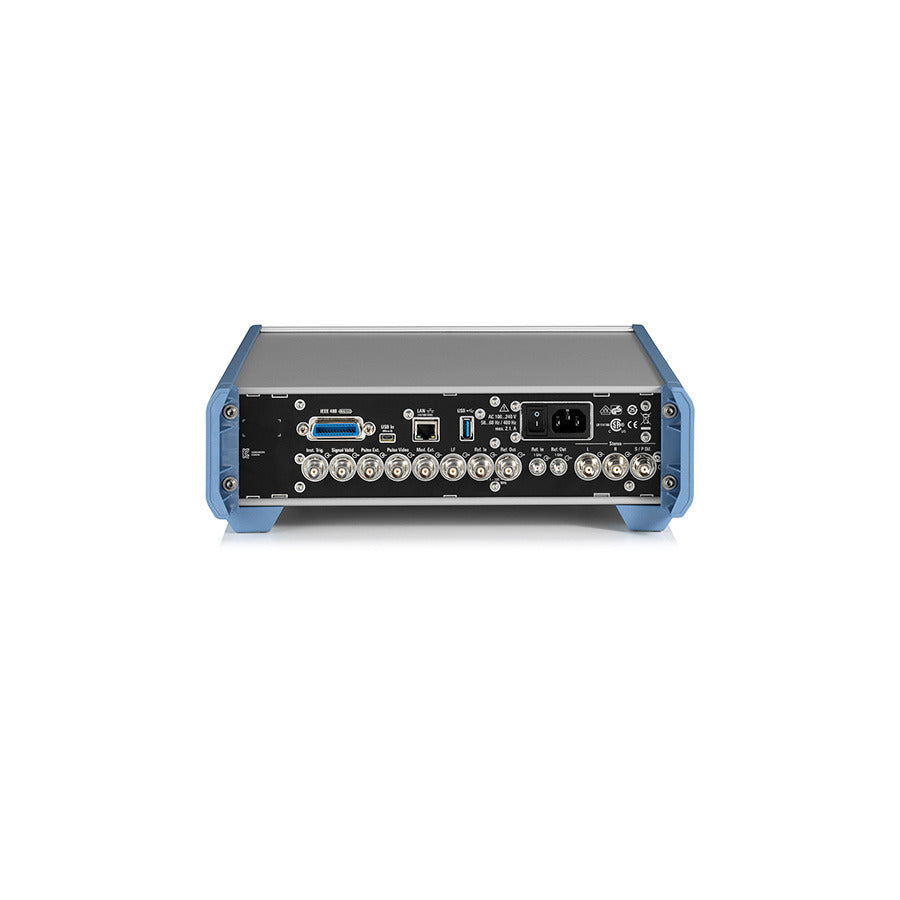

Rohde & Schwarz SMB100B RF Signal Generator

*Base model must be purchased with required frequency options: SMBB-B101 SMBB-B103 SMBB-B106.

• Frequency range from 8 kHz to 1 GHz, 3 GHz or 6 GHz
• Outstanding single sideband (SSB) phase noise of < –134 dBc (meas.) at 1 GHz and an offset of 20 kHz
• Very low wideband noise of < –153 dBc (typ.) at 15 MHz < f ≤ 6 GHz and an offset of 30 MHz
• Ultra high output power of 34 dBm (meas.) at 1 GHz
• Compact form factor with 2 HU and ¾ 19" width
• Large, state of the art 5" GUI with touchscreen

Perfect combination of performance and usability in a compact size
The new R&S®SMB100B RF signal generator is all about performance and versatility in a small footprint. Outstanding spectral purity and very high output power combined with comprehensive functionality and very simple operation are some of the impressive features of the R&S®SMB100B. It offers a frequency range from 8 kHz to 1 GHz, 3 GHz or 6 GHz.
