Multi-channel power probes for oscilloscopes
Key facts:
- Up to 4 high-sensitivity voltage and current channels
- 18-bit ADC at 5 Msample/s (for each channel)
- 1 MHz bandwidth with flexible filtering options
- Several current ranges from 4.5 uA to 10 A with internal shunt
- Flexible connectivity options for every application

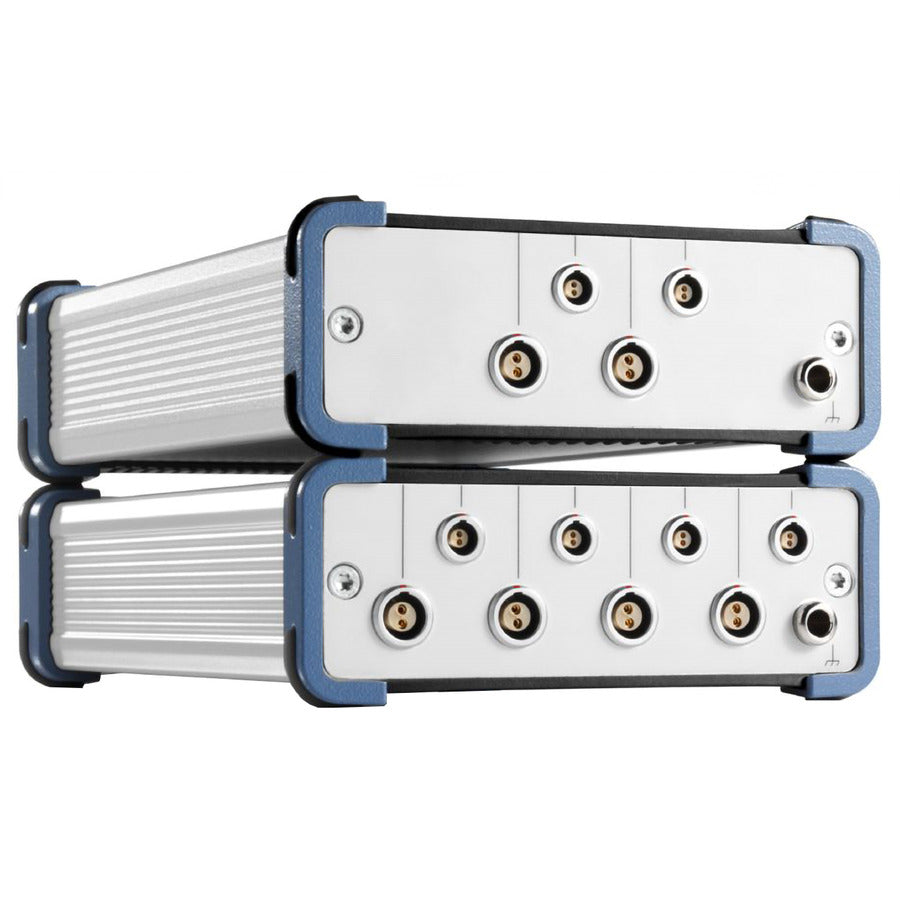

The R &S RT-ZVC multi-channel power probe offers up to four voltage and four current channels with 18-bit resolution for high dynamic range current and voltage measurements. With up to two R &S RT-ZVC probes supported on an R &S RTE or R &S RTO oscilloscope, it is possible to analyze eight high dynamic range voltage and eight high dynamic range current signals in parallel with signals captured by the oscilloscope.
