Rohde & Schwarz RT-ZP10 Passive Probe, 500MHz, 10X, 9.5 pF, 400V, CAT1, CAT2, RT-Zxx Series
Regular price
€612,00
inc. VAT
Couldn't load pickup availability
Ask an expert!
Rohde & Schwarz
Rohde & Schwarz is a world leader in test and measurement technology, delivering cutting-edge RF, wireless, and communications solutions trusted by engineers and research institutions globally.

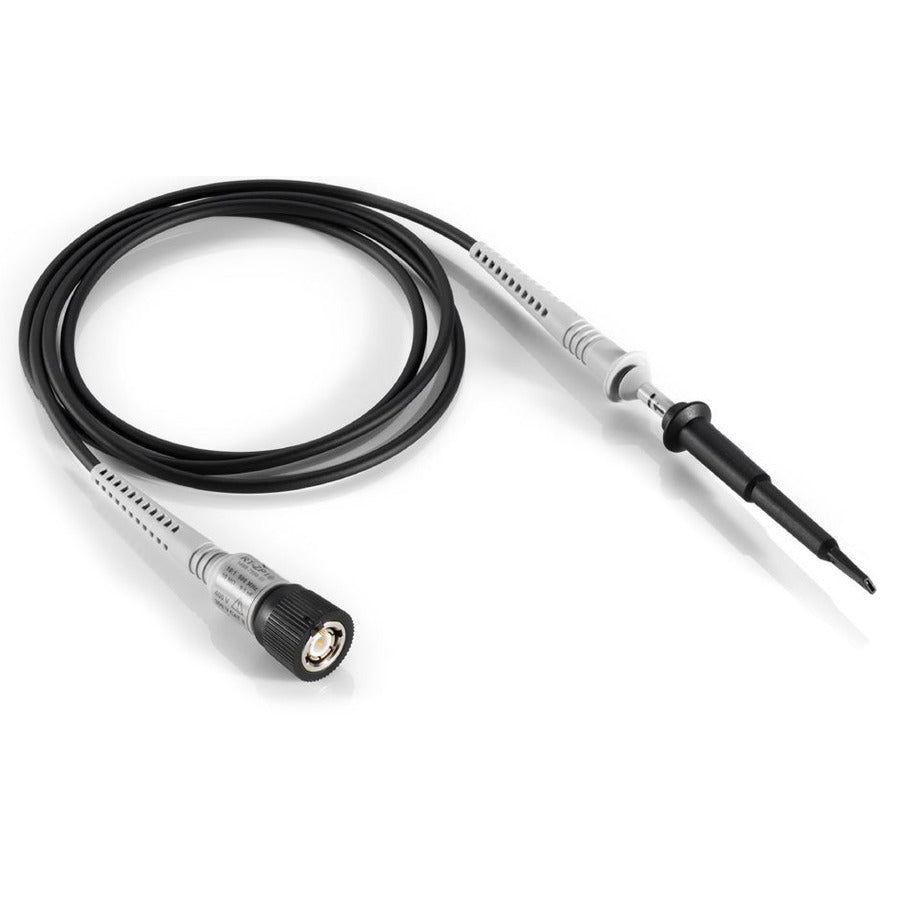

Rohde & Schwarz RT-ZP10 10:1 500 MHz Passive Oscilloscope Probe
Features and Specifications- Attenuation: 10:1
- Bandwidth: 500 MHz (meas.)
- Rise time: 700 ps (meas.)
- Input voltage: 400 V(RMS), 300 V (RMS) CAT II
- Input capacitance: 9.5 pF (meas.)
The RT-ZP10 is a 500MHz Passive Voltage Probe, 2.5mm Tip. It has an attenuation of 10:1. It has a Maximum Rated Input Voltage of 400 V rms, 300 V rms CAT II and an Input Capacitance 9.5 pF.
What's in the Box- Adjustment Tool
- Coding Rings (set) 3x4 Colors
- Ground Lead 15 cm
- Ground Spring 2.5
- Operating Manual
- Probe
- Solid Tip CuBe 0.5 mm
- Spring Tip gold plated 0.5 mm (installed in probe)
- Sprung Hook 2.5 (plugged on probe)
