Rohde & Schwarz RT-ZP03S Passive Probe, 300MHz, 10X, 12 pF, 400V, RT-Zxx Series
Couldn't load pickup availability
Ask an expert!
Rohde & Schwarz
Rohde & Schwarz is a world leader in test and measurement technology, delivering cutting-edge RF, wireless, and communications solutions trusted by engineers and research institutions globally.

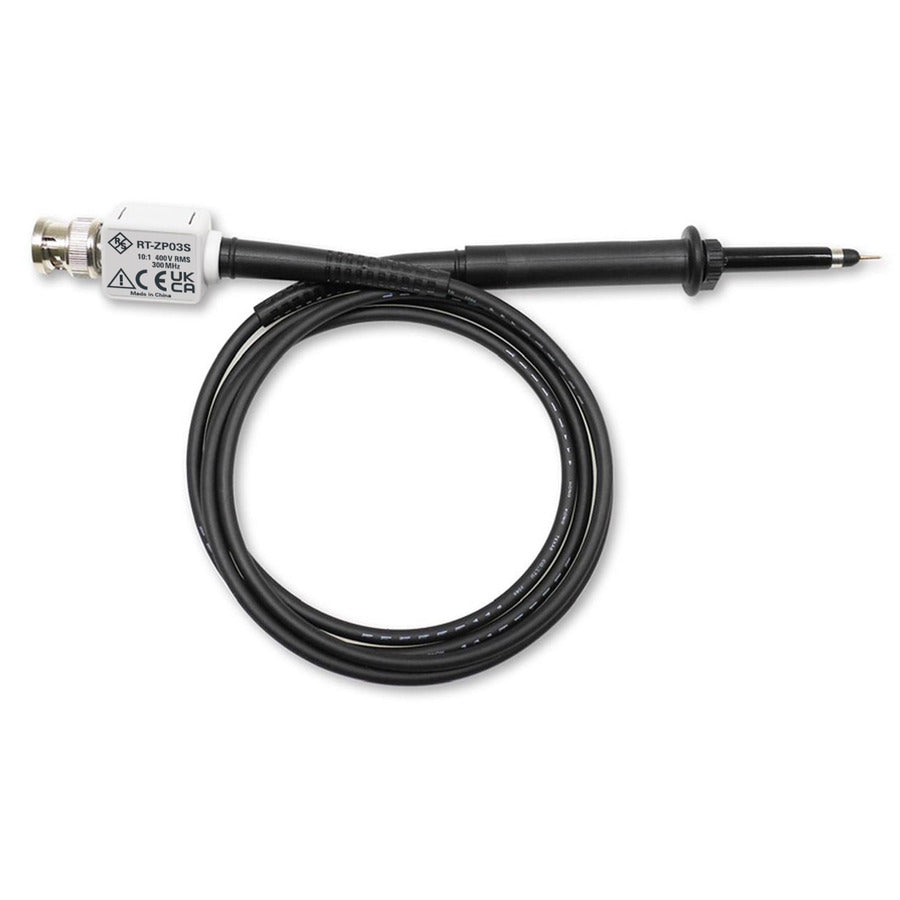

Rohde & Schwarz RT-ZP03S 10:1 300 MHz Passive Oscilloscope Probe
Features and Specifications- Bandwidth: 300 MHz
- Attenuation: 10:1
- Dynamic range: 400 V
- DC input resistance, Differential 10 MOhm
- DC input capacitance, Differential 12 pF
- Cable length 1.2m
Rohde & Schwarz RT-ZP03S is a 300 MHz Passive Voltage Probe. It has an attenuation of 10:1 and input capacitance of 12 pF. The Rohde & Schwarz passive probes are the all-rounders in the world of probes. They are low-cost, general purpose probing solutions for a broad range of applications. The BNC connector allows them to be used on almost any oscilloscope. Passive probes with readout pin enable. Rohde & Schwarz oscilloscopes to automatically detect the attenuation factor. A spring-loaded tip ensures good contact with the DUT.
*NOTE: The probe is not rated for any measurement category. Do not use the probes in circuits with measurement category II, III or IV

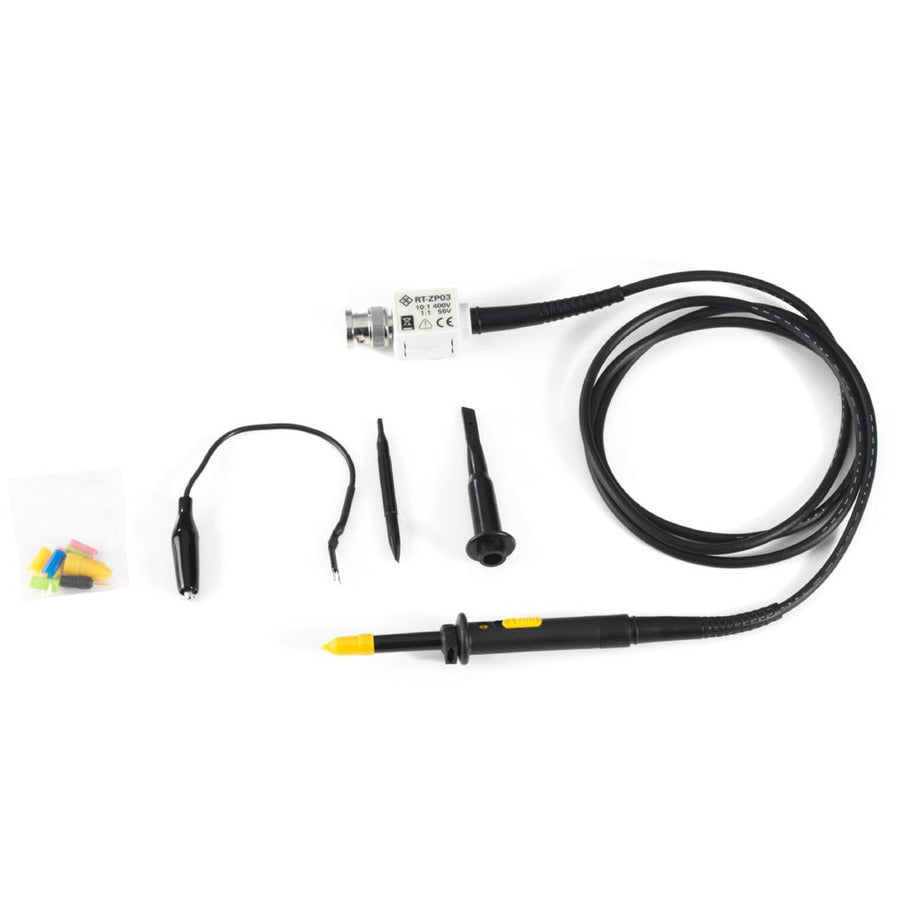

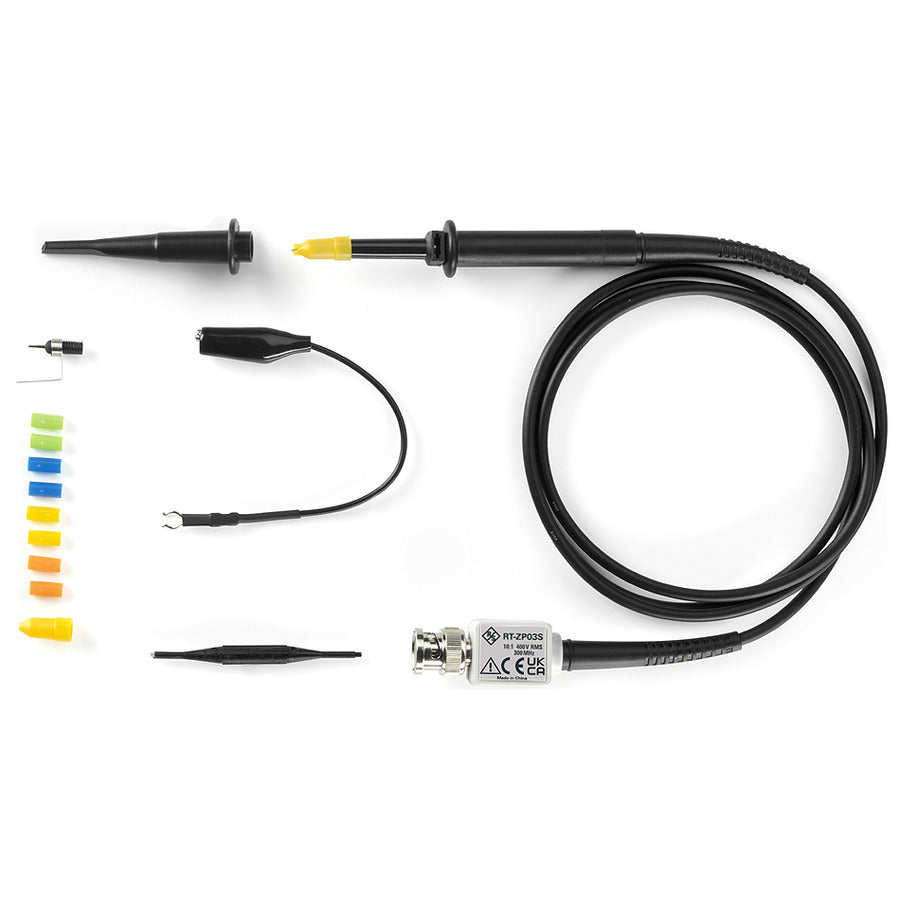

What's in the Box- RT-ZP03S Probe
- Adjustment Tool
- Coding clips (set) 2 × 4 colors
- 2x Signal pin
- Sprung hook 5 mm
- Ground spring
- Ground lead 14 cm
- Insulating cap
- Protective cap
- Operating manual
