Rohde & Schwarz RT-ZL03 Logic Probe, 8 CH, 300MHz, 12 pF, 400V, 100 Kohm, 1.2 m, RT-Zxx Series
Couldn't load pickup availability
Ask an expert!
Rohde & Schwarz
Rohde & Schwarz is a world leader in test and measurement technology, delivering cutting-edge RF, wireless, and communications solutions trusted by engineers and research institutions globally.

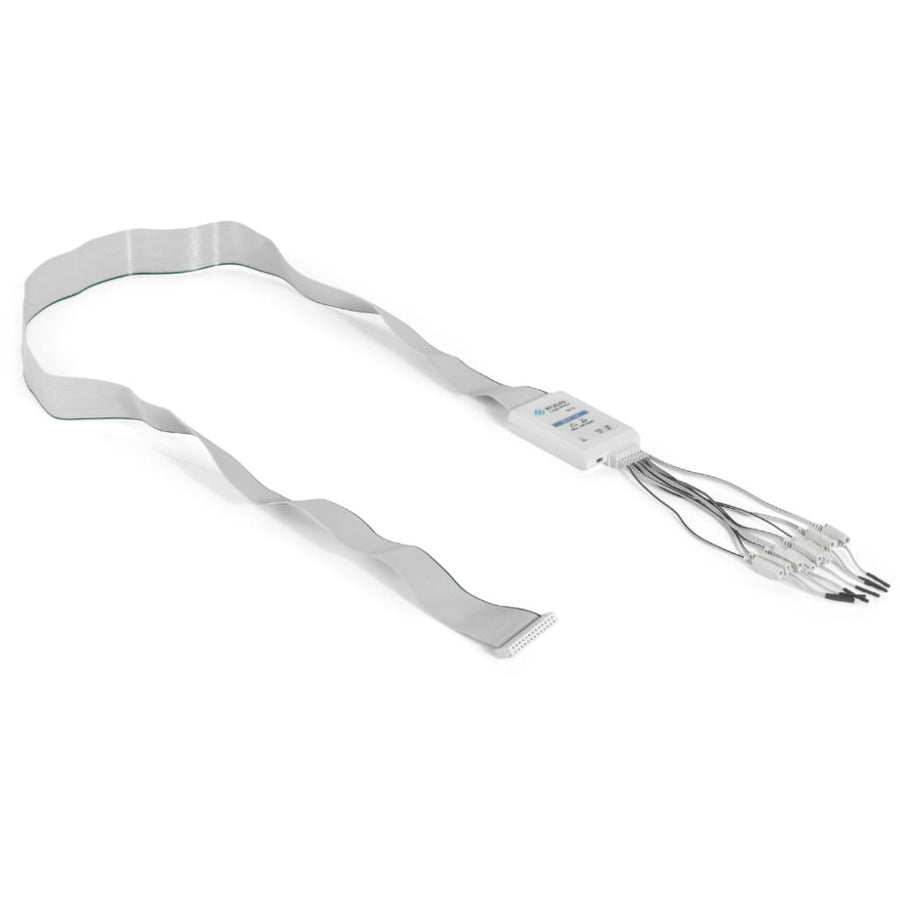

R&S RT-ZL03 Logic Probe
Features and Specifications
- Input channels: 8
- Max input frequency: 300 MHz (meas.)
- Input impedance (DC input resistance): 100 kilohm
± 2 % (meas.) - Input impedance (Input capacitance): 4 pF (meas.)
- Min input voltage swing: 500 mV (Vpp) (meas.)
- Max rated input voltage (Transient overvoltage):
± 40 V (Vp) - Use with: R&S RTC1000, R&S RTB2000
- Length of probe cable: approx. 1 m (39 in)
- Length of tip cables approx. 160 mm (6.3 in)
- Connector pin header: (26-pole)
The Rohde & Schwarz RT-ZL03 Logic Probe is specifically designed for the R&S RTB2000 series of oscilloscopes. It features 8 channels and a 300 MHz bandwidth, making it suitable for analyzing digital signals. With its pin header connection, this logic probe provides accurate measurements for debugging and troubleshooting digital circuits. If you're working with digital designs, the RT-ZL03 can be a valuable addition to your test equipment.
What's in the Box
- RT-ZL03 logic probe
- tip cable (8)
- mini clip (8)
- lead, 6 cm (8)
- lead, 10 cm (2)
- operating manual
