Rohde & Schwarz RT-ZISO01 Isolated Probing System, 100MHz, +/-3000V Input, 3m, ZISO Series

Rohde & Schwarz ZISO Series - RT-ZISO01 Isolated Probing System Package

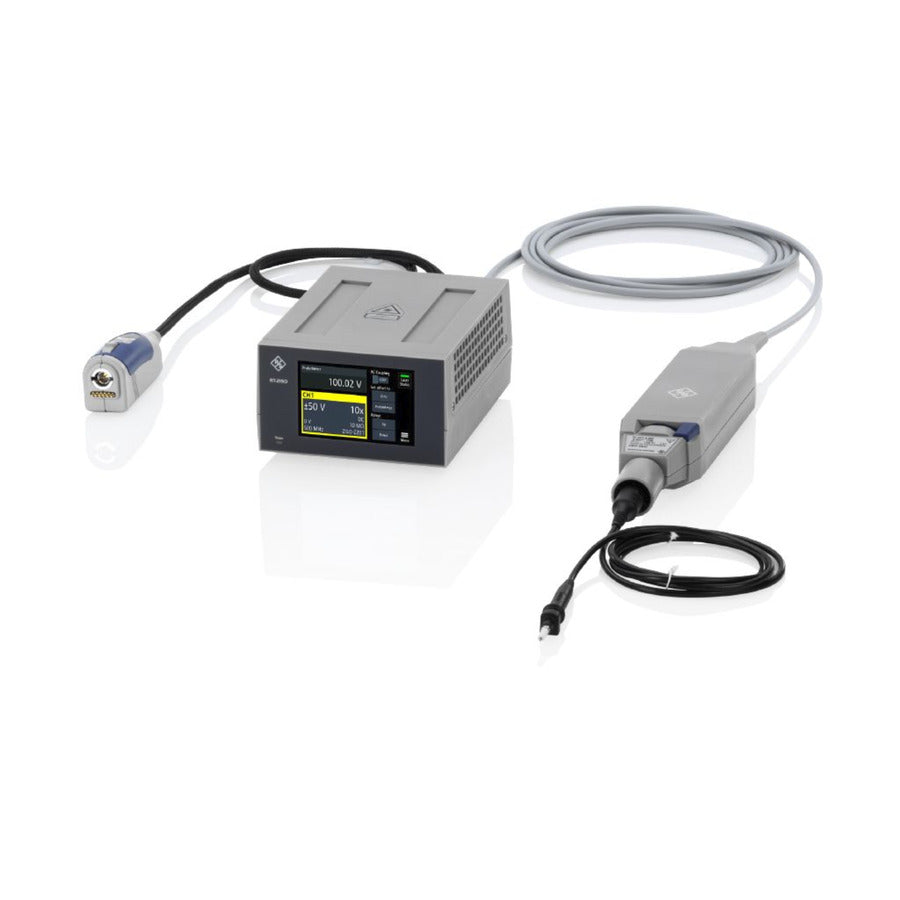

Isolated probing system for oscilloscopes

The R&S RT-ZISO isolated probing system sets new standards for electrical measurements with exceptional accuracy, sensitivity and speed. Innovative tools are vital to the development of next-generation power electronics, particularly those using wide bandgap materials such as SiC and GaN.

The RT-ZISO can tackle the challenge of measuring high voltage and fast switching environments. The power-over-fiber-optic architecture galvanically isolates the device under test (DUT) for the highest possible common mode rejection ratio (CMRR) at up to 1 GHz. The complete systems compensate thermal drifts and gain errors for the highest possible and uncompromising signal fidelity.

Key Facts (RT-ZISO01):

• 100 MHz Bandwidth (ZISO-B901 included)

• 3 m Cable length (ZISO-B403 Included)

• > 90 dB CMRR at 1 GHz

• +/- 3000 V differential input range and offset

• +/- 60 kV common mode range

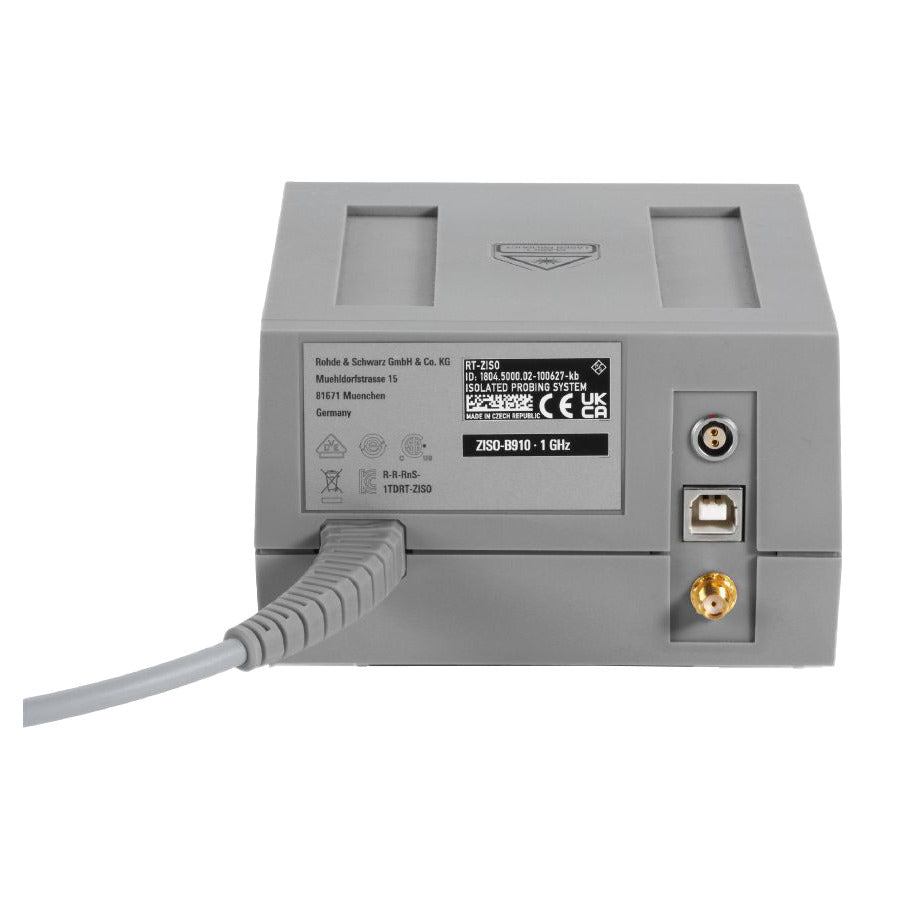

• Dual connectivity with a Rohde & Schwarz probe interface and SMA connector

• R&S ZISO-Z301 Probe Tip Included

For fast common mode probing challenges

The R&S RT-ZISO isolated probing system suppresses interference from fast common mode signals with optical isolation for a CMRR of > 90 dB at 1 GHz. This helps with high-side gate measurements on complementary switching circuits, especially wide bandgap devices.

• 1 GHz > 90 dB

• 500 MHz > 100 dB

• 100 MHz > 115 dB

• 1 MHz > 145 dB

Probe tips matter

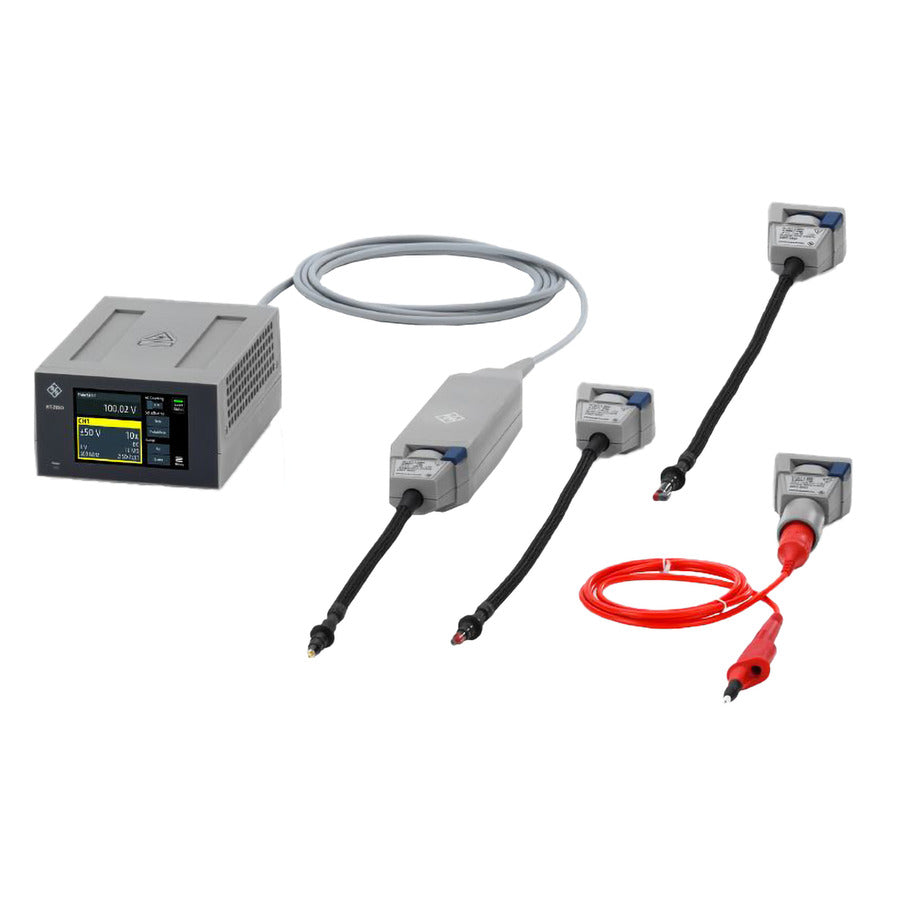

The R&S RT-ZISO comes in a variety of probe tips and the MMCX probe tip is the most important one for CMRR performance. Different connector types such as square pins and wide square pins are also supported with different attenuation ratios. The probe tip cables are long and formable for allow easy access to a probe point with minimal mechanical stress.

Hassle-free setup with Rohde & Schwarz oscilloscopes

Using the R&S RT-ZISO with the Rohde & Schwarz probe interface on our oscilloscopes creates a seamless experience. The instrument detects and sets up the probe tip information. Offset and range control can be easily configured on the instrument. Users can also easily use all Rohde & Schwarz oscilloscope functions and features such as fast acquisition and responsive FFT in their measurements.

Investment protection

R&S RT-ZISO isolated probe systems can connect to any oscilloscope with a BNC or SMA interface. Investment in instruments can be based on performance needs. The R&S RT-ZISO lets bandwidth be upgraded based on future needs.

Safely measure, securely operate

The R&S RT-ZISO complies with CAT III 1000V safety ratings. The material and mechanical structures comply with IEC/EN 61010-31 covering hand-held probe assemblies for electrical measurements.

• CAT III 1000V safety rating

• Safe attach on probe tips

• Class 1 laser safety

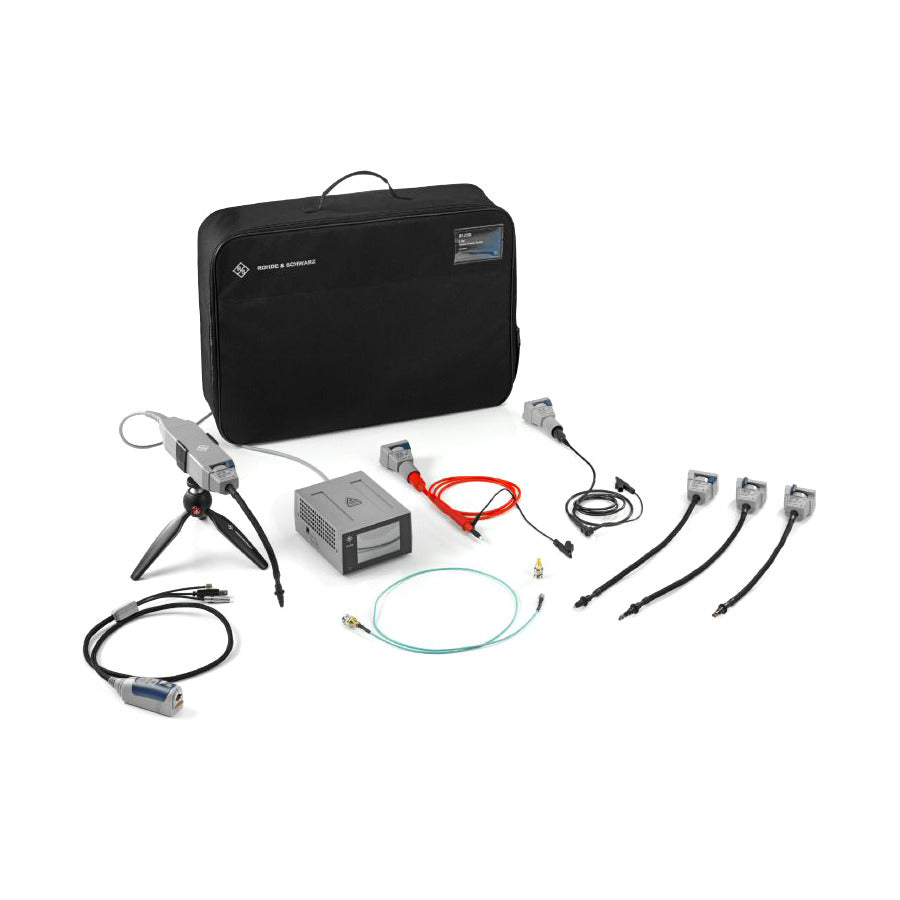

In The Box (RT-ZISO01):

• R&S RT-ZISO Isolated probing system

• R&S ZISO-B403 3 m Cable Length

• R&S ZISO-B901 100 MHz

• R&S ZISO-Z301 Probe tip

• Carrying case

• Operating manual

• Probe stand

• Interface cable

• SMA to BNC adapter

• External DC power supply for standalone operation
