Rohde & Schwarz RT-ZD20 Differential Broadband Probe, 1.5GHz, 10:1, Micro Button, RT-Zxx Series

€6.840,00 inc. VAT
Available
Order Today - Ready to Ship Soon
Request a Quote

Ask an expert!

Email + 49 ( 0 ) 8104 6675 - 0

Rohde & Schwarz

Rohde & Schwarz is a world leader in test and measurement technology, delivering cutting-edge RF, wireless, and communications solutions trusted by engineers and research institutions globally.

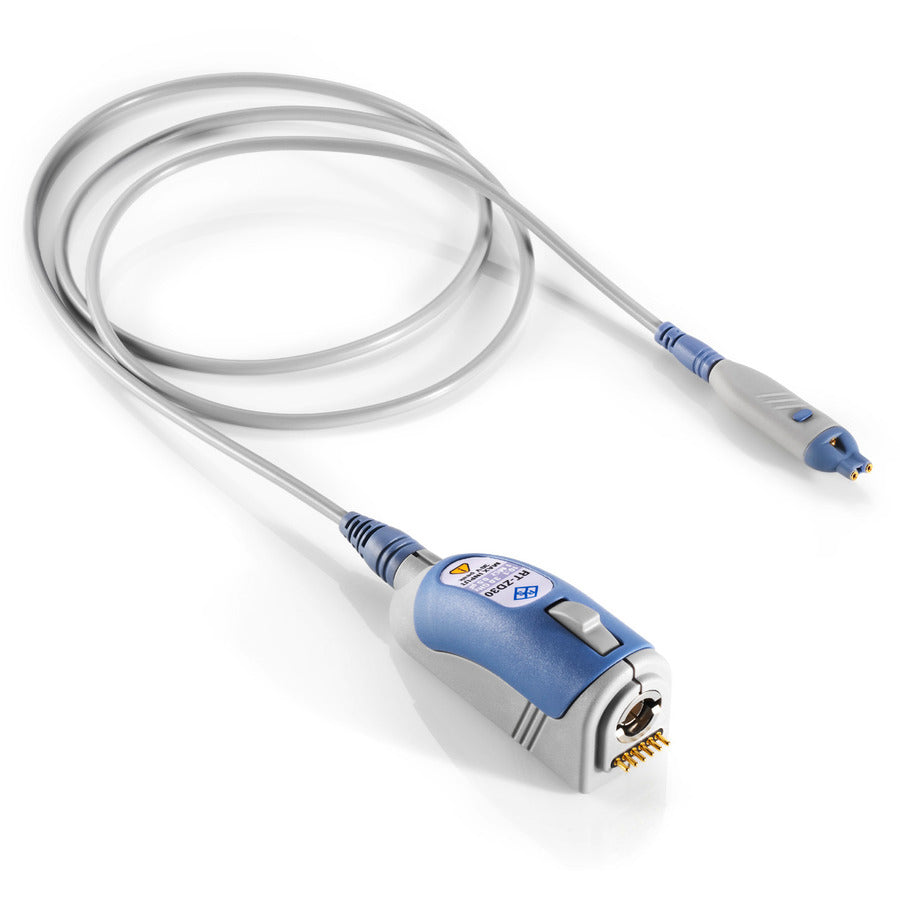

RT-ZD20 Differential Broadband Probe, 1.5 GHz

Features:

  • Attenuation: 10:1
  • Bandwidth: 1.5 GHz
  • Max. voltage: Between signal sockets: ±5 V (±5 V offset compensation), each signal socket to ground: ±8 V (±22 V offset compensation)
  • Input Impedance: 1 Megohm || 0.6 pF

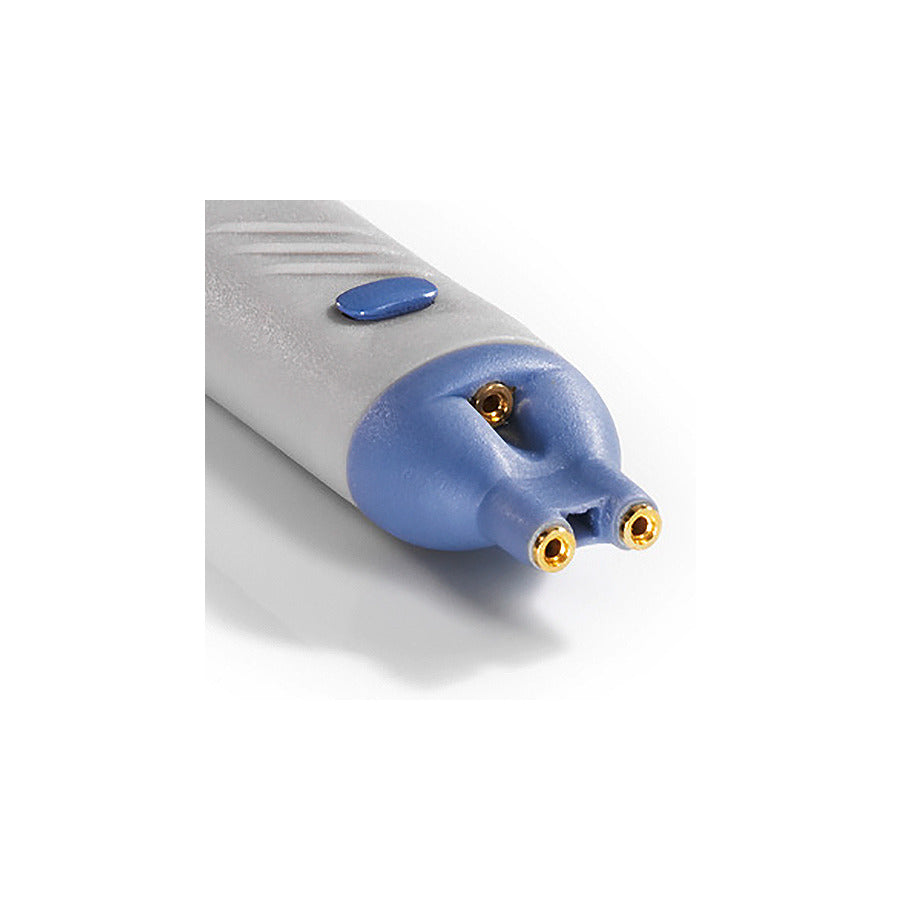

  • ProbeMeter and micro button for instrument control, R&S probe interface
  • 1.2 m Cable
  • Includes Accessories

Wide dynamic range expands the range of applications
The wide dynamic range of ±5 V with an additional offset compensation of ±5 V (differential mode) and ±22 V1) (common mode) of the R&S RT-ZD10/20/30/40 differential broadband probes make them universal measurement tools. High-speed, single-ended signals at DDR storage ports are just as easily measured as symmetrically fed RF signals or voltages without reference to ground in switching power supplies.

Accessories Supplied: (10) Signal pin, solder-in; (4) Signal pin, variable spacing; (1) Browser adapter; (2) Adapter, square pin; (1EA) Flex adapter, solder-in, 4cm/1.6in & 10cm/3.9in; (1EA) Flex adapter, square pin, 4cm/1.6in & 10cm/3.9in; (2) Lead, 6cm/2.4in; (1) Lead, 15cm/5.9in; (2) Mini clip; (2) Micro clip; (1) Marker band kit; (1) Carrying case with foam inlay.
