Rohde & Schwarz RT-ZC30 Current Probe, 5 A, 120MHz, 1 Mohm, BNC, 1.5 m (59 in), RT-Zxx Series

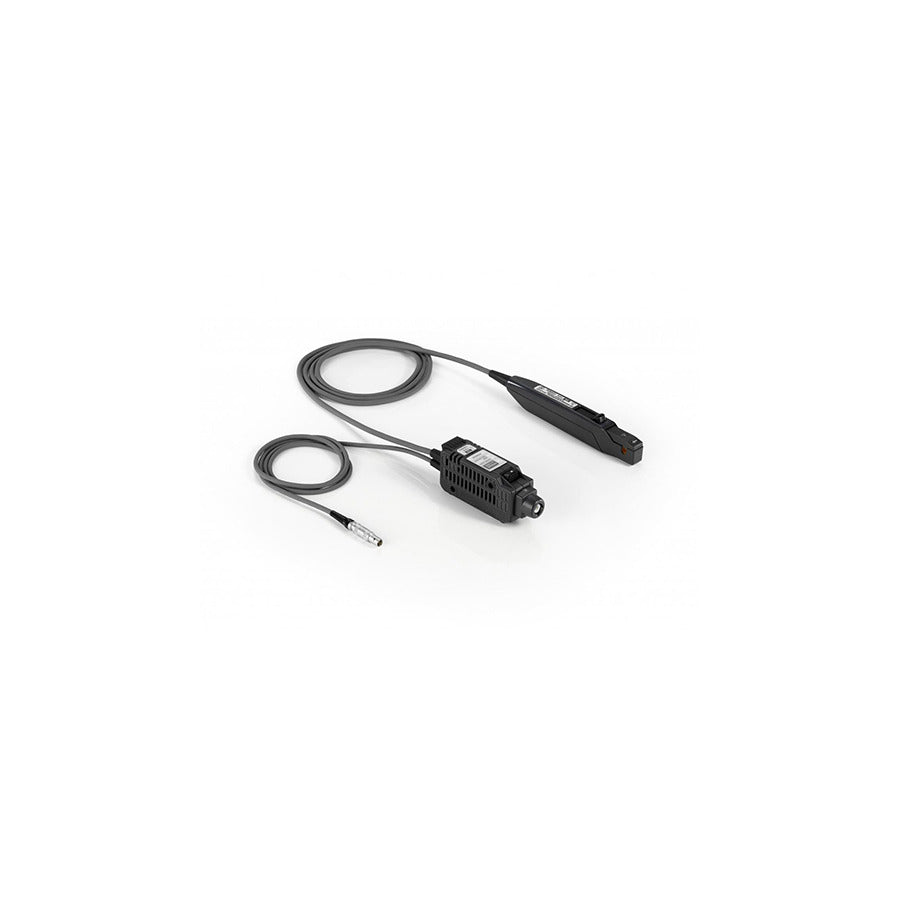

Rohde & Schwarz RT-ZC30 AC/DC Current Oscilloscope Probe

Features and Specifications

• The sensor head has a clamp design that makes it possible to easily observe current waveforms while current continues to flow through the conductor being measured.
• LED warnings indicate overload and unlocked sensor head.
• You can observe low-current waveforms at the high sensitivity of 1 V/A.
• Broadband frequency characteristics DC to 120 MHz.
• Core jaw diameter of 5 mm (0.2 in.)
• Demagnetization and automatic zero adjustment functions make it easy to get ready for measurement.
• Robust design and easy operation

The R>S RT-ZC30 is an AC/DC current probe. It allows the user to make current measurements from DC to 120 MHz. By clamping on the conductor to be measured, the current waveform is captured easily without interrupting the electric circuit.

What's in the Box

• Carrying Case
• Operating Manual
