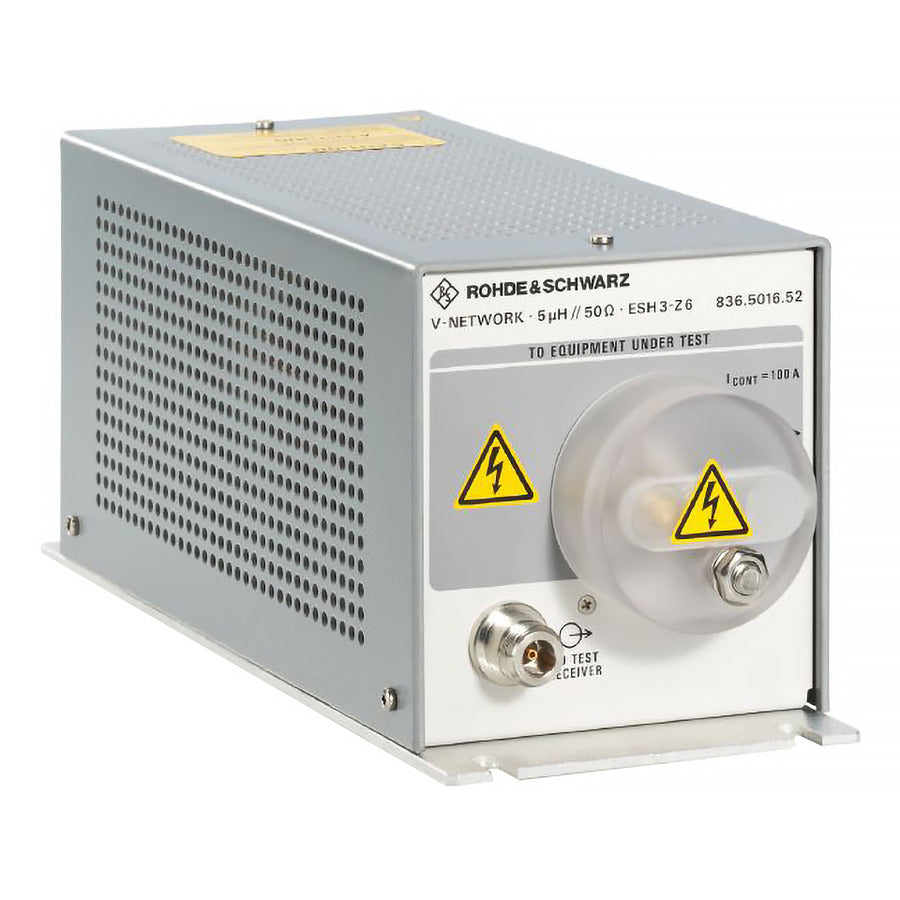

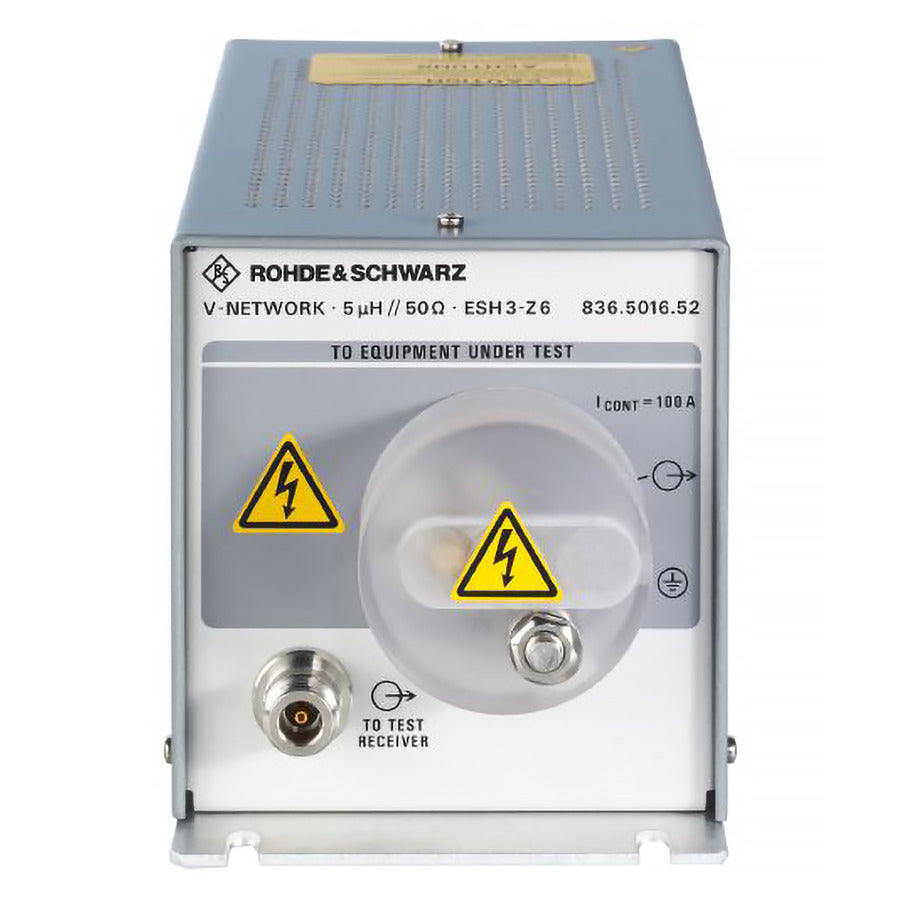

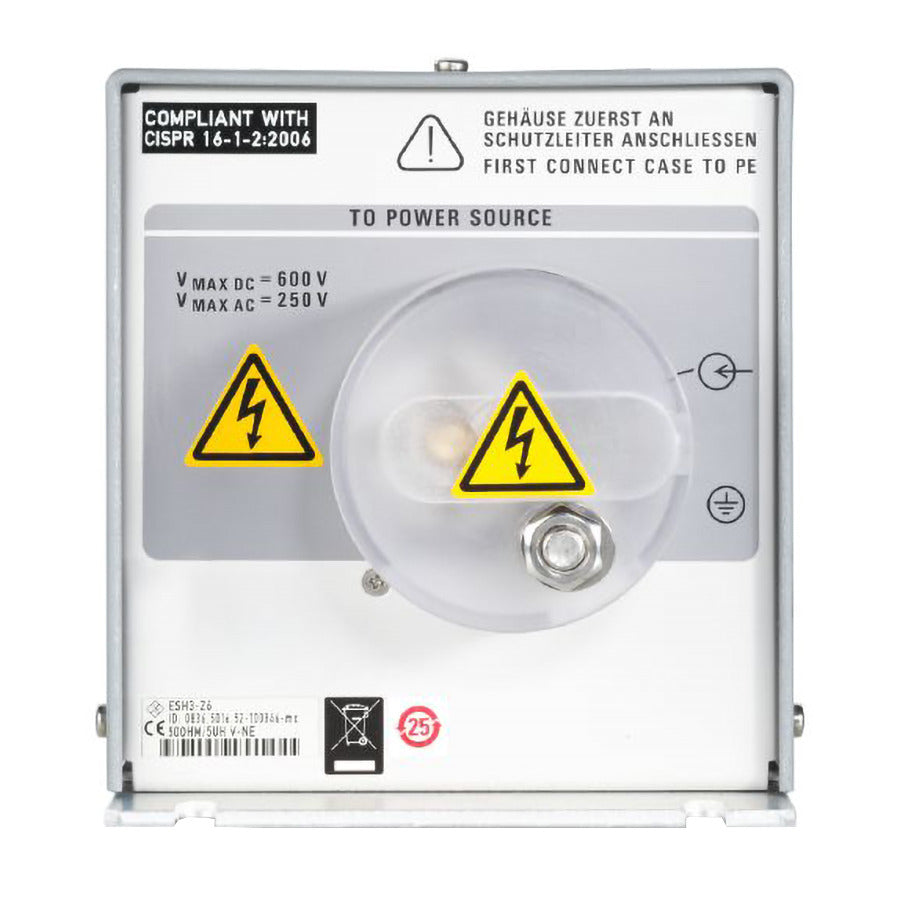

Rohde & Schwarz ESH3-Z6 1-line V-network, 5 H/50 Ohm, 0.1-200 MHz, 100 A Continuous, ESH3 Series
Couldn't load pickup availability
Ask an expert!
Rohde & Schwarz
Rohde & Schwarz is a world leader in test and measurement technology, delivering cutting-edge RF, wireless, and communications solutions trusted by engineers and research institutions globally.
For measuring disturbance voltage in low-impedance supply networks
Key facts:
- Frequency range 0.1 MHz to 200 MHz
- Power handling capacity up to 100 A, continuous current
- Simulated impedance 5 uH || 50 Ohms in line with CISPR 25
- Calibrated in line with CISPR 25:2016 (Edition 4)
For measuring disturbance voltage in low-impedance supply networks
The R &S ESH3-Z6 single-line V-network with a simulating impedance of 5 uH || 50 Ohms is in line with CISPR 25/EN 55025 as well as DEF-STAN 59-411 and DO-160 in the frequency range from 100 kHz to 200 MHz. In MIL-STD-461 it is an alternative to smaller platforms (power distribution less than 50 m), such as fighter aircraft. The R &S ESH3-Z6 is rated for up to 100 A of continuous current and can handle surges of up to 500 A for a maximum of 30 s.
