NetAlly AIRCHECK-G3C-TKT-X2 Aircheck G3 Pro Kit: Dual Band, iPerf Tester

NetAlly AIRCHECK-G3C-TKT-X2 Dual Band Aircheck G3 Pro Analyzer with External Antenna

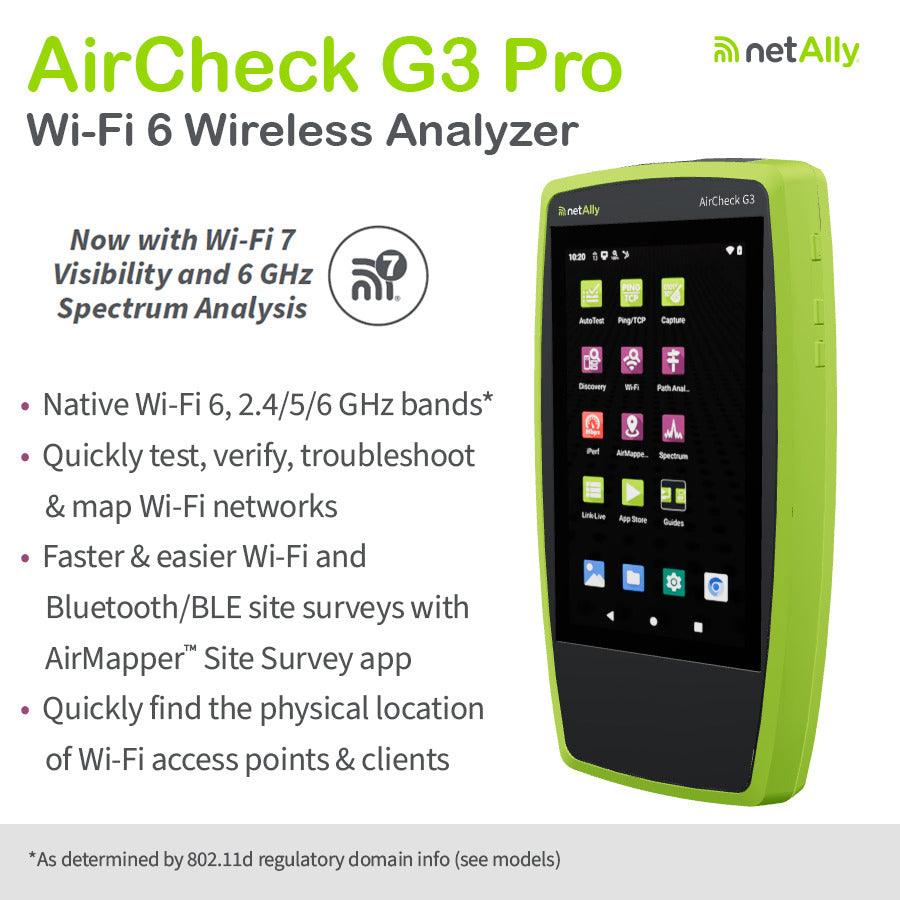

The AirCheck G3 Pro Wi-Fi 6 Wireless Analyzer features an intuitive interface that delivers practical insights, streamlining the processes of wireless deployment, troubleshooting, and validation. As the most affordable hardware-based site survey tool for Wi-Fi networks, the AirCheck G3 equips professionals at any experience level with precise, comprehensive data to assess and confirm Wi-Fi setups and modifications. It enables rapid resolution of connectivity and performance issues, accelerates trouble ticket closure, and ensures the network fulfills user expectations.

Features

• Quickly find the physical location of Wi-Fi access points and clients on the 2.4 GHz, 5 GHz, and 6 GHz bands. Supports spectrum analysis with the NXT-2000 Portable Spectrum Analyzer adapter.
  • Full Tri-Band (across entire 6GHz band)
  • Partial Tri-Band (only certain channels in the 6 GHz band)
  • Dual Band Only (where operation in the 6 GHz band is not allowed)

  *Wi-Fi regulatory compliance implementation of the 6 GHz spectrum varies by country.

• Test, verify, and troubleshoot technology upgrades, Wi-Fi networks, and Bluetooth/BLE devices with advanced testing apps and purpose-built hardware
• Validate Wi-Fi network performance for critical services and key end devices
• Wi-Fi and Bluetooth/BLE site surveys with AirMapper Site Survey
• Enables remote engineers to troubleshoot and collaborate with on-site technicians to solve problems at remote sites, saving time and cost of travel
• Seamlessly consolidate, analyze, manage field test data, and integrate with network management systems via Link-Live collaboration, reporting, and analysis platform
• Automatically discover and instantly generate a topology map of your wired and Wi-Fi networks using Link-Live

Next Generation AutoTest

The AirCheck G3 provides AutoTest profiles with best practice pass/fail thresholds for quick assessment of Wi-Fi network configurations and services. Multiple profiles can be created for complex Wi-Fi networks. With profile groups, engineers can effectively transfer their network configuration and test knowledge to technicians, saving training time and effort.

AutoTest runs a series of tests by connecting to a selected wireless network (associate to an AP), providing a status indication of Success, Warning, or Fail. This comprehensive test validates not only the Wi-Fi connection, but also critical network services.

• Wi-Fi Link Test
• Channel Test
• AP Test
• DHCP, DNS, Gateway Results
• Services Tests
• Troubleshooting Tools

Flexible Platform Addresses Multiple Technologies

• Built-in Bluetooth v5/BLE radio for peripheral connectivity and conducting BT/BLE site surveys
• USB interfaces provide connectivity for accessories and other devices

Native 2x2 Wi-Fi 6/6E radio that supports:

• 802.11a/b/g/n/ac/ax Wi-Fi network connectivity
• Analysis of SSIDs, BSSIDs, channel, client devices, and interference sources

1x1 Wi-Fi 5 radio that supports:

• Remote control connection and testing
• Network discovery and topology mapping

Native 6 GHz Support and Wi-Fi 7 Visibility

• Validate Wi-Fi network performance and utilization using a native 802.11ax radio
• Gain visibility into all Wi-Fi devices, on the 2.4 GHz, 5 GHz, and 6 GHz bands*
• Enables packet captures in all 3 bands
• Diagnose new Wi-Fi mechanisms of Reduced Neighbor Reports, Preferred Scanning Channels, and multi-BSSID
• Authenticate using the latest security standard of WPA3 and Enhanced Open

*Wi-Fi regulatory compliance implementation of the 6 GHz spectrum varies by country. AirCheck models are available in three versions.

AirMapper Site Survey – Now with Wi-Fi 7 Visibility

The AirMapper app enables AirCheck G3 users to efficiently collect Wi-Fi and Bluetooth/BLE measurements, generating heat maps of key performance metrics within the Link-Live platform for collaboration, reporting, and analysis. Ideal for site surveys, deployment validation, and performance checks, it simplifies the process. Additionally, Link-Live enhances productivity for remote survey teams by allowing a team lead to create and calibrate projects, then seamlessly distribute them to remote analyzers.

• Faster and easier Wi-Fi and Bluetooth/BLE site surveys with a rugged handheld analyzer
• Automatically identify common Wi-Fi network problems using InSites
• intelligence analysis in Link-Live
• Collaborate: easily visualize and share survey data through Link-Live
• Simultaneous passive and active Wi-Fi surveys to gather critical site
• metrics and validate client experience and roaming with one survey
• Export Wi-Fi survey data to AirMagnet Survey PRO for more advanced
• analysis, planning and reporting

Spectrum Analysis and Interference

Identifying the source of Wi-Fi interference can be challenging without the right tools. By utilizing the optional NXT-2000 Portable Spectrum Analyzer along with either an internal omni-directional or external directional antenna, Aircheck provides insight into RF interference across the 2.4 GHz, 5 GHz, and 6 GHz bands, helping assess its effect on network performance. This analysis is supported by key graphs and charts for a comprehensive view.

• Real-Time FFT: A live RF view including current, average and max readings
• Frequency Spectrum: Displays heat mapped signal density to identify recurring energy
• Waterfall: Shows energy over time to identify the periodic nature of the RF environment

NOTE: NXT-2000 is not supported by AirCheck G3 testers manufactured before August 2024.

Wired + Wi-Fi Network Discovery, Mapping, Analysis, and Security Audits

Instantly see what is on the network and where it is connected. Quickly investigate and locate “suspect” devices and identify problems associated with device misconfigurations.

• Discovers network devices across multiple VLANs and Wi-Fi SSIDs
• Discovery Difference analysis in Link-Live exposes possible security risks in the network infrastructure by showing changes in connected devices
• Powerful filter and sort function with automatic problem detection identifies issues such as:
  • - Duplicate IPs, congested switch ports, and oversubscribed Wi-Fi channels/SSIDs
  • - Security issues, such as unknown switches, access points with open authentication
• Path Analysis shows the switch/router path to any connected device
• Batch authorization workflow makes it easy to identify known vs. unknown devices, enabling “who’s on my network” auditing.

Verify Complex Wireless Networks

Test automation speeds and simplifies validation and troubleshooting - so more people can solve more problems, faster.

• Out-of-the-box AutoTest profiles for Wi-Fi networks that can be customized for your deployment
• Execute multiple AutoTest profiles that shorten test time to verify multiple WiFi SSIDs
• Define and assign groups of targets to AutoTest profiles to verify performance using ping, TCP Connect, Web, or FTP

Wi-Fi Performance Test and Packet Capture

Verify Wi-Fi performance, and easily capture packets for detailed application analysis.

• Simultaneously generate and measure IP-based traffic through the use of two WiFi radios Supports popular iPerf network throughput testing for Wi-Fi networks
• Capture wireless traffic to PCAP files for escalation evidence or analysis, with simple but powerful - filtering and slicing controls.

Simplified Collaboration, Automated Reporting

Collaborate with staff across your organization with centralized visibility of distributed tests, speeding resolution of remote site issues.

• Link-Live collaboration, reporting, and analysis platform (cloud-based or
• private/on-premise) stores test result and site data upload for automated reporting and documentation
• Simplifies report generation for network deployment documentation
• Attach screenshots and user comments to each result, adding context for future changes and troubleshooting
• Available API enables seamless data integration between Link-Live and trouble-ticket or network management systems

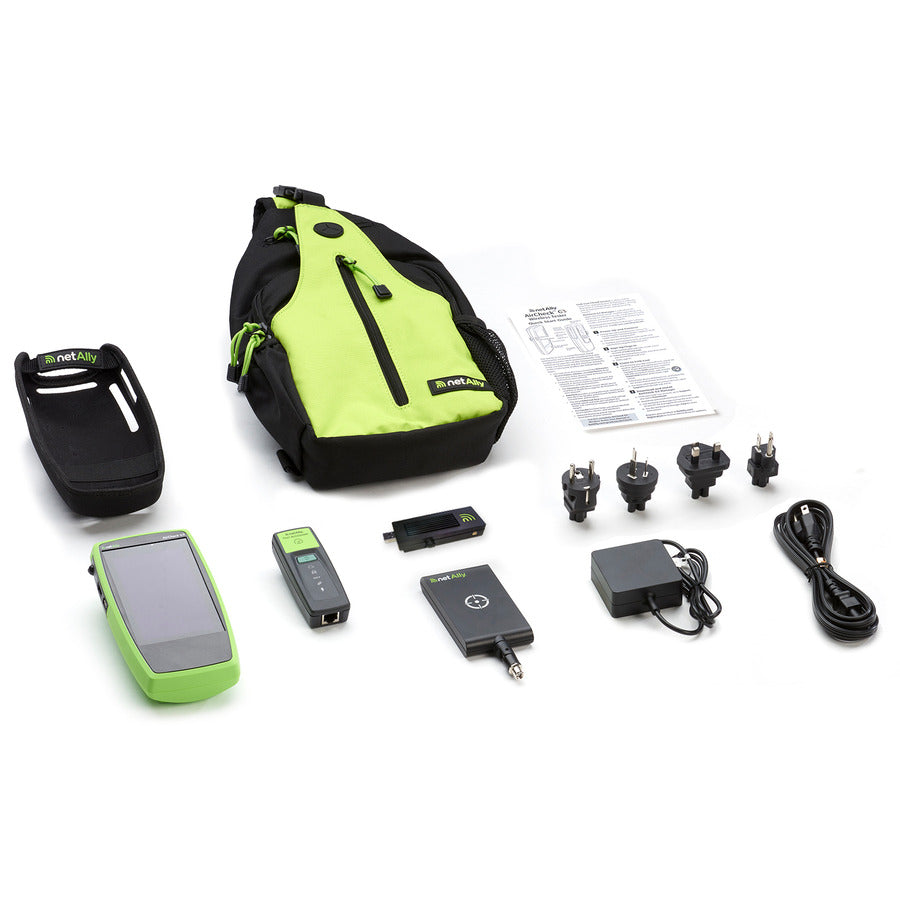

What's in the Box

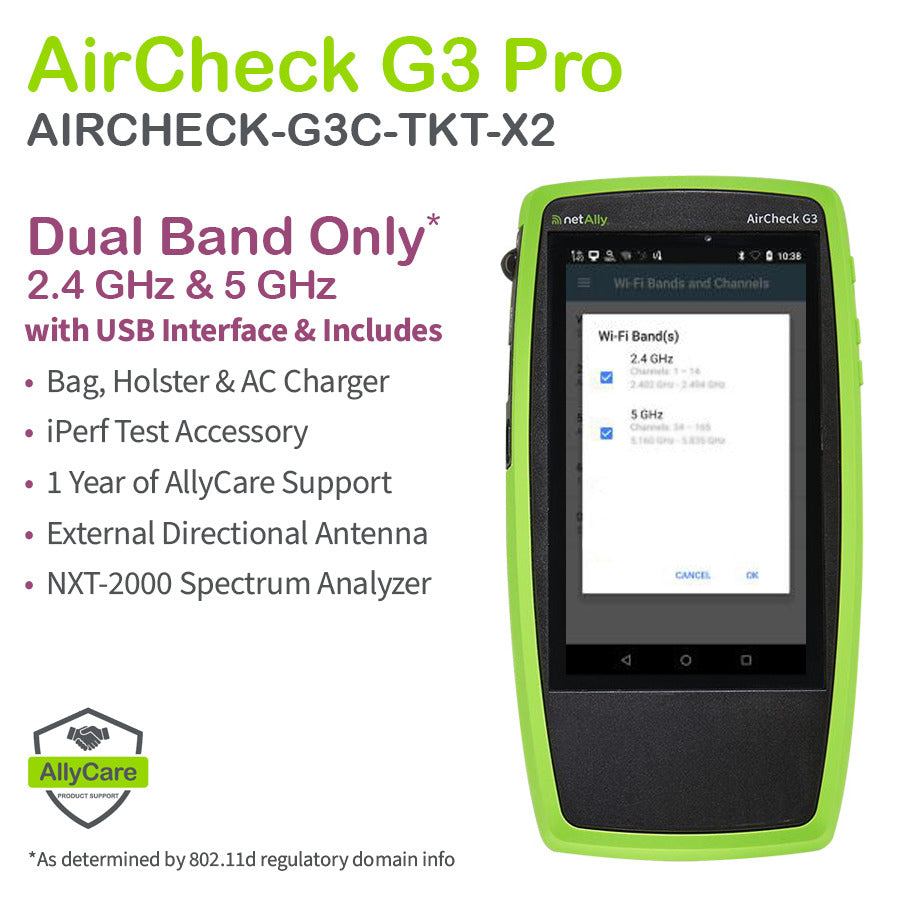

AIRCHECK-G3C-TKT-X2 Dual Band Includes:

• AIRCHECK-G3-PRO mainframe
• One-year of AllyCare support (AIRCHECK-G3-PRO-1YS)
• Shoulder sling bag
• AC charger
• Quick Start Guide
• External directional antenna
• Holster
• NXT-2000 Spectrum Analyzer
• Test Accessory (Pocket iPerf)
