Lascar Electronics DPM 970 Digital Panel Meter, LCD, 3.5 Digits, 500V, Full Scale, DPM Series
Couldn't load pickup availability
Ask an expert!
Lascar Electronics
Lascar Electronics develops data loggers, digital displays, and sensors for monitoring temperature, humidity, and voltage in industrial and commercial settings.
- 19mm (0.75“) Digit Height
- Screw Terminal Connections
- Digital Hold
- 500V a.c. (2kV ) Full Scale Reading
- Measures Voltage and Current
- LED Backlighting

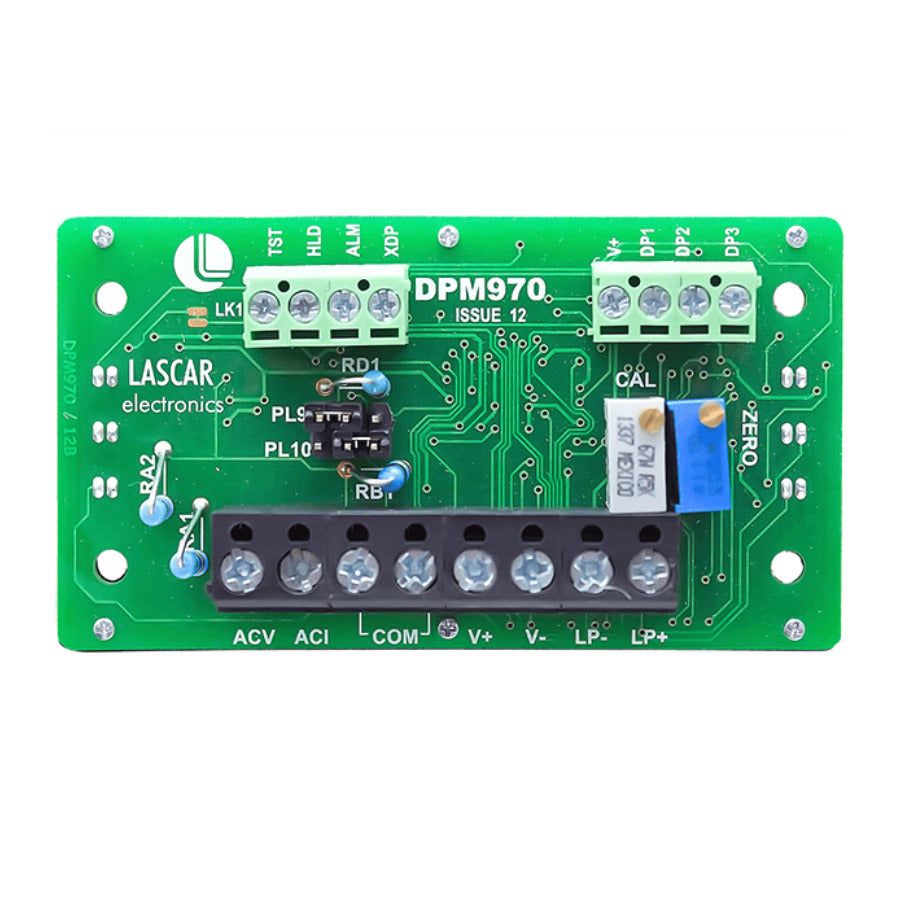

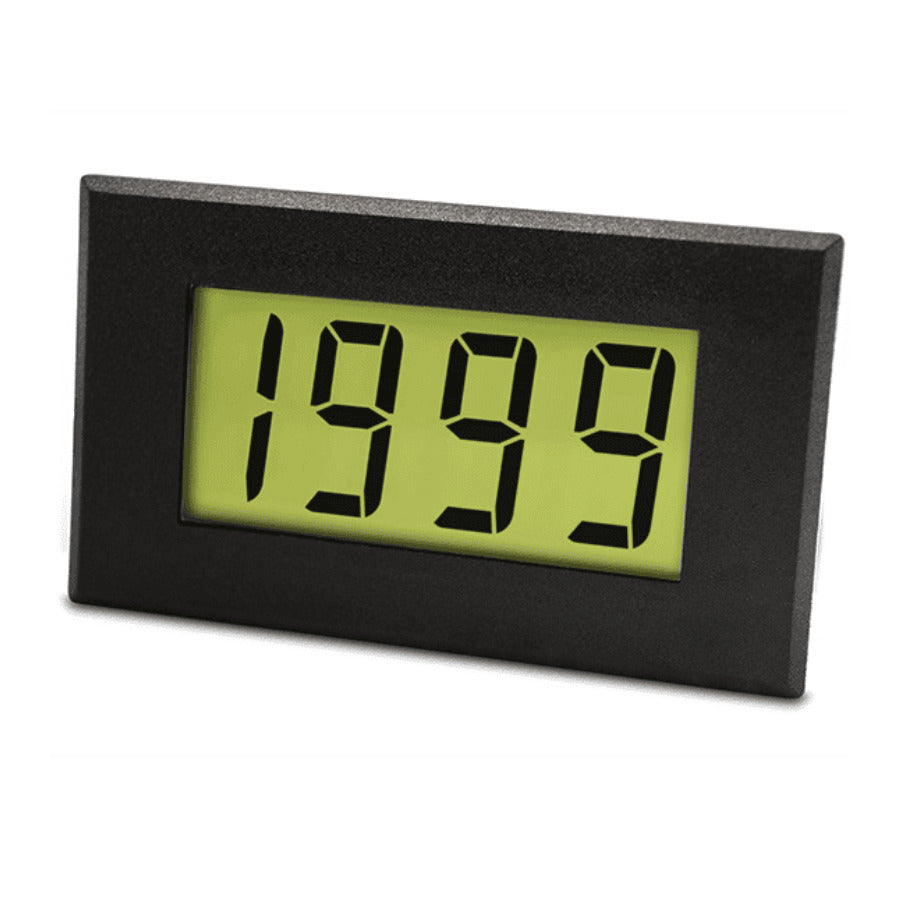

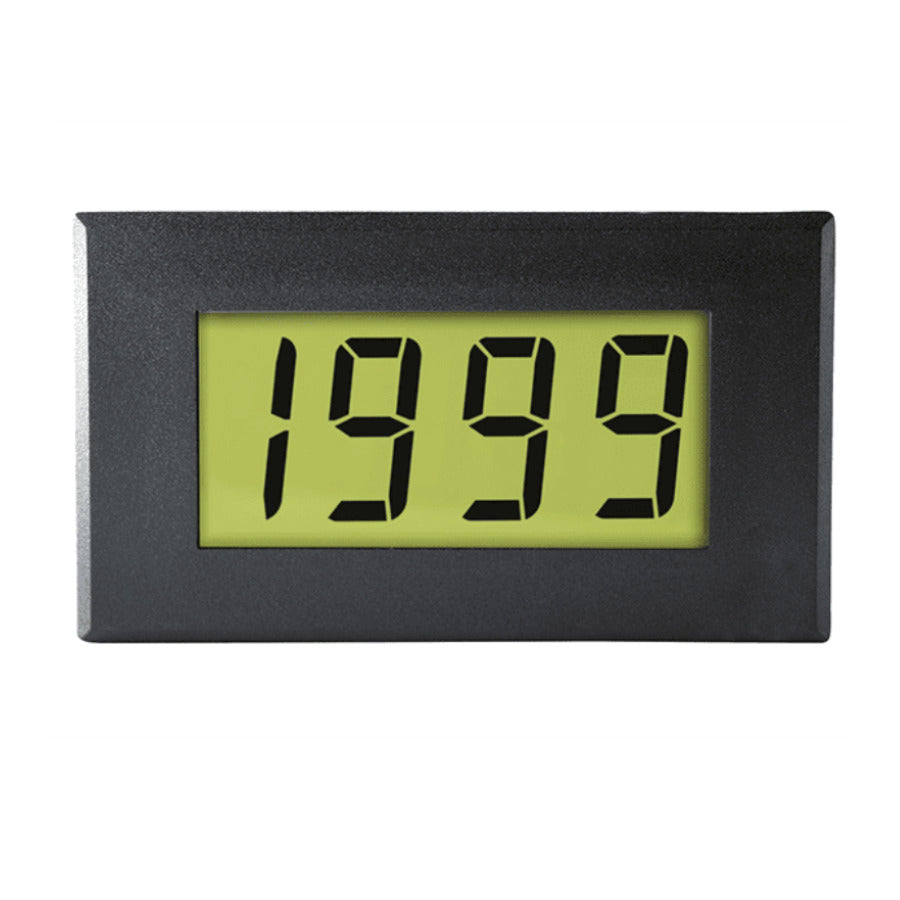

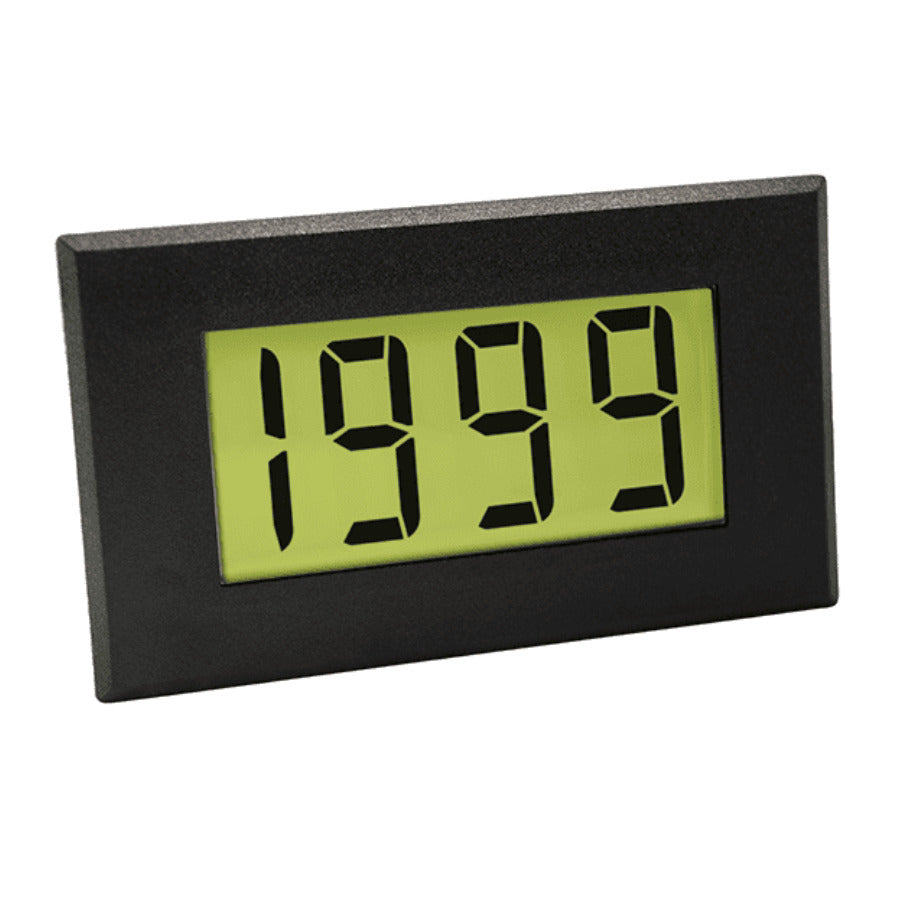

A 3 ½ digit LCD panel meter, featuring 19mm (0.75“) digit height and LED backlighting, the DPM 970 is a true RMS voltage and current meter with 500V a.c. (2kV ) and 2mA full scale readings as standard. By changing the value of scaling resistors or adding a shunt, this module will measure most a.c. voltages and currents. The DPM 970 features digital hold function which freezes the last displayed reading. Calibration is achieved via two multi-turn potentiometers for offset and scale. Connection to the meter is via screw terminals. The module is housed in a robust carrier which can be bolted in place or panel mounted using the bezel, window and clips provided.
