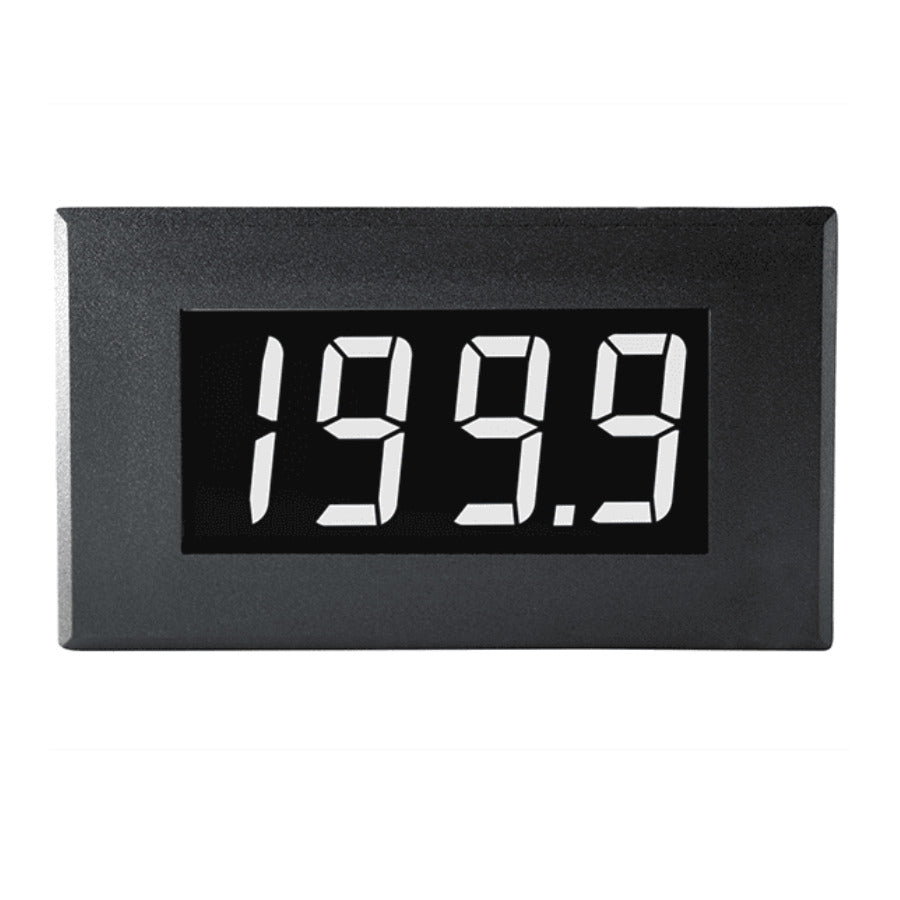

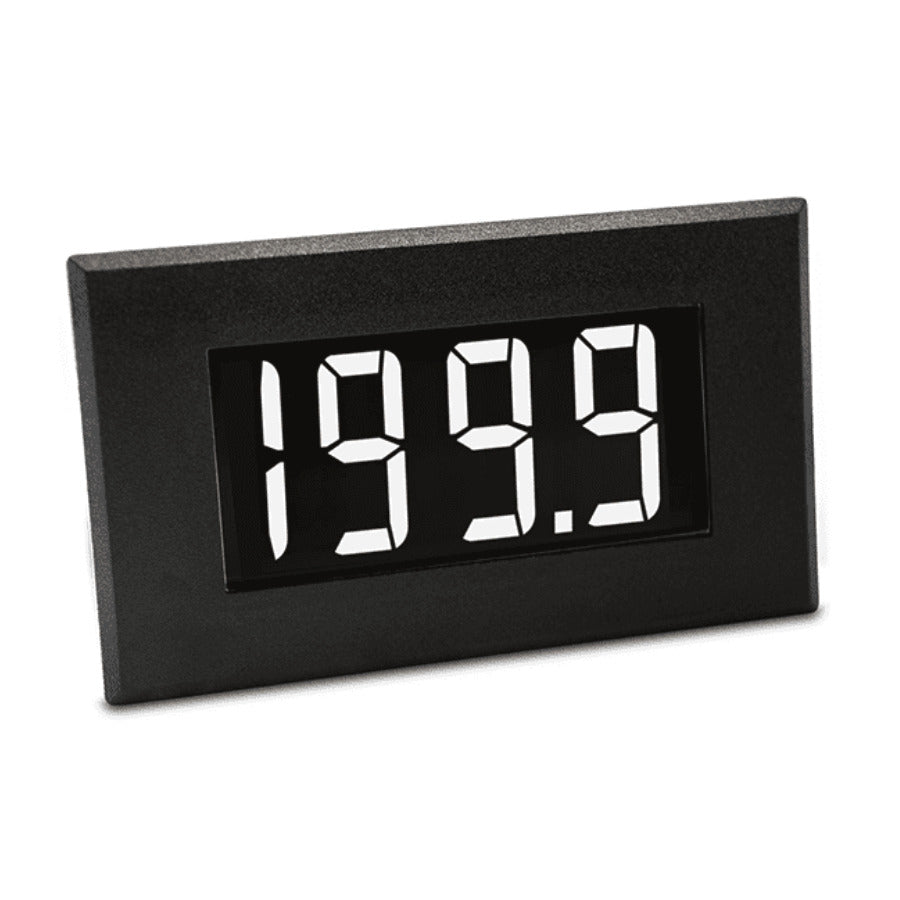

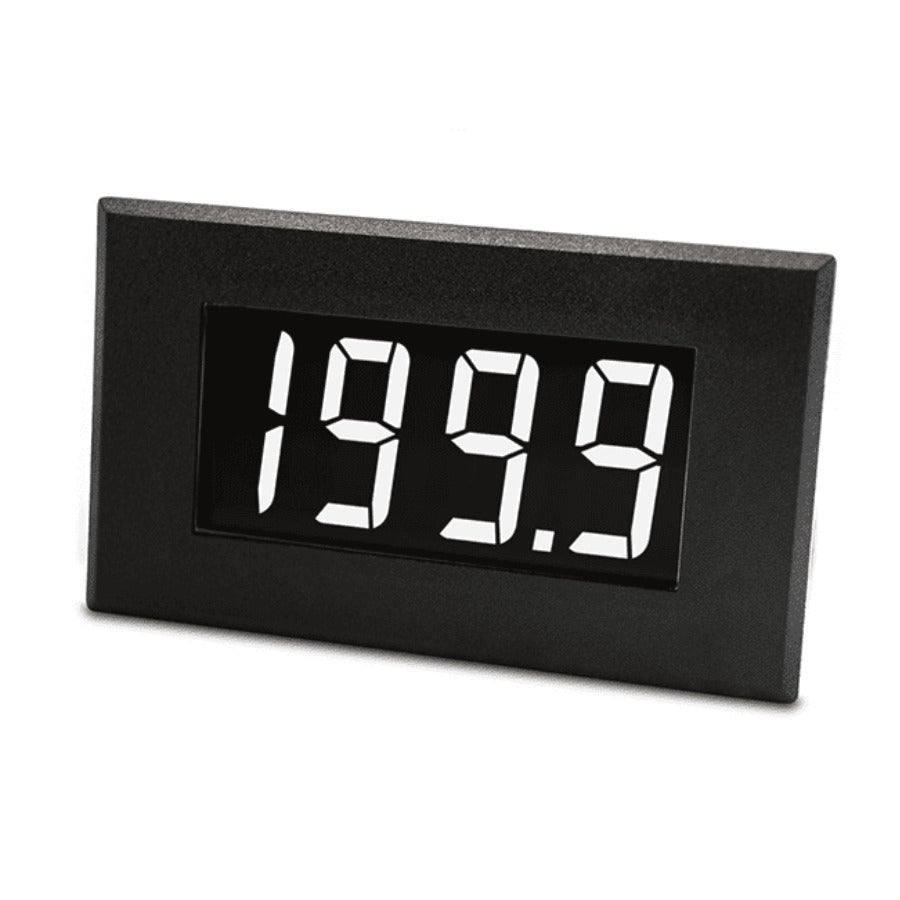

Lascar Electronics DPM 950S-EB-W Digital Panel Meter, LCD, 3.5 Digits, Single Rail, DPM Series

€75,02 inc. VAT
Available
Order Today - Ready to Ship Soon
Request a Quote

Ask an expert!

Email + 49 ( 0 ) 8104 6675 - 0

Lascar Electronics

Lascar Electronics develops data loggers, digital displays, and sensors for monitoring temperature, humidity, and voltage in industrial and commercial settings.

Enhanced Black, negative mode LCD voltmeter with white backlighting. Completely Assembled & Tested. RoHS Compliant

  • 19mm (0.75“) Digit Height
  • IDC Interface
  • Auto-zero
  • Auto-polarity
  • 200mV d.c. Full Scale Reading (F.S.R.)
  • Enhanced black LCD with LED Backlight
  • Single Rail 5V d.c. Supply
  • Alarm Annunciator

The DPM 950S-EB-W features an enhanced black LCD and 200mV d.c. measurement range with auto-zero and auto-polarity. Decimal points are user selectable. The DPM 950S-EB-W features a negative rail generator which enables the meter to measure a signal referenced to its own power supply GND. Enhanced contrast negative mode LCD with white LED backlighting ensures excellent readability under all light conditions. The meter is housed in a robust carrier, which can be bolted in place or panel mounted using the bezel, window and clip provided.
