Lascar Electronics DPM 950S Digital Panel Meter, LCD, 3.5 Digits, 200mV, Single Rail, DPM Series

€77,87 inc. VAT
Available
Order Today - Ready to Ship Soon
Request a Quote

Ask an expert!

Email + 49 ( 0 ) 8104 6675 - 0

Lascar Electronics

Lascar Electronics develops data loggers, digital displays, and sensors for monitoring temperature, humidity, and voltage in industrial and commercial settings.

Large 200mV LCD Single Rail Voltmeter with LED Backlighting. Completely Assembled & Tested.

  • Large 200mV LCD Single Rail Voltmeter
  • 19mm Digit Height
  • IDC Interface
  • Auto-zero
  • 200mV d.c Full Sale Readings
  • LED Backlight

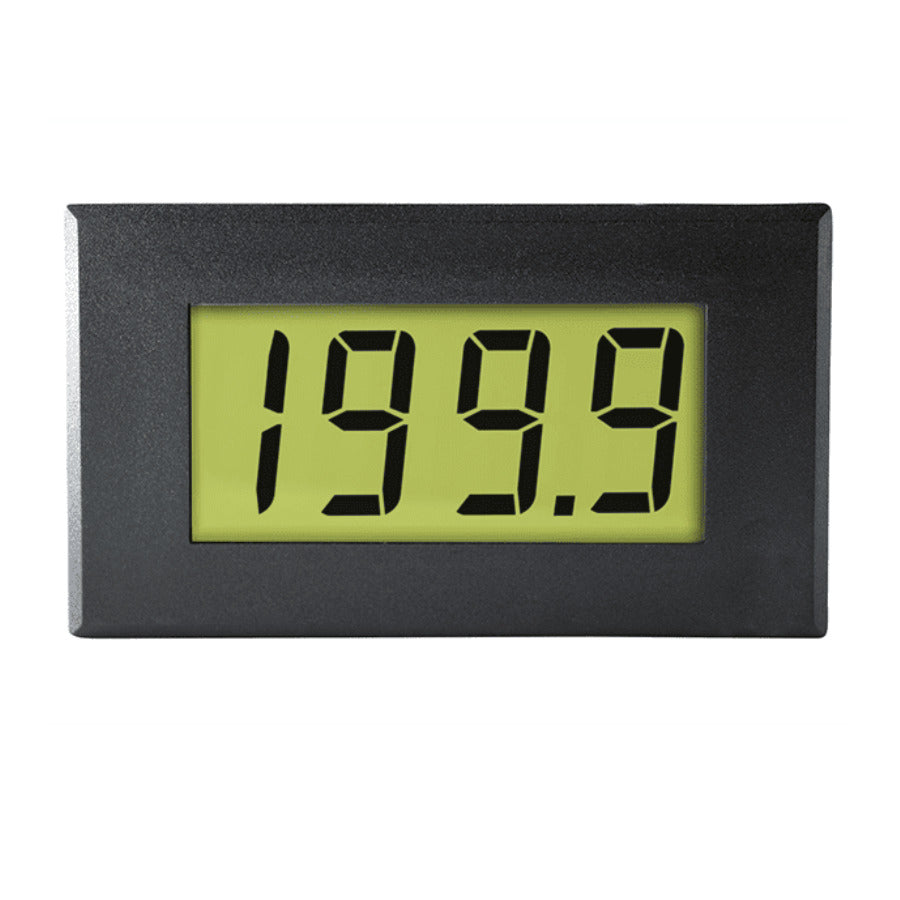

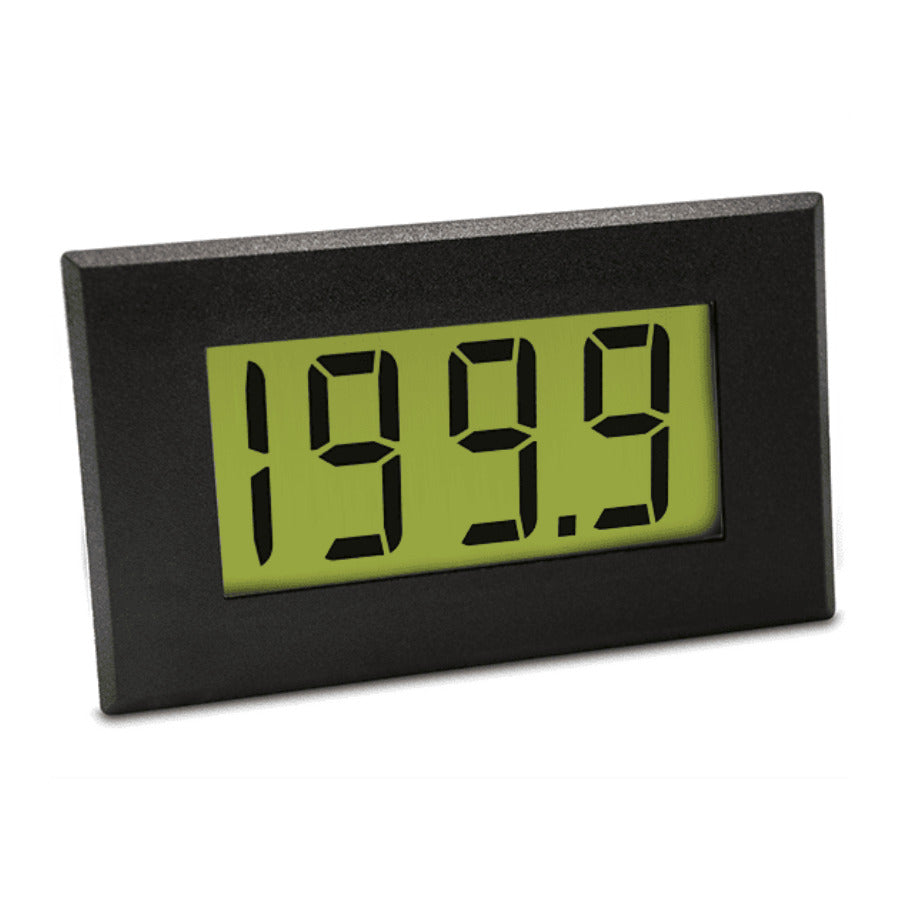

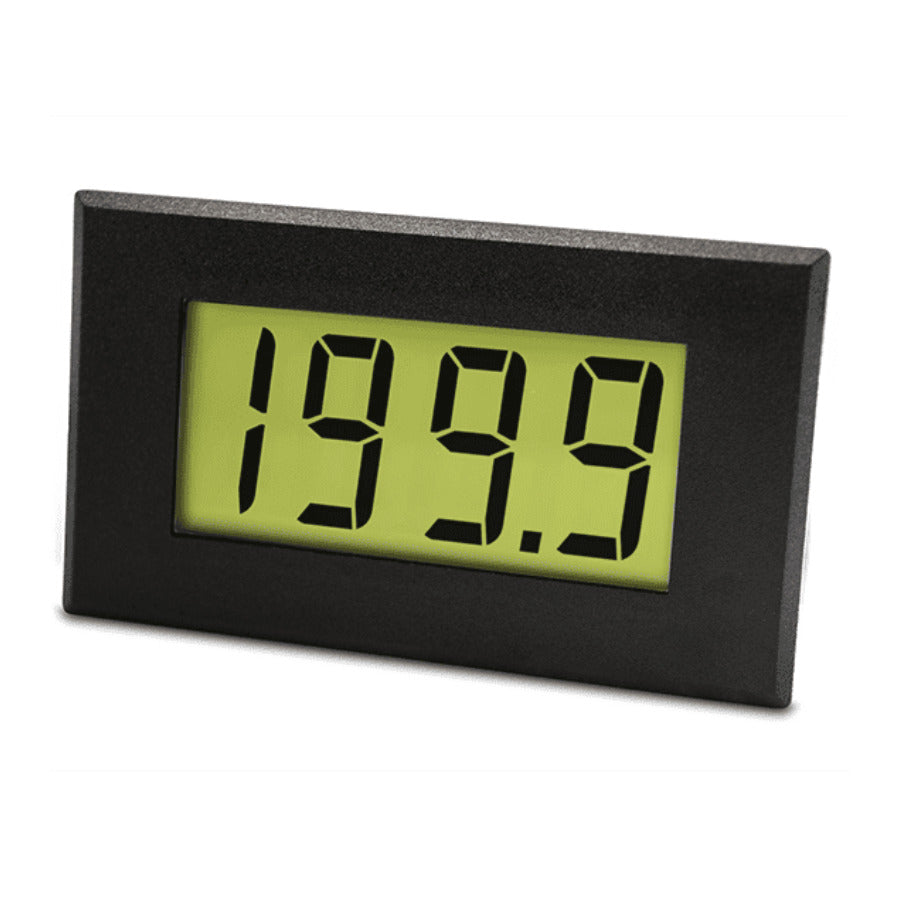

The large panel meter features a 3½ digit LCD with 19mm (0.75″) digit height and LED backlighting. With 200mV d.c. full scale reading, auto-zero and auto-polarity, this meter plugs directly into a 16-way IDC socket and can be fitted into a panel via the bezel, window and clips provided. The DPM 950S is a low cost, popular part, normally stocked in high quantity and suitable for new designs.
