SKU: 23656.1
|
MPN: Z3003
NEW
Hioki Z3003 Multiplexer
Regular price
€957,60
inc. VAT
Couldn't load pickup availability
Ask an expert!
Hioki
Hioki is a Japanese manufacturer specialising in high-precision electrical measuring instruments for current, power, and energy analysis across research and production environments.

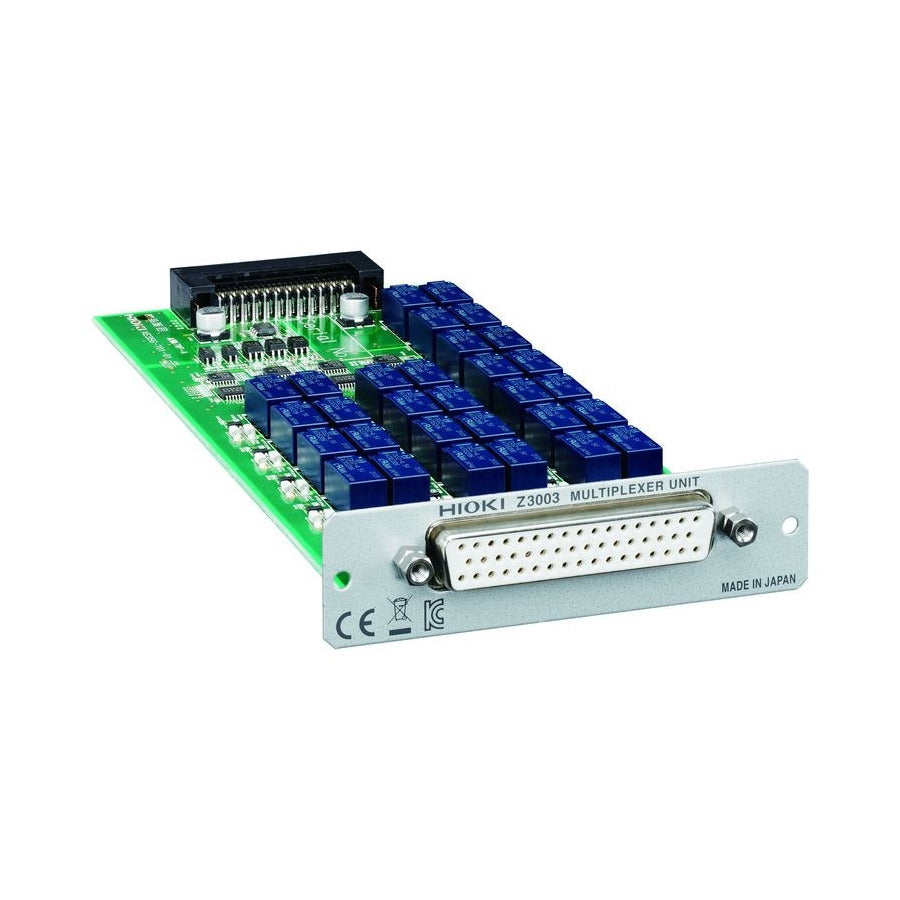

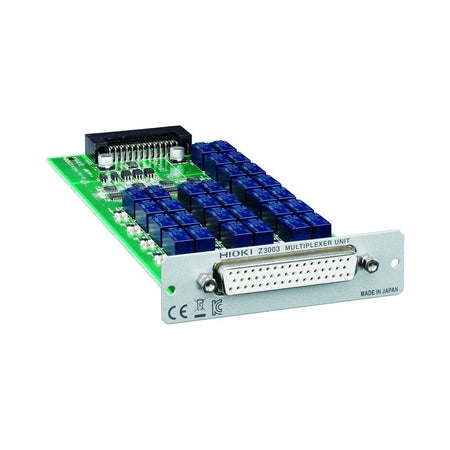

Multiplexer Unit Z3003
Features:
- Maximum Allowable Voltage: 33 V RMS and 46.7 V peak or 70 V DC*
- Maximum Allowable Power: 30W (DC), (Resistance load)
- Contact Type: Mechanical relay
- 4-wire: 50 million cycles, 2-wire: 5 million cycles (reference values)
- Dimensions: 3.62” W × 0.96” H × 7.17” D (without projections)
- Instruction manual ×1, D-SUB 50 pin connector ×1
- 1-Year Warranty Period
The unit features 4-wire 10 channel or 2-wire 21 channel input scanning for complete assessment of multi-point signals (use with Hioki RM3545-02, input scanner).
