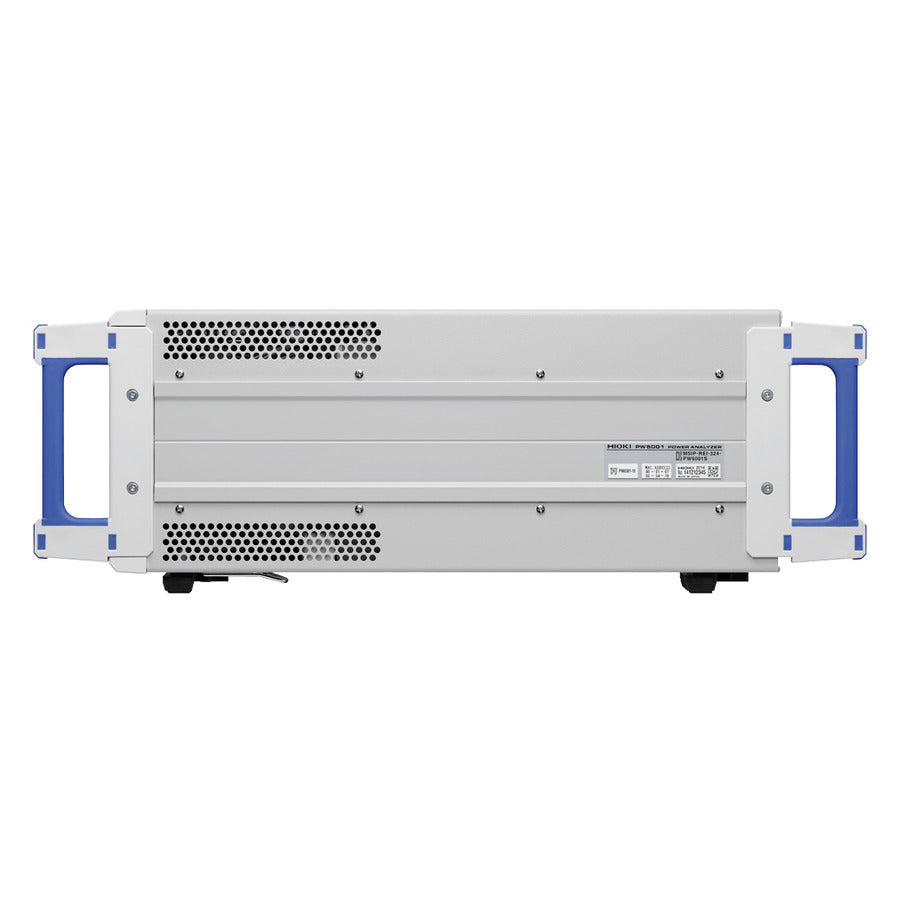

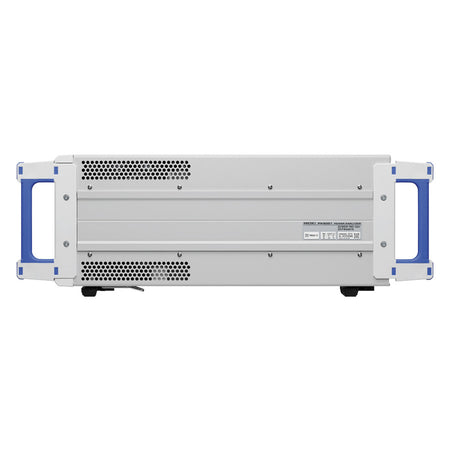

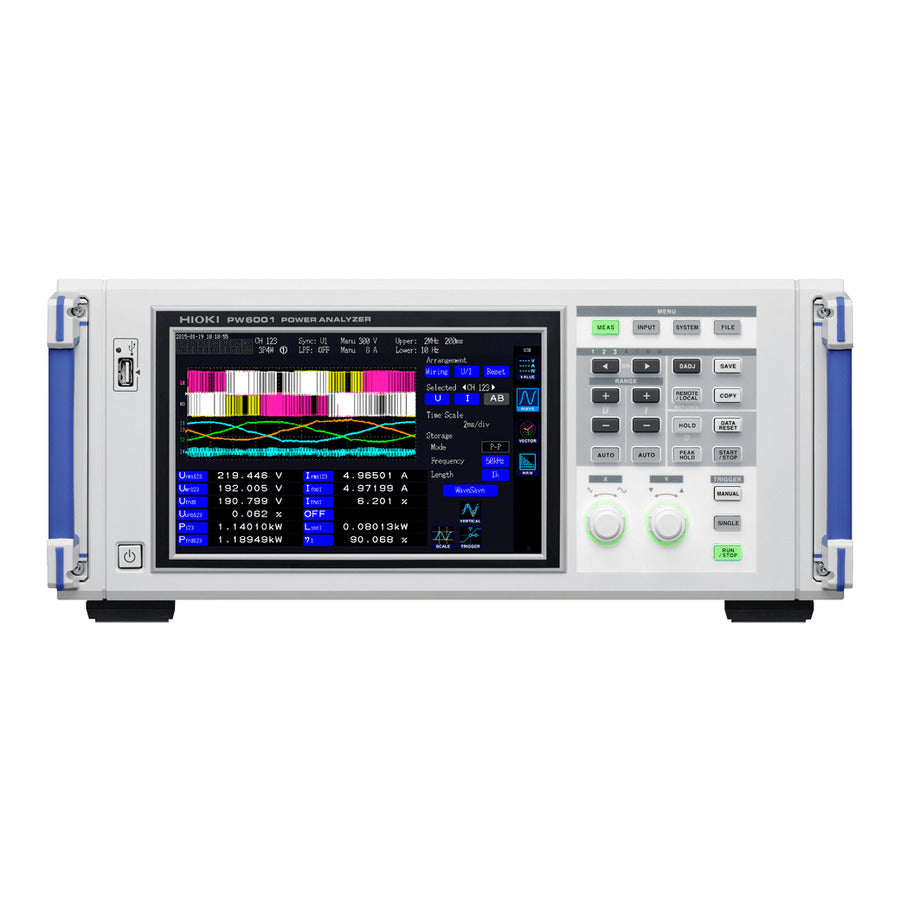

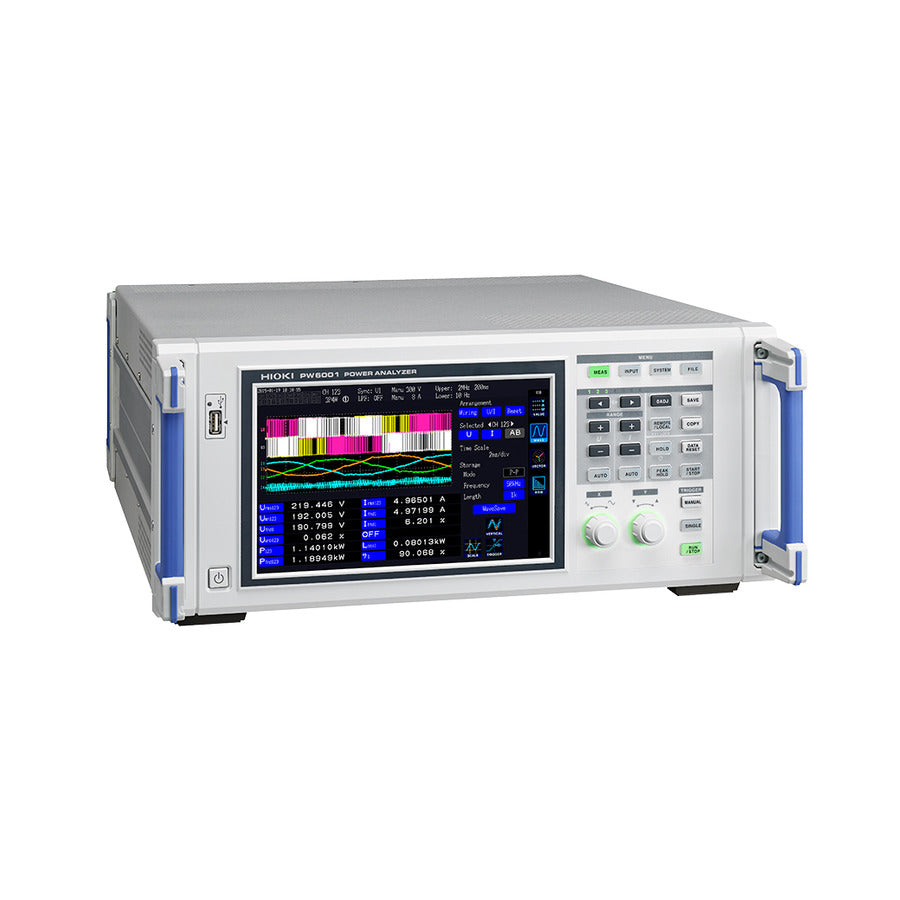

Hioki PW6001-04 Power Analyzer, 4 Channel, PW6001 Series

4 Channel PW6001-04 High-Precision Power Analyzer

Features:

• 0.02% power measurement accuracy
• High noise resistance and stability
• Combined accuracy of ±0.07% rdg. with current sensor
• Special triggers can enable waveform analysis
• 18-bit A/D conversion
• DC, 0.1 Hz to 2 MHz frequency bandwidth
• Wideband harmonic analysis up to the 100th order with a 1.5 MHz band
• CMRR performance of 80 dB/100 kHz
• Broad frequency band and sampling

PW61001 Series:

Delivering high accuracy, a broad range of measurement frequencies, and a high level of measurement stability
The PW6001 is Hioki's flagship power analyzer, featuring high accuracy, wide band, and high stability for measuring electrical power from DC to inverter frequencies, and supports next generation devices such as silicon-carbide (SiC) inverters.

TrueHD 18-bit converter measures widely fluctuating loads with extreme accuracy
A built-in 18-bit A/D converter provides a broad dynamic range. Even loads with large fluctuations can be shown accurately down to tiny power levels without switching the range. Further, a digital LPF is used to remove unnecessary high-frequency noise, for accurate power analysis.

Fast, simultaneous calculation functions achieved with Power Analysis Engine II
All measurements, including period detection, wideband power analysis, harmonic analysis, and waveform analysis, are digitally processed independently and with no effect on each other. Fast calculation processing is used to achieve a data update speed of 10 ms while maintaining maximum accuracy.

Applications: EV/HEV motor analysis plus solar and wind power conditioner conversion efficiency measurements.

Included: Instruction manual and power cord.
