GW Instek PHU 1000-45D DC Power Supply, Single Output, Programmable, 1000 V, 45A, 15 kW, PHU Series
Couldn't load pickup availability
Ask an expert!
GW Instek
GW Instek provides reliable, cost-effective test instruments for education, R&D, and manufacturing, including oscilloscopes, power supplies, and multimeters.
Prestige/Harmony/Universal (PHU) Series Multi-Range High Power DC Source
Features
Voltage output: 80 V/ 200 V/ 500 V/ 750 V/ 1000 V / 1500 V
Power output: 5 kW/ 10 kW/ 15 kW
Maximum current output: 510 A
C.C/ C.V priority mode
Adjustable voltage/current rise and fall time
AWS (Advanced Web Control)
APC (Adaptive Parallel Connection)
Parallel connection (maximum 10 units)
High efficiency and high-power density
Bleeder Control function
Internal Resistance function
Panel lock function
Three sets of Preset Function
Protection: OVP, OCP, OHP, UVL, AC Fail, FAN Fail
Standard: USB, LAN, Isolated Analog control
Option: RS-232&485 or GPIB or CAN Bus or Device Net or Any Bus
3U height and 19” Rack Mount Size
The PHU Series is a single-channel programmable DC power supply with a multi-range output feature which offers a wide range of voltage and current combinations for greater flexibility. The circuit design adopts SiC (silicon carbide) components to achieve high power density characteristics which can generate 15 kW of high output and keep the compact size at just 3U height.
PHU's wide voltage and current range, along with its high-power characteristics, can cover a broader range of testing applications such as photovoltaic systems, electric vehicles (EVs), and automotive electronics, etc. The launch of PHU multi-range high power DC source enhances the completeness of the DC power supply product line of GW Instek, and provides customers with more comprehensive and integrated solutions.
The AWS (Advanced Web Server) function allows the user to operate devices directly through a web browser, without needing to install any complicated software or drivers. This functionality allows users to complete tasks more efficiently, saving time and increasing productivity.
The unique APC (Adaptive Parallel Connection) feature offers adaptability in parallel connection, allowing users to make the best choice according to their needs. For instance, users can opt for a 15 kW model and a 10 kW model to combine both to reach a 25 kW capacity within their budget constraints. Up to 10 PHU units can be connected to reach 150 kW without the need for additional power distribution for control.

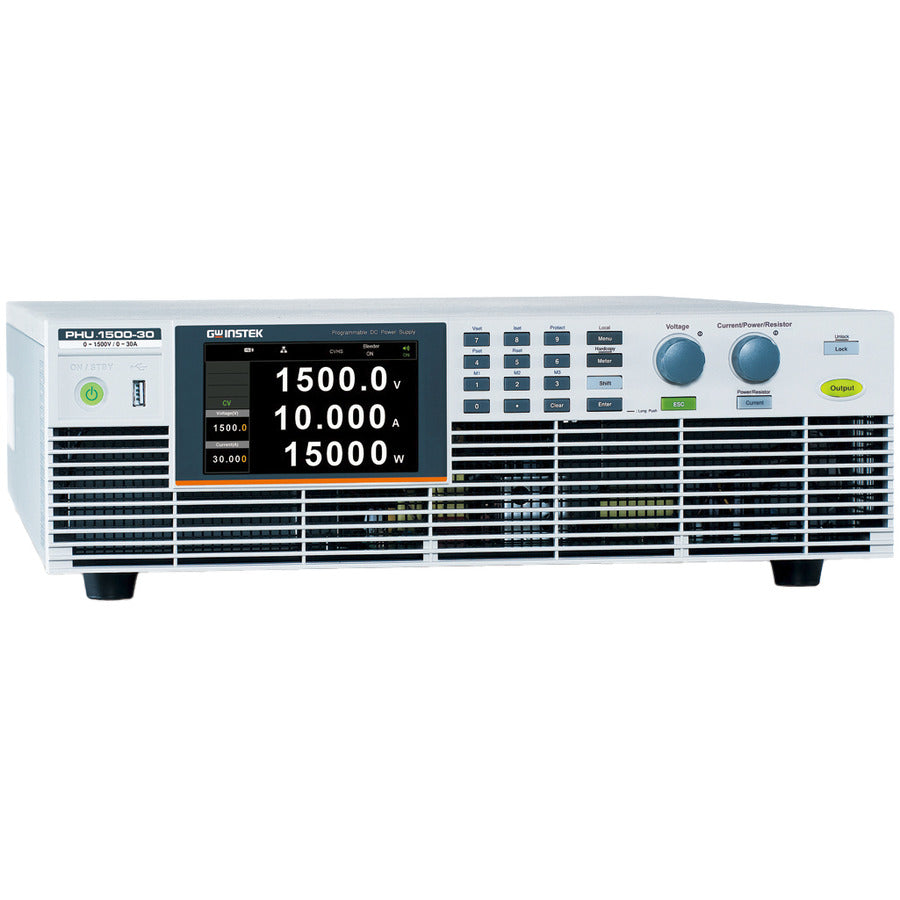

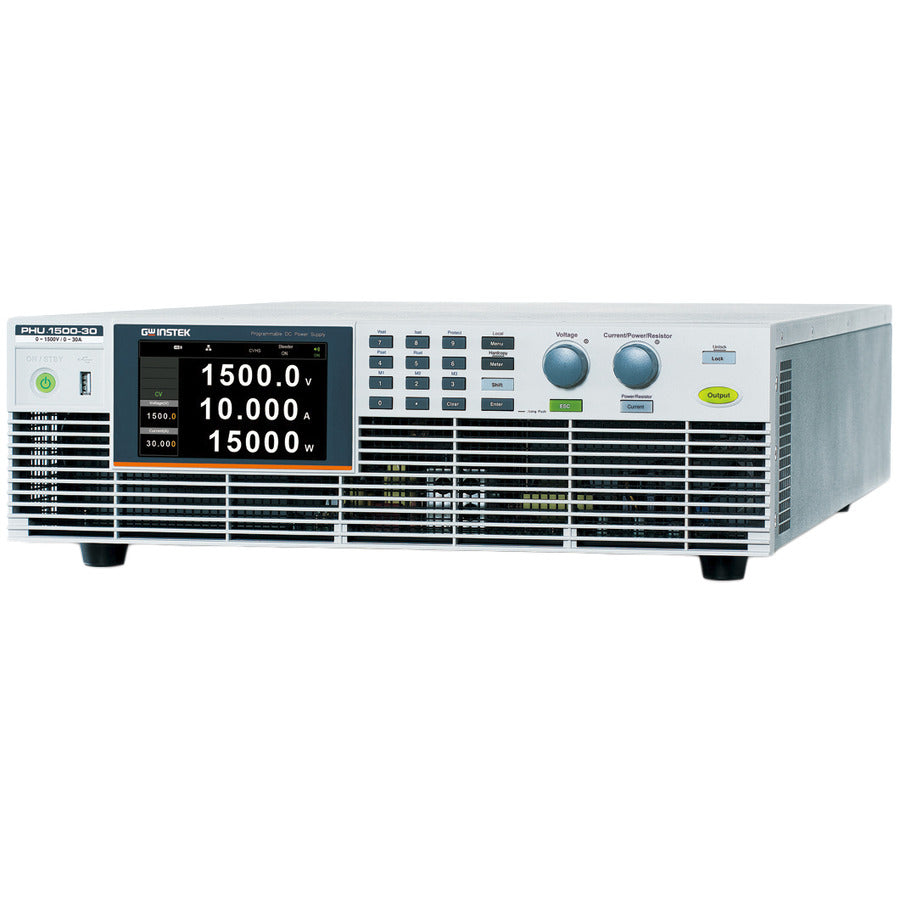

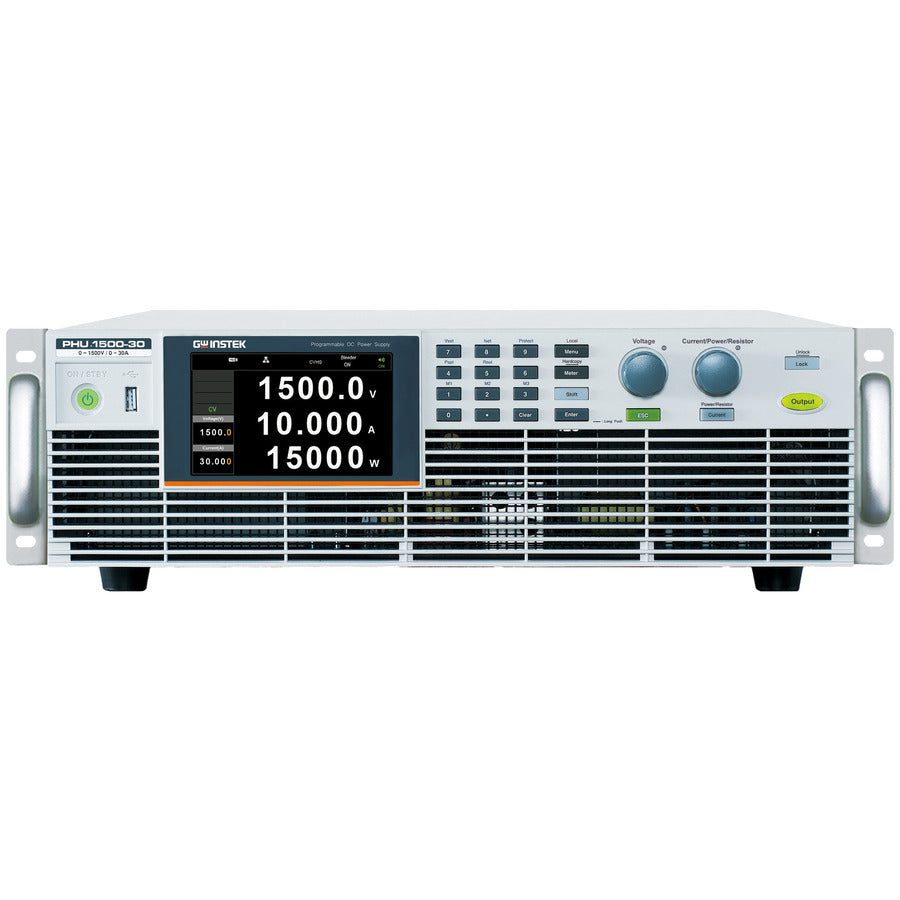

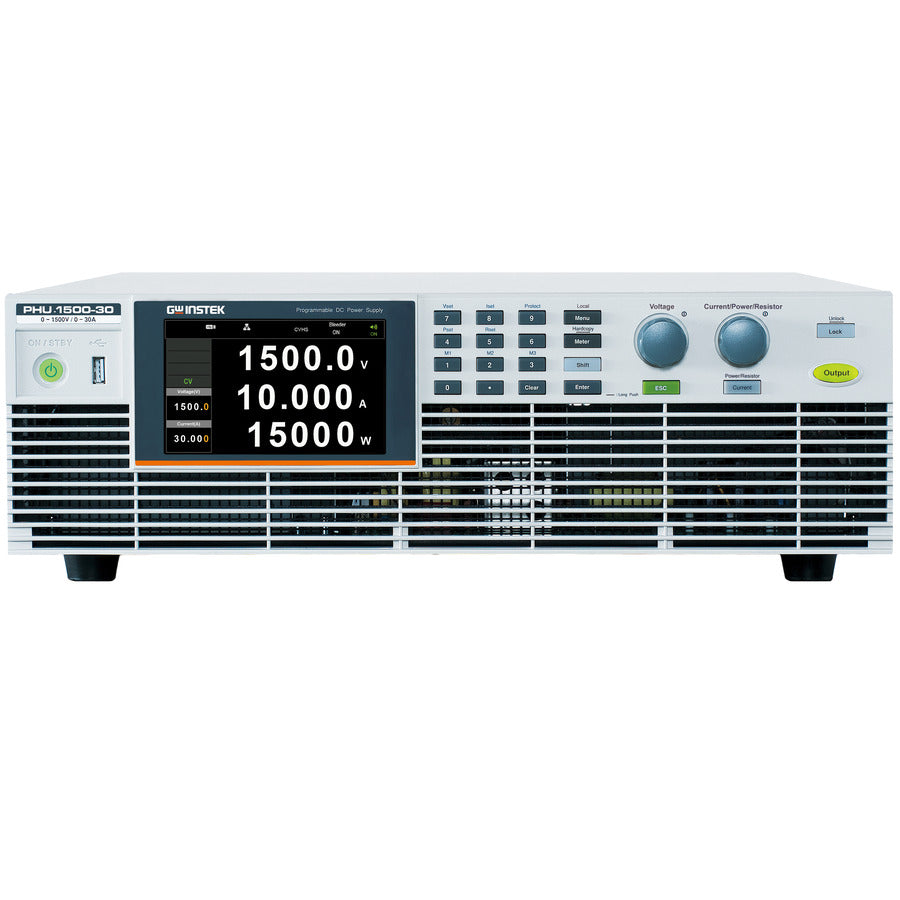

PHU Series Dc Source Front View
Power Switch
USB A Port
Display Area
Number Button
Function Button
Voltage Adjust Knob
Current/Power/Resistance Adjust Knob
Panel Lock
Current/Power/Resistance Switch
Output Switch

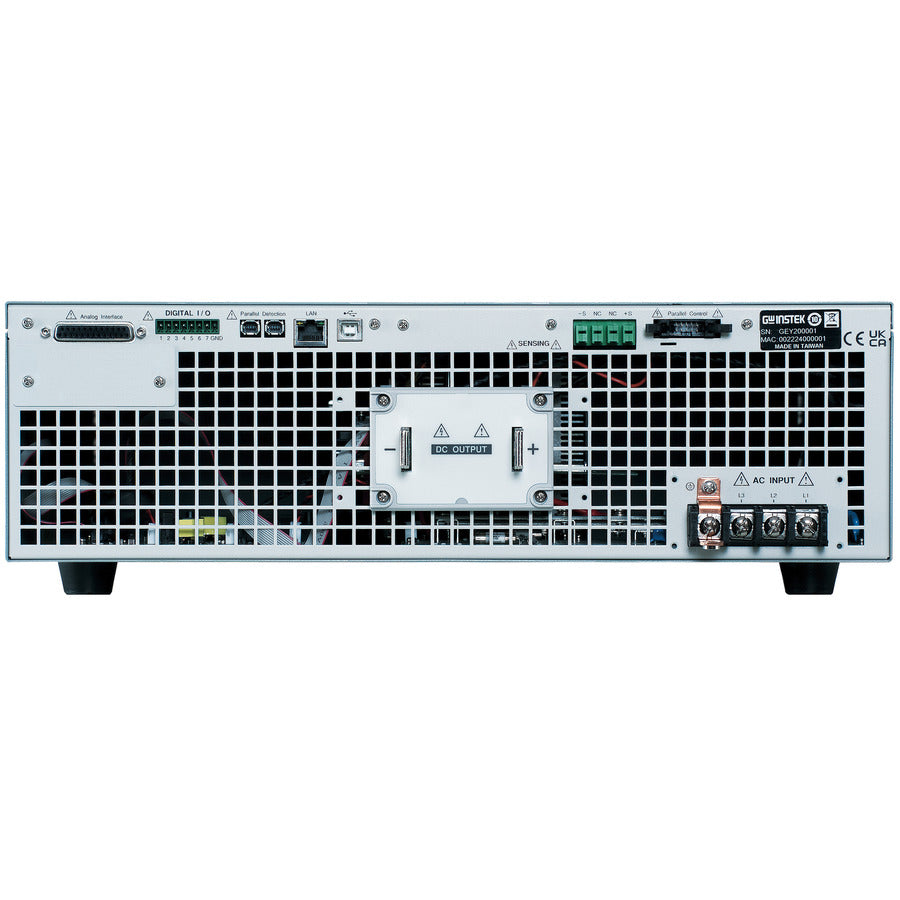

PHU Series Dc Source Back View
Analog Control
Anybus Connection
Digital I/O
Interconnect for Parallel Connection
LAN Port
USB B Port
DC Output Terminal
Remote Sense
Parallel Control
AC Input
For industry interface, PHU provides a variety of embedded industrial interface options to meet user needs, eliminating the need for users to prepare additional interfaces. The available ports including EtherCAT, CANopen, Modbus, Profinet and DeviceNet, etc. Except the standard built-in programmable sequence function, PHU also offers a variety of optional functions including Datalogger, MPPT (Maximum Power Point Tracking), Solar Array Simulator, AH/WH Meter and Battery Simulation to meet customer’s requirements.
There are a total of 18 models, consisting of 3 power capacities (5 kW/10 kW/15 kW) and 6 voltages (80 V/200 V/500 V/750 V/1000 V/1500 V) to meet all customer needs.
In The Box
AC Input Terminal Cover x1
DC Output Terminal Cover x1
Handle x2
Sensing Connector x1
Sensing Connector Cover x1
Digital I/O Control Connector x1
Parallel Control Dummy Connector x1
DC Output Terminal Screws x2
Safety Guide
