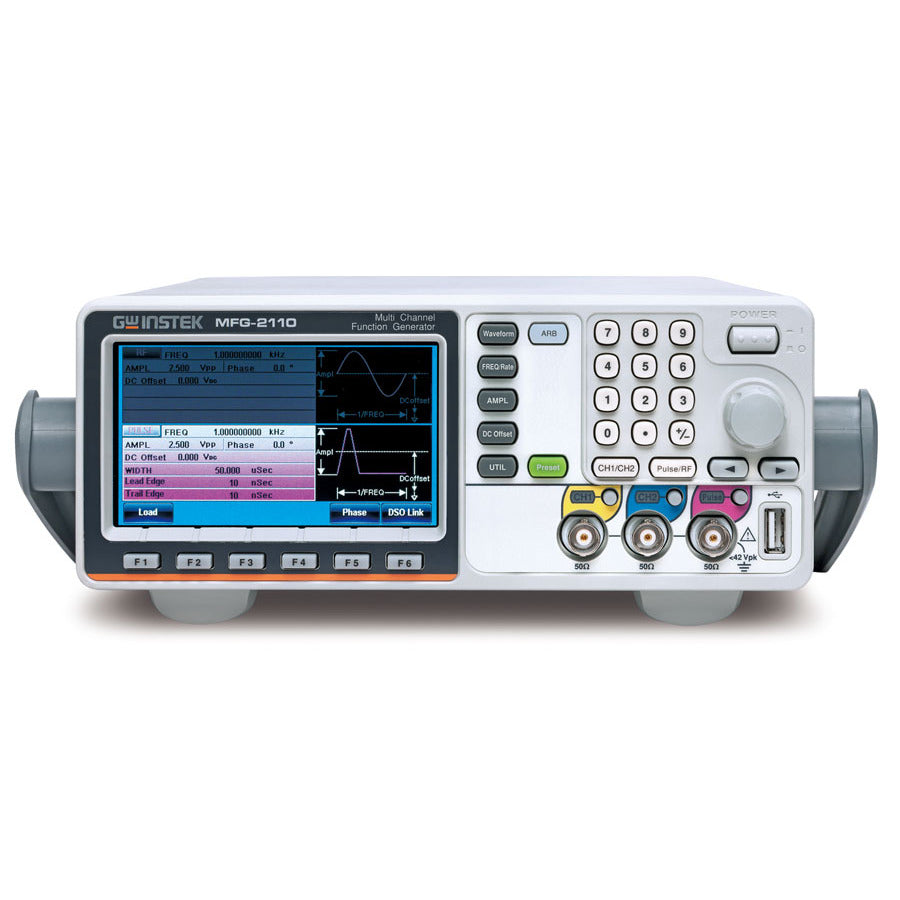

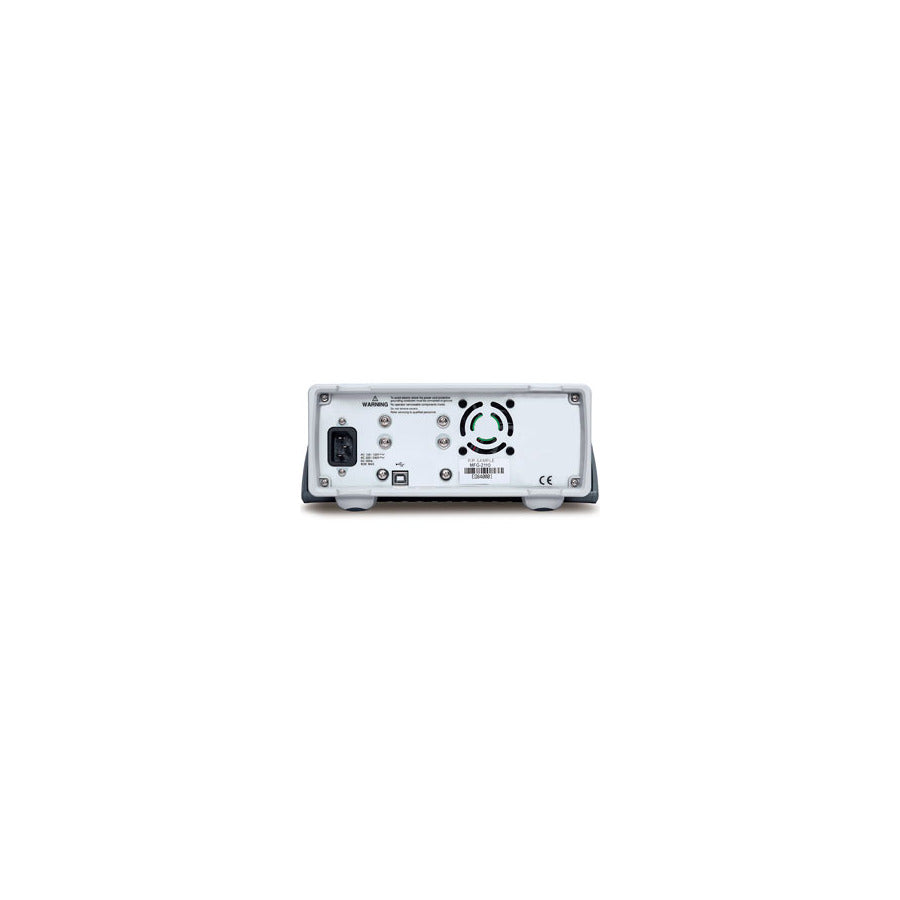

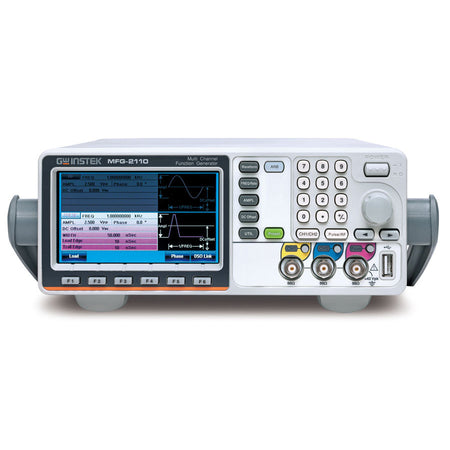

GW Instek MFG-2110 Arbitrary Function Generator w/ Pulse Generator, 10MHz, MFG-2000 Series

• 1 μHz to 10 MHz, Single Channel Function Generator
• Full Function 25 MHz Pulse Generator
• 200 MSa/s ARB
• Genuine point-by-point output arbitrary waveform function features 200MSa/s, 100 waveform repetition rate, 14 bit resolution and 16k point memory depth
• Frequency Counter: 150 MHz, 8 bits
• Circuit design for ground isolation among output/input terminals and instrument chassis
• Earth Ground Isolation Design Among I/O Terminals and Instrument Chassis
• Control interface：USB Host/ USB device
• 4.3 inch TFT color display
• Two-year warranty

10 MHz Function generator and Full Function 25 MHz Pulse Generator
The AFG channel of the MFG-2110 outputs sine, square, and triangle, etc. It also features true point-by-point output arbitrary waveform characteristics of 200 MHz sample rate, 100 MHz waveform repetition rate, 14 bit resolution, and 16k point memory depth. And its full-function pulse generator with 25 MHz has adjustable pulse width, rise edge time as well as fall edge time, and can be applied as trigger signals.

Isolated Channel Design
The overall design of the MFG-2110 is earth ground isolation among output/input terminals and instrument chassis as usually found in high-level signal sources. The output channels can sustain maximum isolation voltage up to ±42Vpk (DC+ AC peak value) to earth ground that is ideal for floating circuit tests. Multi-unit outputs can be executed without factoring in grounding reference issue. There is no additional isolation requirement for experiments such as "full-wave rectification" and "voltage doubler" which are easy and safe. An external power supply can bring up the DC bias voltage to ±42Vpk to meet the requirements of higher DC bias voltage such as automotive and educational applications.

Arbitrary Waveform Editing Software
Collocating with AWES (Arbitrary Waveform Editing Software) allows you to easily and quickly edit arbitrary waveforms. DWR (Direct Waveform Reconstruction) allows you to collocate with GDS series digital oscilloscopes to retrieve waveforms and upload them to arbitrary generator to achieve direct waveform reconstruction. 66 built-in waveforms allows you to edit arbitrary waveforms and to output the whole segment or divided segments.

The MFG-2110 has uses in a variety of applications including scientific research, education, research and development, production and quality control.

MFG-2000 Series versatile Output Waveform Selections

Sine	Square	Triangle	Ramp
Pulse	Noise	DC Voltage	Arbitrary Waveform

MFG-2100 MFG-2200 Series	Channel 1 Function W/ ARB	Channel 2 Function W/ ARB	Pulse Generator	RF Generator (Function W/ ARB)	Power Amplifier	Modulation / Sweep / Burst / Frequency Counter
MFG-2110	10 MHz		25 MHz
MFG-2120	20 MHz		25 MHz
MFG-2120MA	20 MHz		25 MHz
MFG-2130M	30 MHz		25 MHz
MFG-2160MR	60 MHz		25 MHz	320 MHz
MFG-2230M	30 MHz	30 MHz	25 MHz
MFG-2260M	60 MHz	60 MHz	25 MHz
MFG-2260MRA	60 MHz	60 MHz	25 MHz	320 MHz

Included with MFG-2110: one (1) GTL-101 Test Lead, Quick Start Guide and MFG Software and User's Manual on CD.
