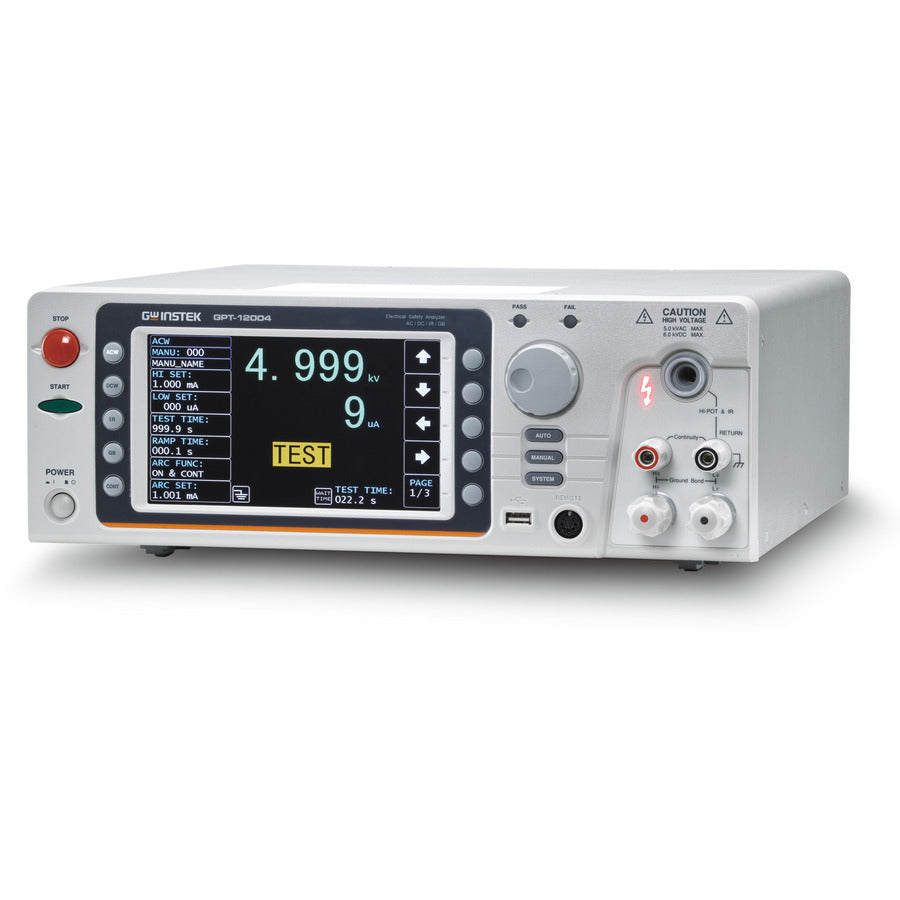

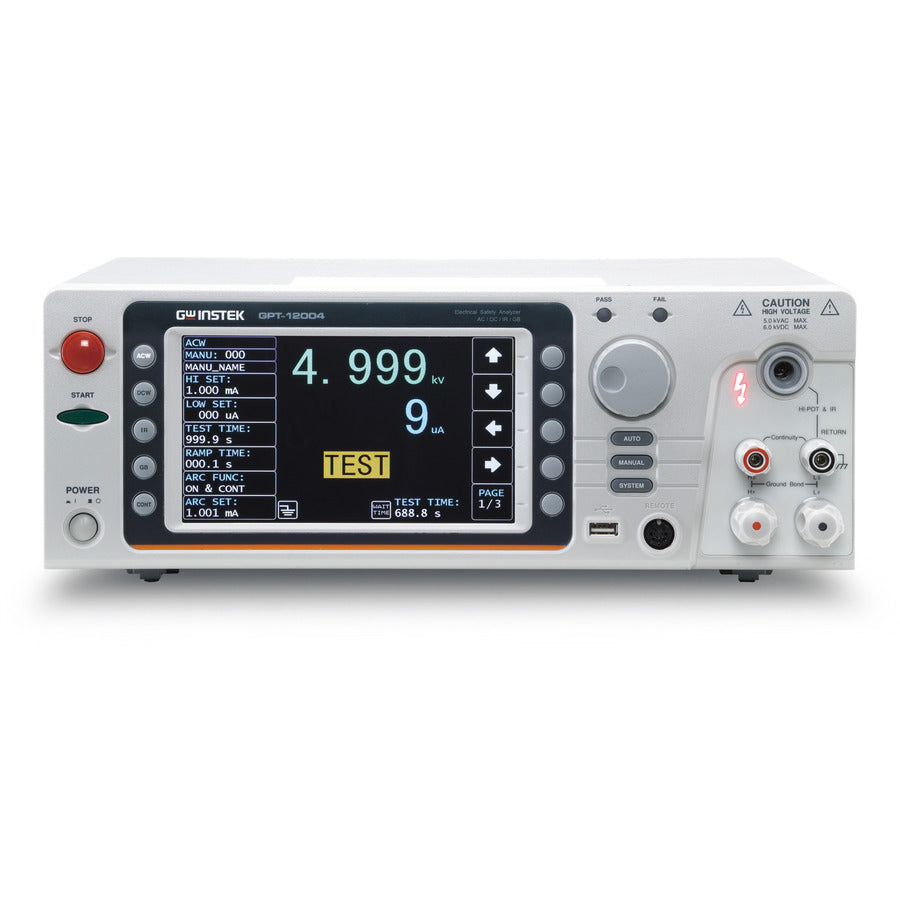

GW Instek GPT-12004 Electrical Safety Analyzer, Sweep Function, Ground Bond, 200VA, GPT-12000 Series
Regular price
€2.974,32
inc. VAT
Couldn't load pickup availability
Ask an expert!
GW Instek
GW Instek provides reliable, cost-effective test instruments for education, R&D, and manufacturing, including oscilloscopes, power supplies, and multimeters.
GPT-12004 200VA AC/DC/IR/GB/Continuity Electrical Safety Analyzer
Included Accessories
The GPT-12000 is the first safety analyzer in the world to comply with IEC 61010-2-034 (Safety requirement for electrical requirement for measurement, control and laboratory use - particular requirements for measurement equipment for insulation resistance and test equipment for electric strength).
GPT-12000 Series Key Features
- 200VA AC Test Capacity
- Comply with IEC 61010-2-034
- 7 inch TFT LCD
- Manual / Auto Mode
- RMS Current Measurement
- Zero Crossing Turn-on Operation
- Controllable Ramp-up & Ramp-down Time
- Capacitive Load Testing Capability up to 47uF
- Statistics & Analysis Function
- Sweep Function for DUT Characteristic Analysis
- Convenience Listed AUTO mode easy to read result & judge
- Internal Storage & USB Storage available
- Barcode Function available
- Setting Data Export / Import

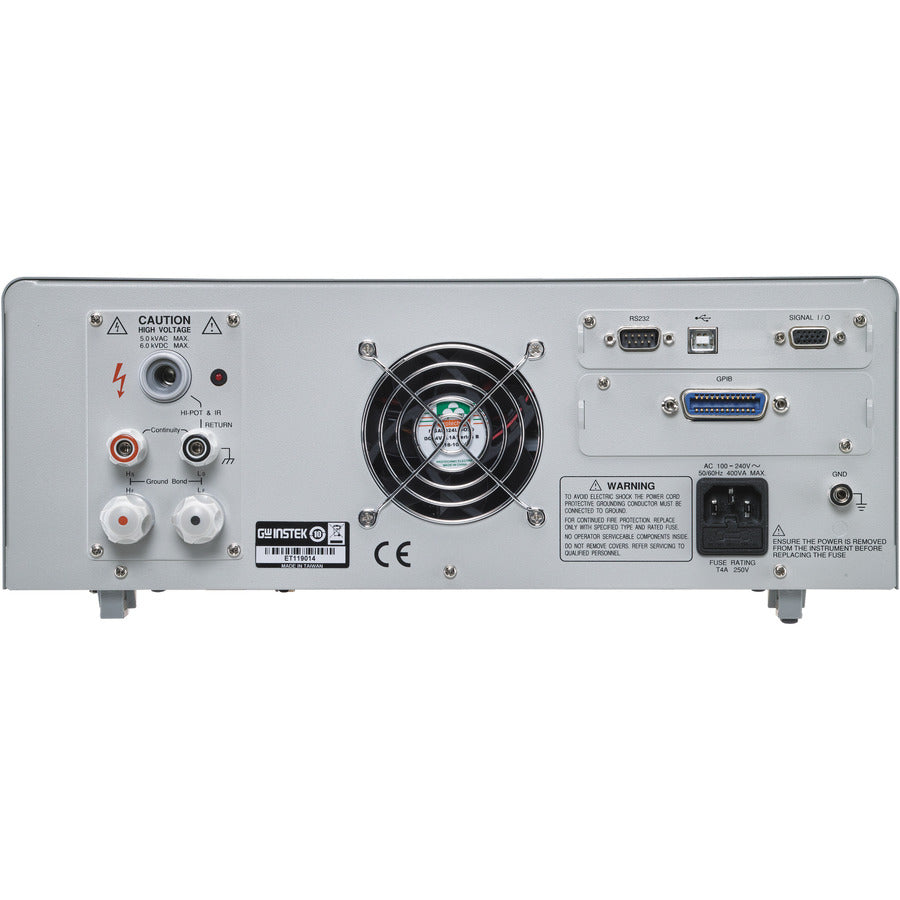

- Rear panel output available
- Interface : RS-232C, USB host/device, Signal I/O and option GPIB or LAN
- Universal power input
| Model/Function | Output Capacity | AC | DC | IR | GB | Continuity | Rear Output |
| GPT-12001 | 200VA | ||||||
| GPT-12002 | 200VA | ||||||
| GPT-12003 | 200VA | ||||||
| GPT-12004 | 200VA |
Included Accessories
- Quick Start Guide x1, CD x1(user manual)
- Power cord x1, Interlock key x1
- Remote terminal Cable GHT-119 x1
- Test lead GHT-115 x1 for GPT-12003/12002/12001
- Test lead GHT-115 x1, GTL-215 x1 for GPT-12004
