GW Instek GDM-533 Handheld DMM, True-RMS, 6000 Counts, USB, GDM-500 Series
Couldn't load pickup availability
Ask an expert!
GW Instek
GW Instek provides reliable, cost-effective test instruments for education, R&D, and manufacturing, including oscilloscopes, power supplies, and multimeters.

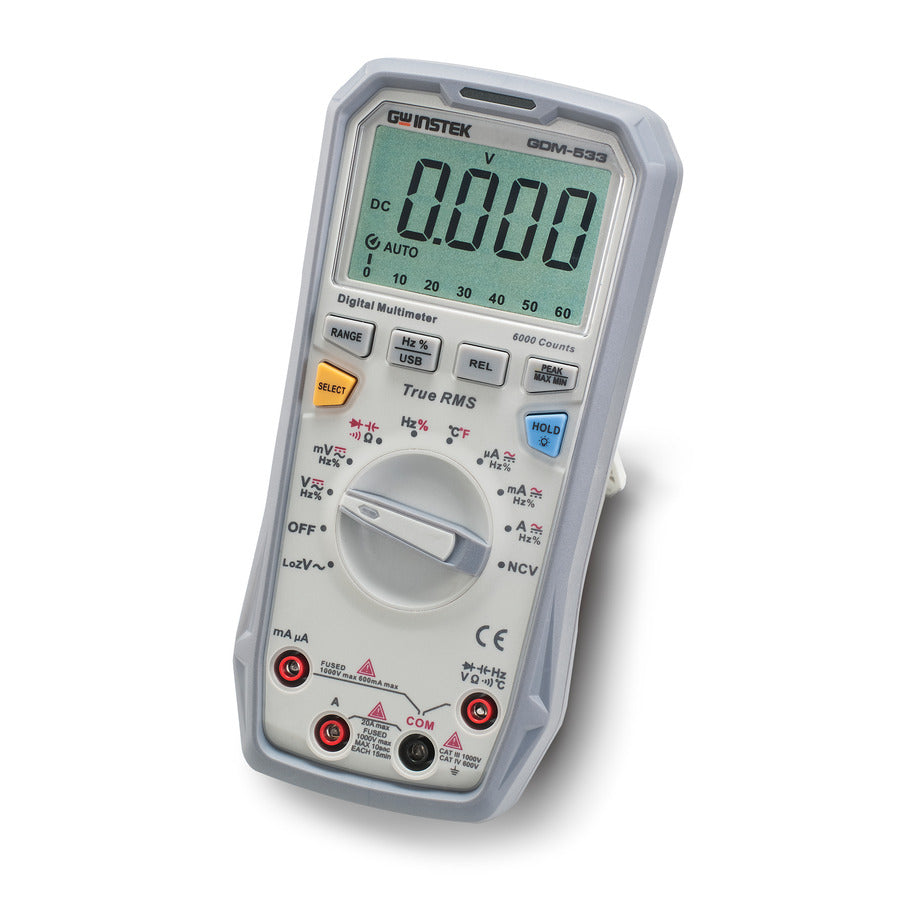

GDM-533 Handheld Digital Multimeter
Features:
- 6000 Counts Auto/Manual Ranging
- 31 Segments Analogue Bar
- LoZ ACV Measurement
- ACV Measurement up to 1000V
- Current Measurement up to 20A
- 10MHz Frequency
- Temperature Measurement
- Audible/Visual Alarm when Overload
- True RMS/USB Interface
- CAT III 1000V / CAT IV 600V
The GDM-500 Series hand-held DMM is a compact, high precision, battery operated multimeter designed to meet the application requirements of service engineers. The GDM-500 series design is driven by mobile-oriented features: automatic power-off to preserve battery life, a large backlight display for crisp viewing, a rotary selector and push buttons to ease operation, and NCV (Non-Contact Voltage) function for outdoor use.
The basic functions of the Series match the extensive functionalities of bench-top multimeters: fuse-protected current input, true RMS for accurate AC measurements, Audible/Visual Alarm when Overload, Auto ranging, Duty cycle and Relative mode. The compact, reliable and economical GDM-500 Series is ideal for engineers.
In The Box
- User manual
- Test leads
- Battery
- USB cable
- Adapter socket
- K-type thermocouple
