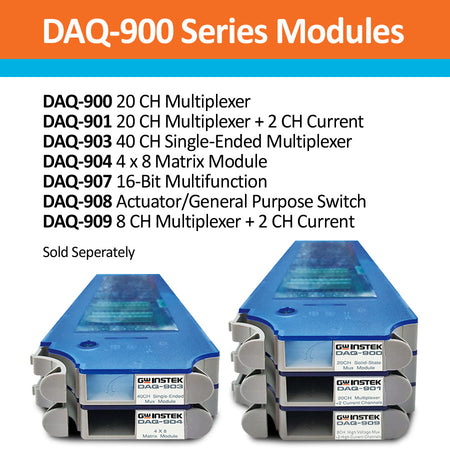

GW Instek DAQ-907 Multifunction Module, 2 Analog Modes,16 Bit, DAQ-900 Series
Couldn't load pickup availability
Ask an expert!
GW Instek
GW Instek provides reliable, cost-effective test instruments for education, R&D, and manufacturing, including oscilloscopes, power supplies, and multimeters.

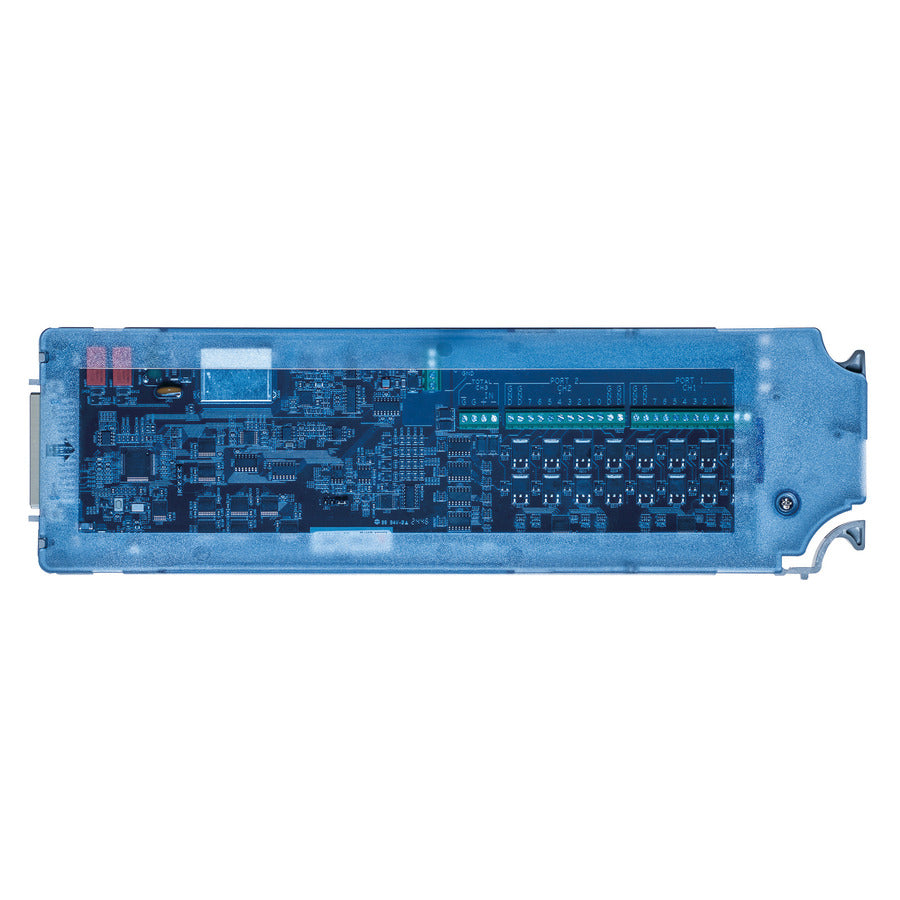

Instek DAQ-907 Multifunction Module
Features and Specifications
- 16 bits of digital input and output
- 100 kHz totalizer input
- Two analog modes: +/-12 V outputs or +/-24 mA outputs
The DAQ-907 is highly versatile for various sensing and control tasks. It features two 8-bit digital input and output ports, a 100 kHz gated totalizer, and two analog outputs (+/-12 V or +/-24 mA), all within a single earth-referenced module. The digital and totalizer inputs can be included in a scan, with alarm limits continuously monitored and logged, even between scans. Additionally, it has two extra channels (DMM INPUT and DMM CURRENT) that can measure output current when providing voltage or output voltage when providing current.
