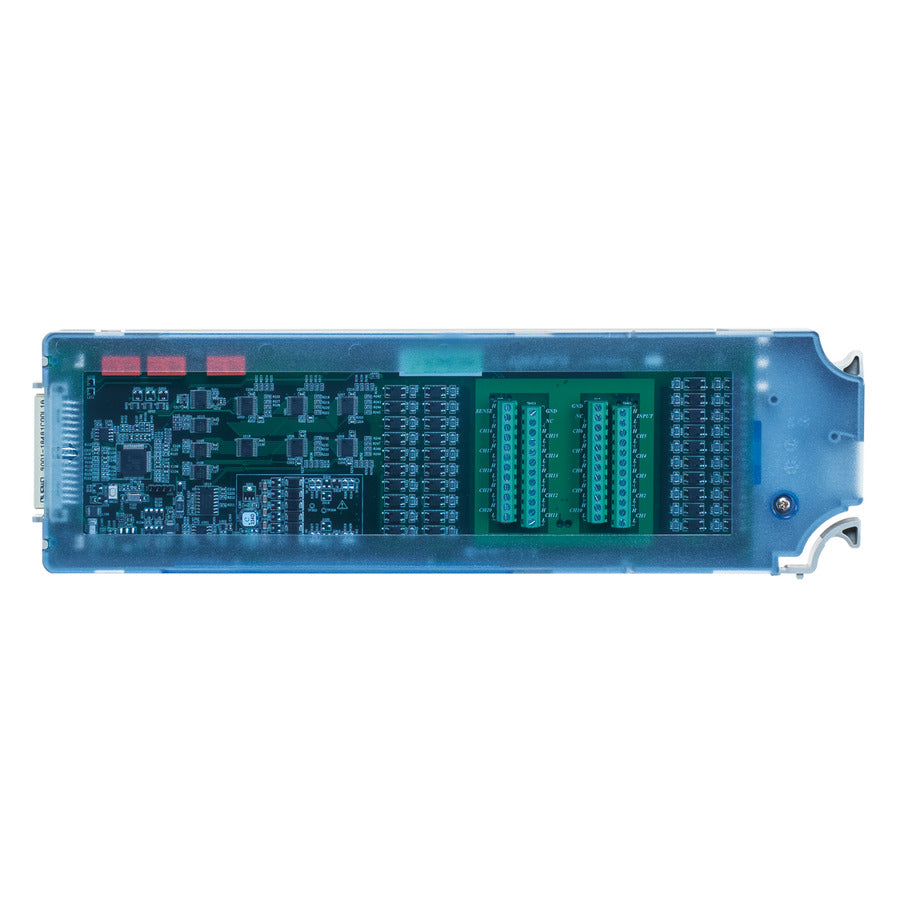

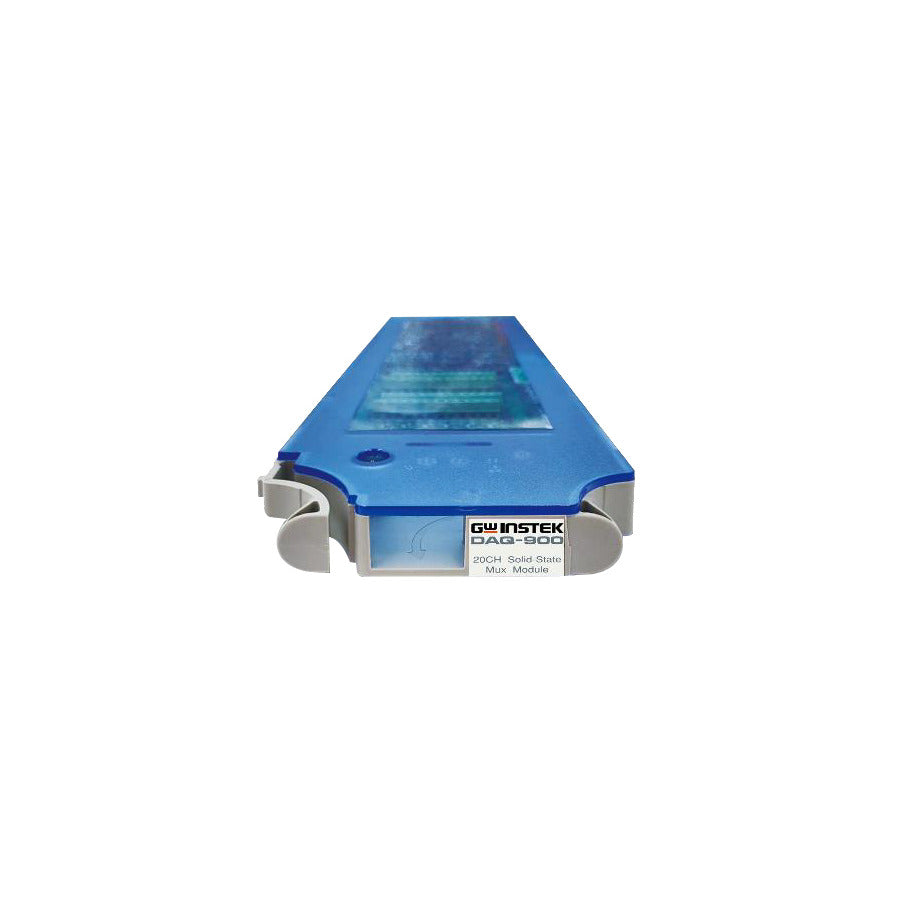

GW Instek DAQ-900 Universal Multiplexer, 20 CH, Solid State Relay, DAQ-900 Series
Couldn't load pickup availability
Ask an expert!
GW Instek
GW Instek provides reliable, cost-effective test instruments for education, R&D, and manufacturing, including oscilloscopes, power supplies, and multimeters.
Instek DAQ-909 Multiplexer Module 8+2 Channels
Features and Specifications
- 3ms switching speed
- DC voltage 600V, current 2A
- 2-wire and 4-wire scanning
- Additional 2 channels can directly measure current (2A/per channel)
The DAQ-909 module is a multiplexer specially designed for high voltage, providing 8 channels for DC 600V / AC 400Vrms voltage measurement. The additional 2 current input channels can be used for AC and DC current measurement, external shunt resistors are not required (maximum 2A / per channel).

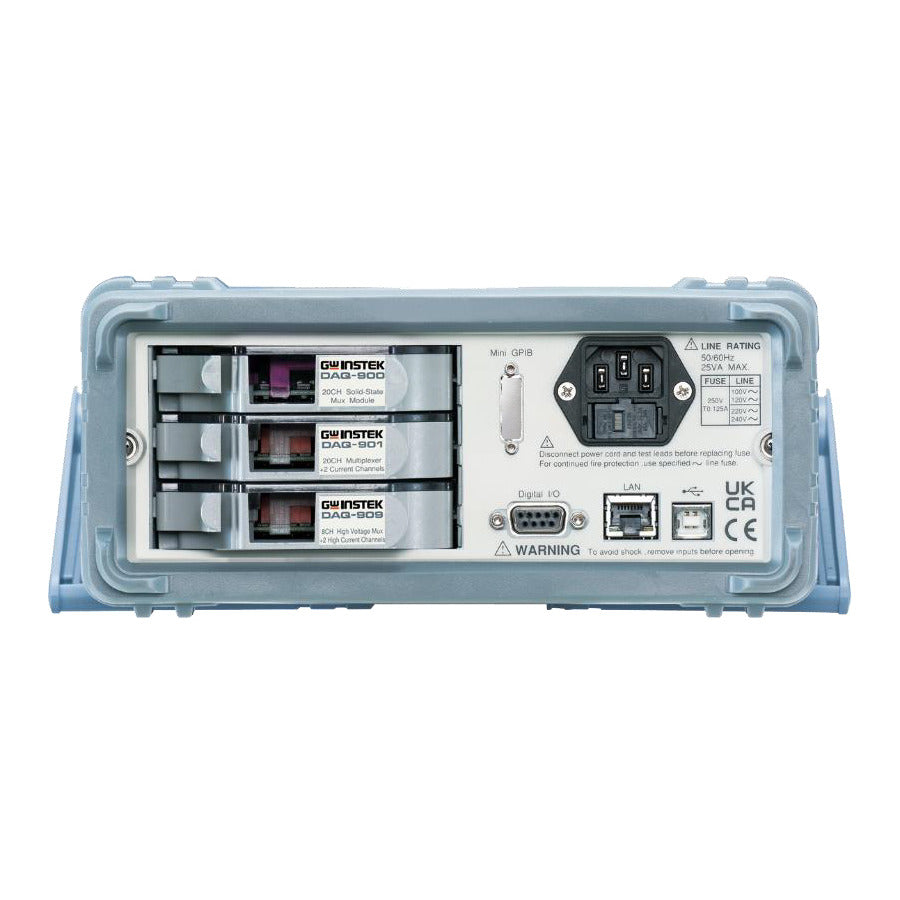

The built-in digital multimeters of DAQ-9600 data acquisition system mainframe can be connected and used via DAQ-900, DAQ-901, DAQ-903 and DAQ-909 multiplexers (all except DAQ-904).
DAQ-900 DMM Functions Supported
- AC/DC voltage
- Frequency/Period
- 2 wire resistance
- 2 wire RTD
- Thermocouple
