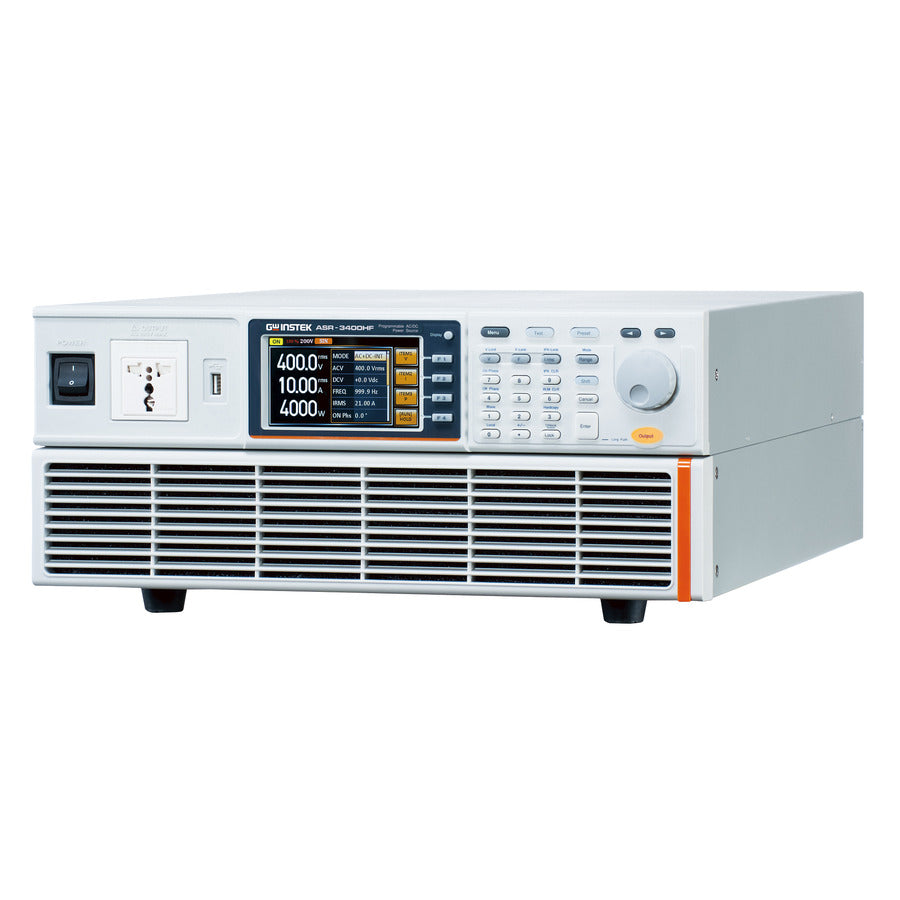

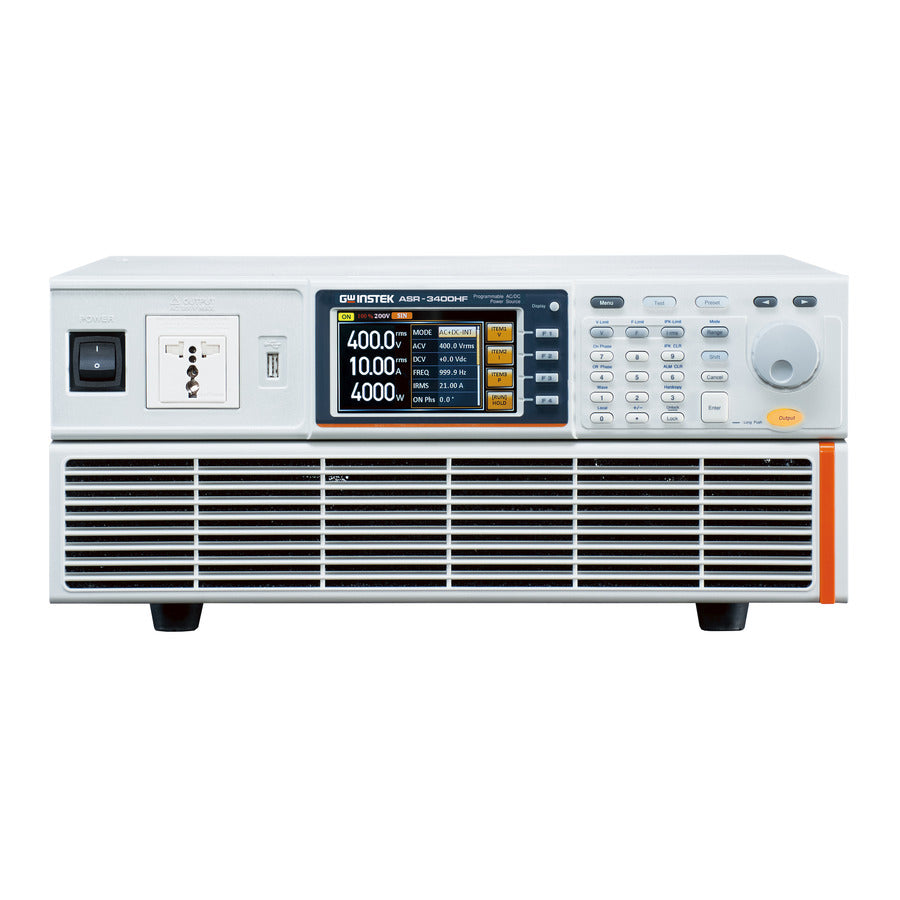

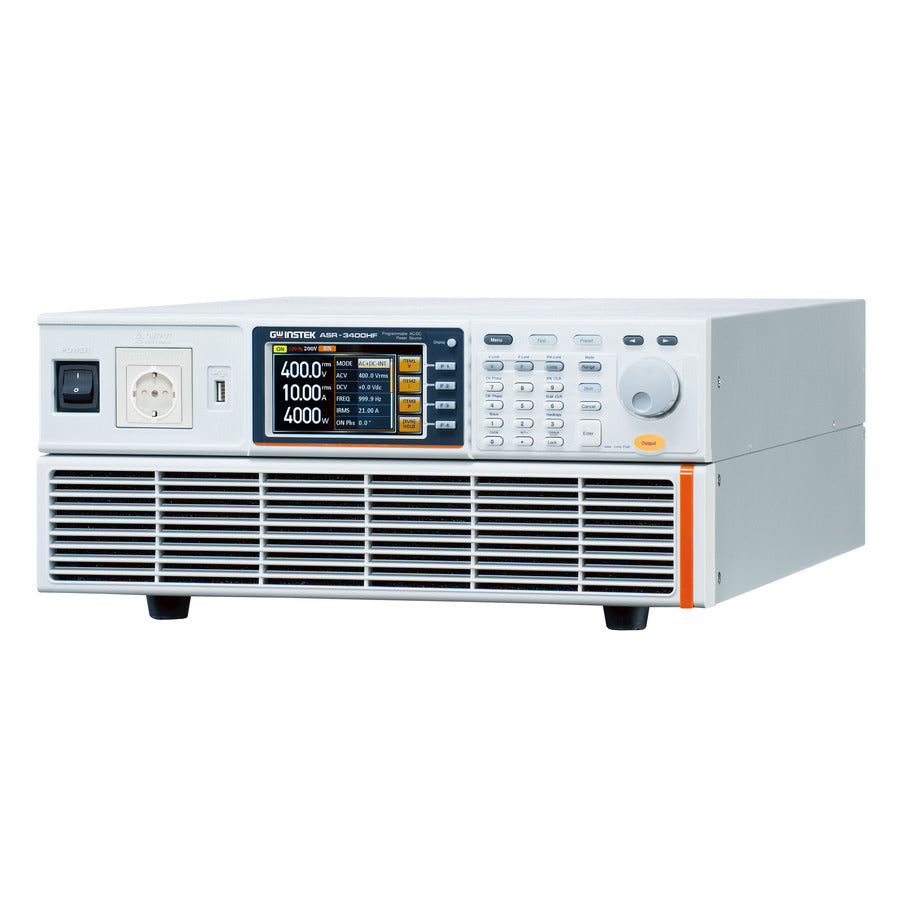

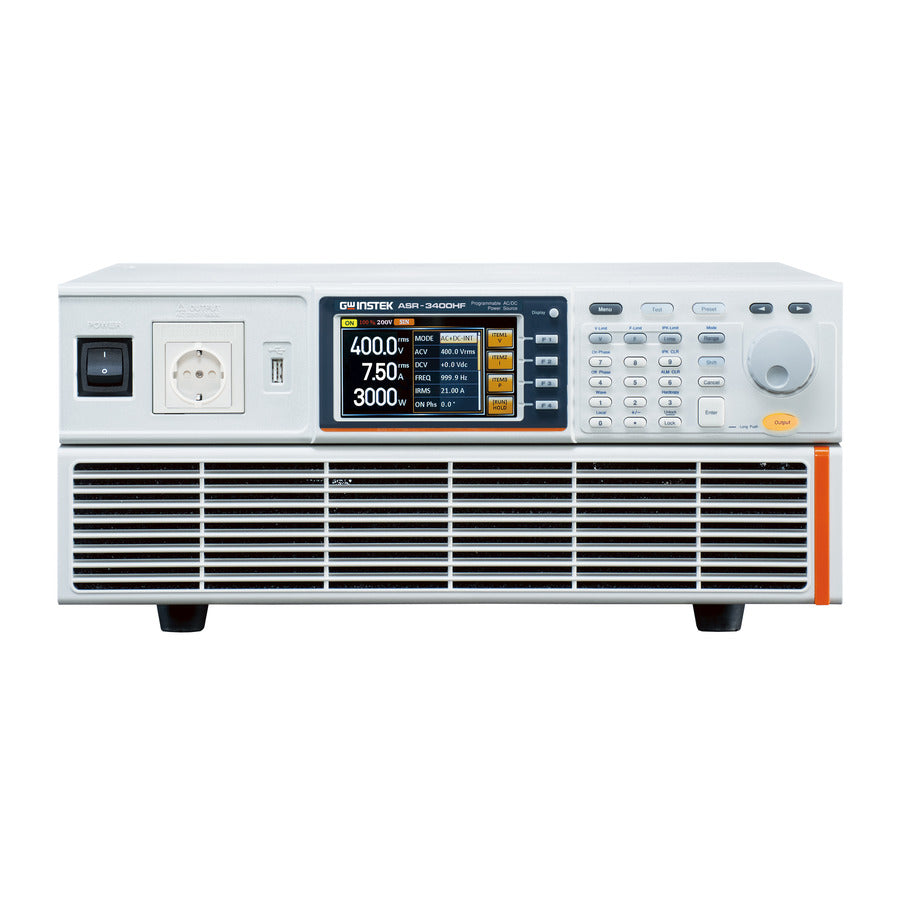

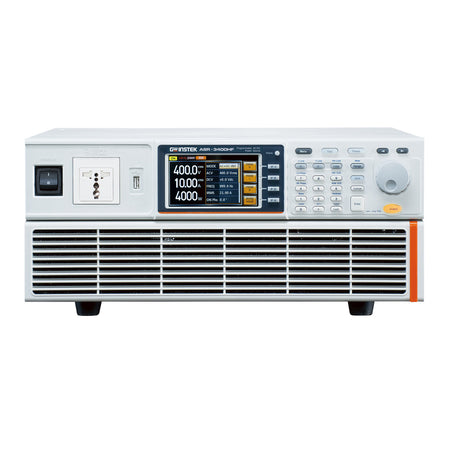

GW Instek ASR-3400HF Programmable AC/DC Source, 4kVA, 40/20A, 5000Hz, ASR-3000 Series

The ASR-3000 Series is an AC+DC power source, featuring high-speed DC voltage rising and falling time (≦100us). There are four models of the series: ASR-3200(2kVA), ASR-3300(3kVA) and ASR-3400/3400HF (4kVA). The series can provide rated power output during AC output and DC output. Ten ASR-3000 Series output modes are available, including 1) AC power output mode (AC-INT Mode), 2) DC power output mode (DC-INT Mode), 3) AC/DC power output mode (AC+DC-INT Mode), 4) External AC signal source mode (AC-EXT Mode), 5) External AC/DC signal source mode (AC+DC-EXT Mode), 6) External AC signal superimposition mode (ACADD Mode), 7) External AC/DC signal superimposition mode (AC+DC-ADD Mode), 8) External AC signal synchronization mode (ACSYNC Mode), 9) External AC/DC signal synchronization mode (AC+DC-SYNC Mode)10) External DC voltage control of AC output mode(AC-VCA).

• Output Rating: AC 0 ~ 400 Vrms, DC 0 ~ ± 570 V
• Output Frequency up to 5kHz
• DC Output (100% of Rated Power)
• Measurement Items: Vrms, Vavg, Vpeak, Irms, IpkH, Iavg, Ipeak, P, S, Q, PF, CF
• Voltage and Current Harmonic Analysis(THDv, THDi)
• Remote Sensing Capability

In The Box

• CD (User manual/Programming manual)
• Safety guide
• Input terminal cover
• Output terminal cover
• Include remote sensing
• GRA-442-E Rack mount adapter(EIA)
• GTL-246 USB Cable
