EA Elektro-Automatik EA-PS 10200-50 2U DC Power Supply, Autoranging, Single Output, 200VDC, 50ADC

EA Elektro-Automatik EA-PS 10200-50 2U Programmable DC Power Supply

The DC laboratory power supplies in the PS 10000 series from EA Elektro-Automatik convert the energy from the grid into a regulated DC voltage with an efficiency of over 96%.

Specs and Features

• Voltage 0 to 200 V, Current 0 to 50 A, Power 0 to 3 kW

• 2 Unit 19-inch Rack Mount Frame

• 5-inch TFT color touch display with intuitive user interface

• Wide range input, 110 V- 240 V ±10 % Single Phase AC

• Regulation mode CV, CC, CP with fast crossover

• Active Power-Factor-Correction, typical 0.99

• Very high efficiency up to over 95 %

• Flexible power regulated DC output stages (autoranging)

• 16 bit ADCs and DACs, selection of control speed: Normal, Fast, Slow

• Galvanically isolated Share-Bus for parallel operation

• Master-Slave bus for parallel operation of up to 64 units

• Command languages and drivers: SCPI and ModBus, LabVIEW, IVI

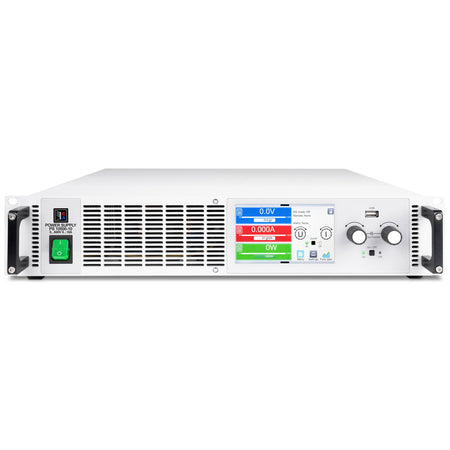

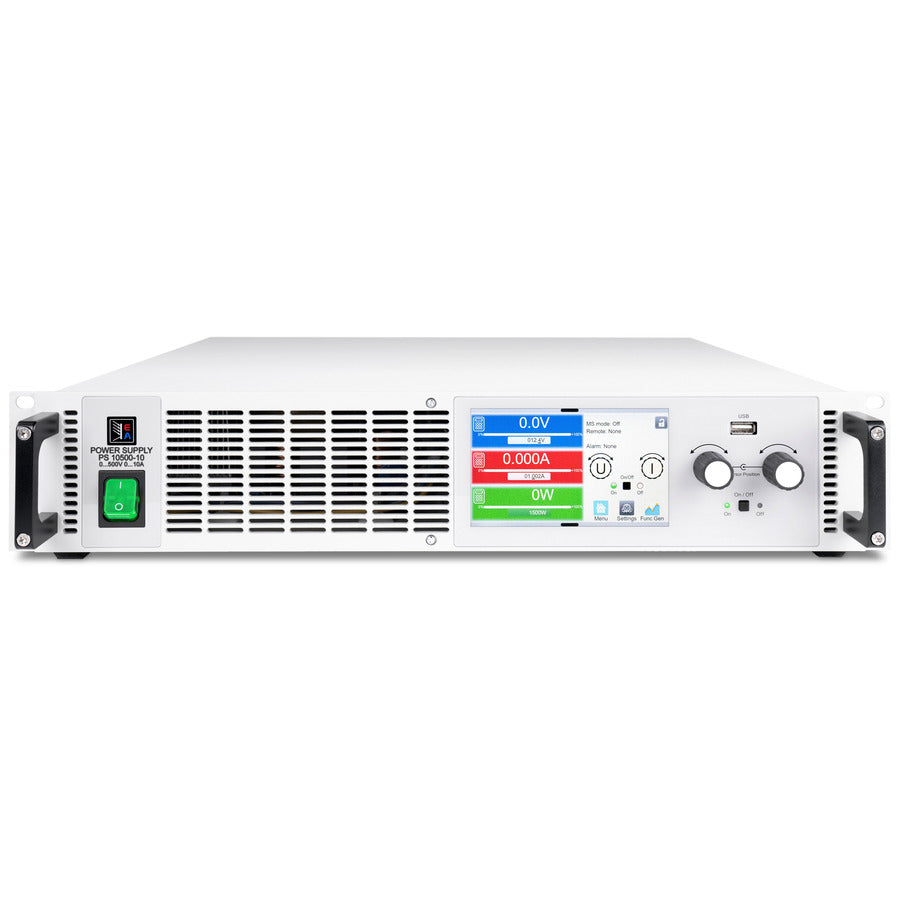

Front Panel Description PS 10000 2U

1. Main switch

2. TFT Control Interface, interactive operation and display

3. Rotary knob with push-button for settings and control

4. USB Host, use USB·stick for data logging and sequencing

5. Rotary knob with push-button for settings and control

6. On / Off push-button with LED status display

Rear Panel Description PS 10000 2U

1. Slot for Interfaces

2. Master-Slave-Bus interface to set up a system for parallel connection

3. Share·Bus Interface to set up a system for parallel connection

4. Output voltage Remote Sense input terminal

5. Output terminal, Copper busbar

6. Mains input terminal

7. Ethernet interface

8. USB interface

9. Connector {0815 Female) for isolated analog program, monitor and other functions

10. Grounding connection screw {PE)

The DC supply operates as a flexible output stage with a constant power characteristic (autoranging), and a wide voltage, current and power range. To achieve higher power and current all units are equipped with a master-slave bus. This enables up to 64 parallel con­nected devices to be combined into one system which can provide up to 1920 W and 64000 A. Such a system works as a single unit and can use different power classes, only the voltage class must remain constant. In this way a user can construct a 75 kW system from two 30 kW and one 15 kW devices from the PS 10000 range. Furthermore, typical laboratory functionality is provided.

True Autoranging

All 10000 series devices offer true autoranging capabilities. Autoranging allows the device to deliver a higher voltage at lower currents and a higher current at lower voltages than a power supply or load with a conventional square wave output/input characteristic.

Power supplies and loads with autoranging provide users with a wider range of voltages and currents without having to oversize the devices. Benefits: For use in a variety of test applications, a single device provides a wider range of test applications and versatility.

AC Connection

The DC power supplies in the PS 10000 series are equipped with an active PFC which provides high efficiency at low energy consumption. Furthermore, the devices in this series provide a wide input voltage range. This extends from 1-phase 110/120 V up to 240 V AC mains supply and 3-phase 208 V to 380 V, 400 V, and 480 V AC mains supply. The devices can be operated in the majority of global mains supply. They adjust automatically, without additional configuration, to the available supply. In a 110/120 V and 208 V AC grid, a derating of the output power is set.

DC Output

The output of the bidirectional power supply PS 10000 with a DC voltage of 0 - 60 V up to 0 - 2000 V allows currents of 0 - 6 A up to 0 - 1000 A. The flexible output stages (autoranging) provide the user with a wide voltage, current and power range and hence a wider field of working than traditional power supplies.

DC Connection

Connection of the DC output is via a copper rail on the back side of the device. If a system with higher performance is required. the devices are simply connected in parallel. With minimal effort devices can be linked with the vertical copper rails. A cover for contact protection is provided.

In The Box

• 1 x Power supply device

• 2 x Remote sensing plugs

• 1 x 1.8 m (59 ft) USB cable

• 1 x Set of DC terminal covers

• 1 x Sense terminal cover

• 1 x USB stick with documentation and software

• 1 x Cable tie for strain relief
