B&K Precision MPS1303 DC Power Module, 60V, 5A, 300W, 1 Slot, Fixed Range, MPS Series
Couldn't load pickup availability
Ask an expert!
B&K Precision
B&K Precision designs and manufactures reliable electronic test and measurement instruments, including power supplies, signal generators, and oscilloscopes for education, research, and industrial applications.

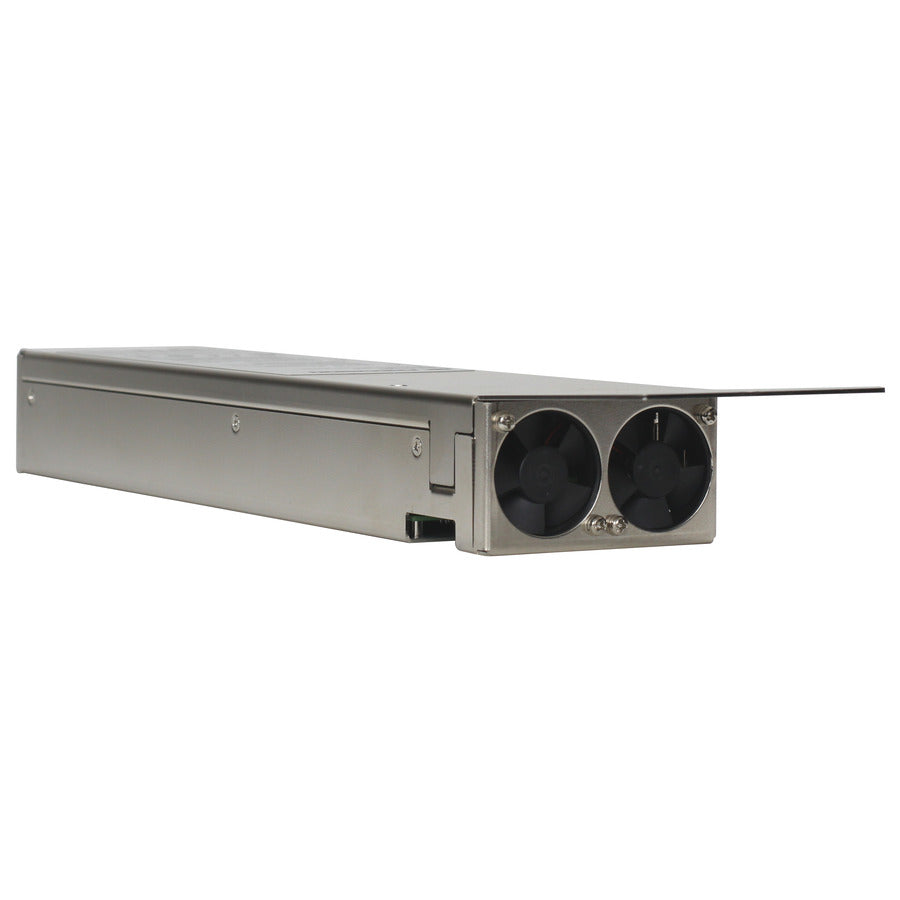

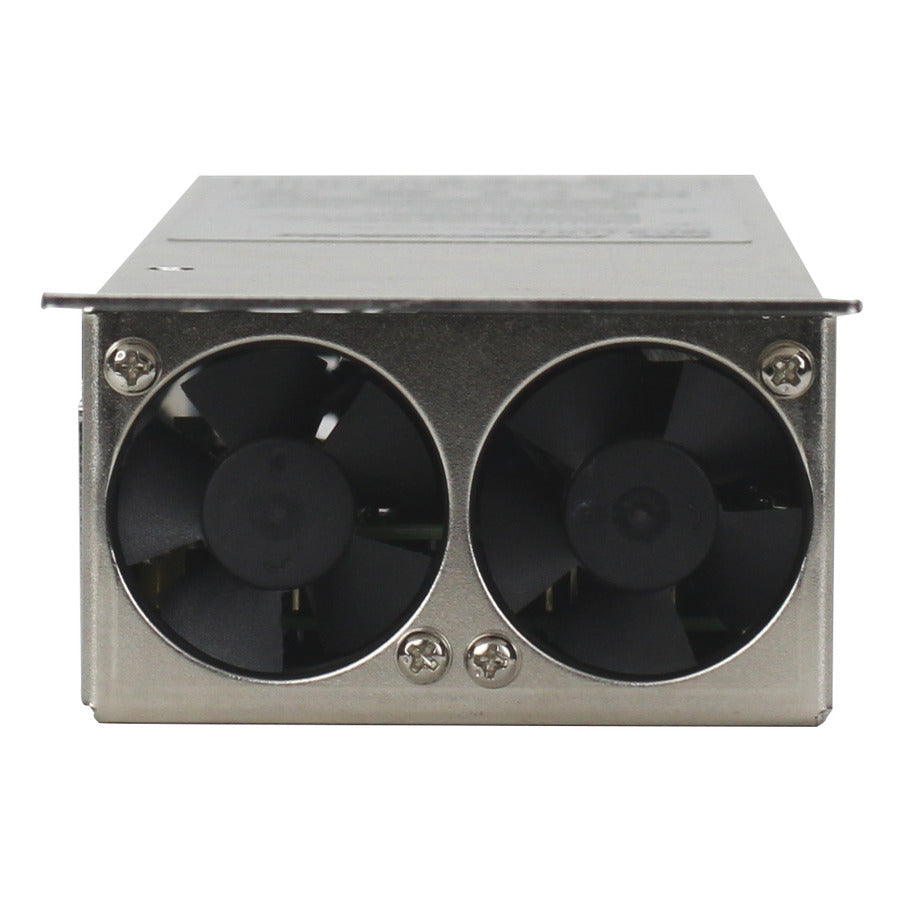

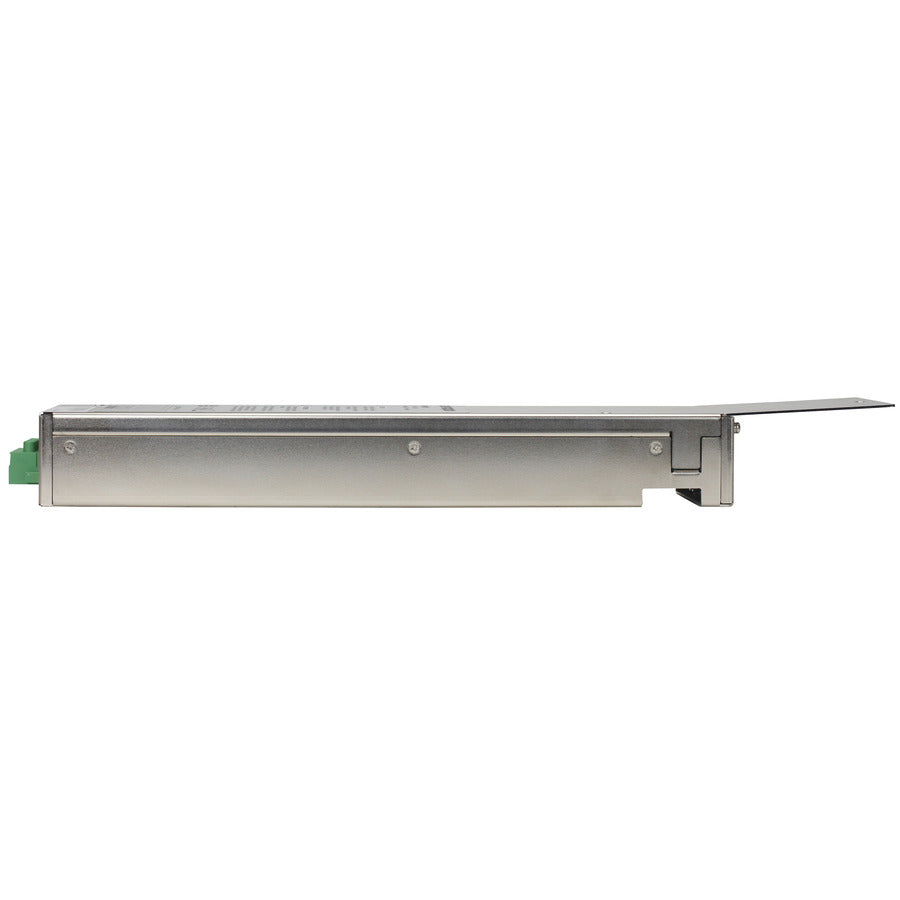

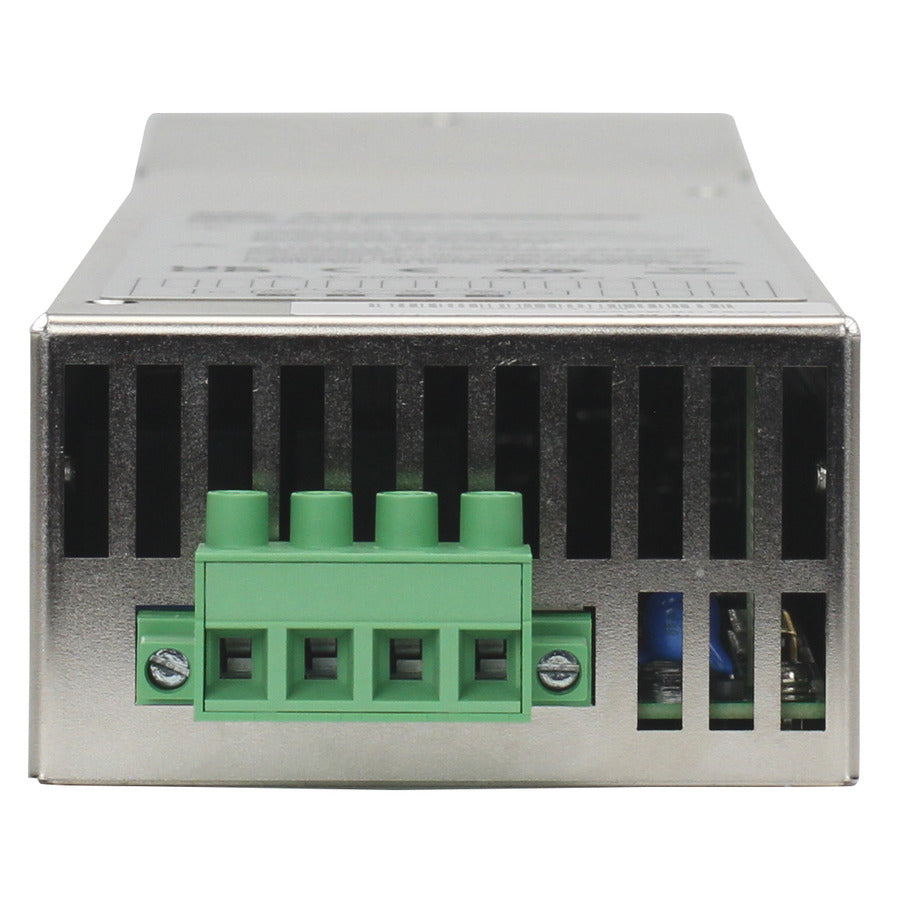

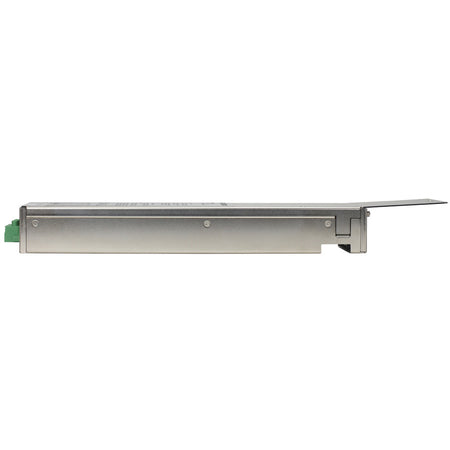

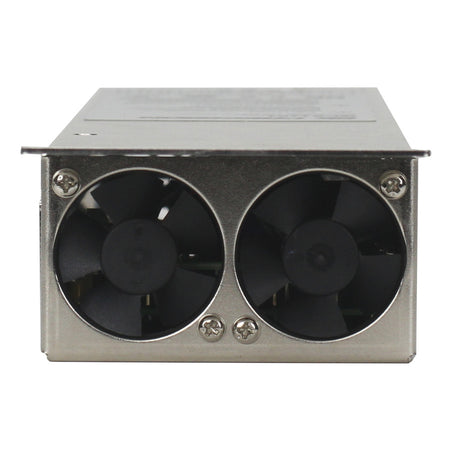

B&K Precision MPS1303 - DC Power Module (for MPS Series Modular DC Power Supply)
B&K Precision offers 8 modules for use with its MPS series mainframes (MPS1000 and MPS1001).
Key facts (MPS1303):
Rated Voltage: 60V
Rated Current: 5A
Fixed Range
Note: Mainframes are sole separately
300W Modules | ||||
|---|---|---|---|---|
Model |
MPS1301 |
MPS1302 |
MPS1303 |
MPS1304 |
Rated Voltage |
15V |
32V |
60V |
100V |
Rated Current |
20A |
9.5A |
5A |
3A |
Ranging |
Fixed Range |
|||
Series/parallel operation
Identical modules can be combined in series/parallel to increase the maximum voltage/current output to 400 V or 80 A.
When series/parallel operation is enabled, the display automatically adjusts for increased voltage/current limits.
In The Box:
MPS1303 300W Module
Calibration Certificate
Note: Mainframe sold separately (required for operation)
