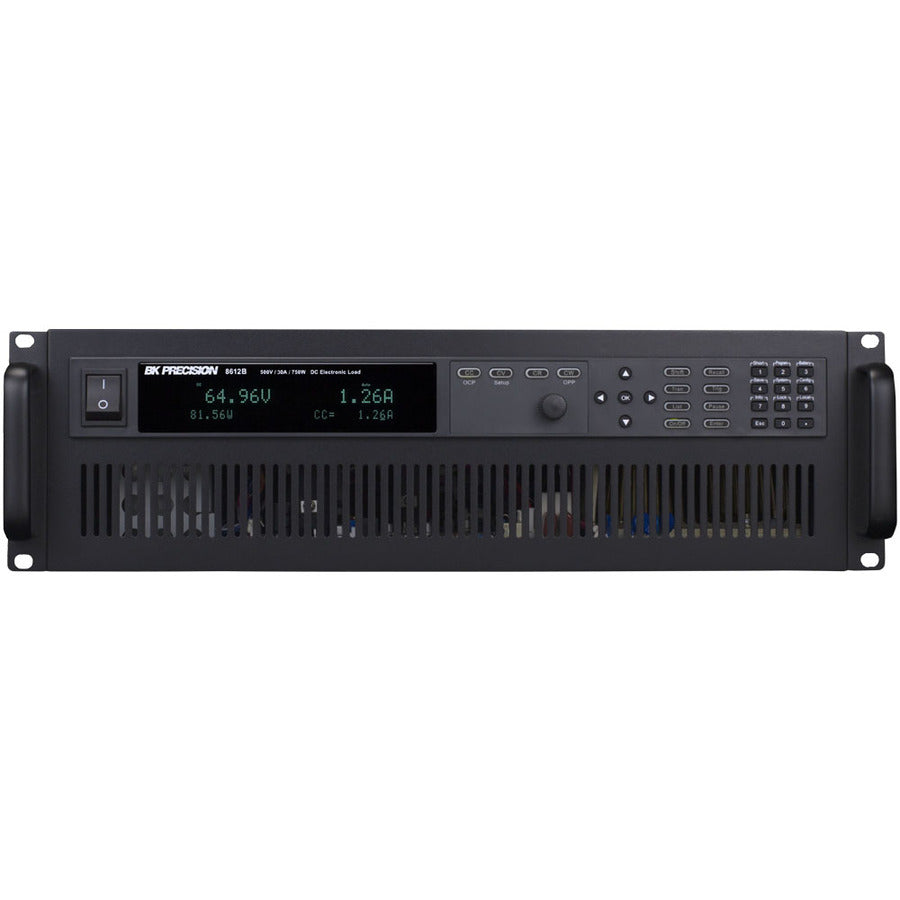

8612B Programmable DC Electronic Load without GPIB
Specs:
- Power: 750 W
- Operating Voltage: 0 - 500 V
- Rated Current: 0 - 30 A
- Form Factor: 3U
- B Models do not included GPIB
8600 Series Features:
- CC/CV/CR/CW operating modes
- Transient mode up to 25 kHz in CC mode
- 16-bit resolution voltage and current measurement
- List mode function
- Adjustable slew rate in CC mode
- Short circuit test
- Built-in battery test function with voltage level, capacity level, and timer stop conditions
- CR-LED mode to simulate the loading behavior of typical LEDs
- Remote voltage sensing to compensate for the effect of voltage drop in wires
- Analog current control and monitoring
- Standard USB (USBTMC-compliant) and RS232 interfaces with SCPI protocol support
- OVP/OCP/OPP/OTP and local/remote reverse voltage (LRV/RRV) protection
Standard Accessories: User manual, power cord, certificate of calibration
The 8612B programmable DC electronic load provides the performance of modular system DC electronic loads in a compact benchtop form factor. With fast transient operation speeds up to 25 kHz, and high 16-bit measurement resolution and accuracy, this DC load can be used for testing and evaluating a variety of DC sources such as DC power supplies, DC-DC converters, batteries, battery chargers, and photovoltaic arrays.
This DC electronic load can operate in constant current (CC), constant voltage (CV), constant resistance (CR), and constant power (CW) mode. It provides flexible triggering capabilities, analog current control and monitoring, and standard USB (USBTMC-compliant) or RS232 serial interfaces for remote communication.
