B&K Precision 4007B DDS Sweep Function Generator, 7 MHz, 1 Channel, 4000B Series
Couldn't load pickup availability
Ask an expert!
B&K Precision
B&K Precision designs and manufactures reliable electronic test and measurement instruments, including power supplies, signal generators, and oscilloscopes for education, research, and industrial applications.
4007B DDS Sweep Function Generator
Specs:
- Sine and square frequency range: 0.1 Hz - 7 MHz
- Triangle frequency range: 0.1 Hz - 1 MHz
Features:
- Sine, square, and triangle/ramp waveform generation
- Linear and logarithmic sweep
- Adjustable duty cycle
- Adjustable DC offset
- Store and recall up to 9 instrument settings
- Output On/Off button
- Overvoltage, overcurrent, and short circuit protection on main output
Supplied Accessories: Power cord, certificate of calibration

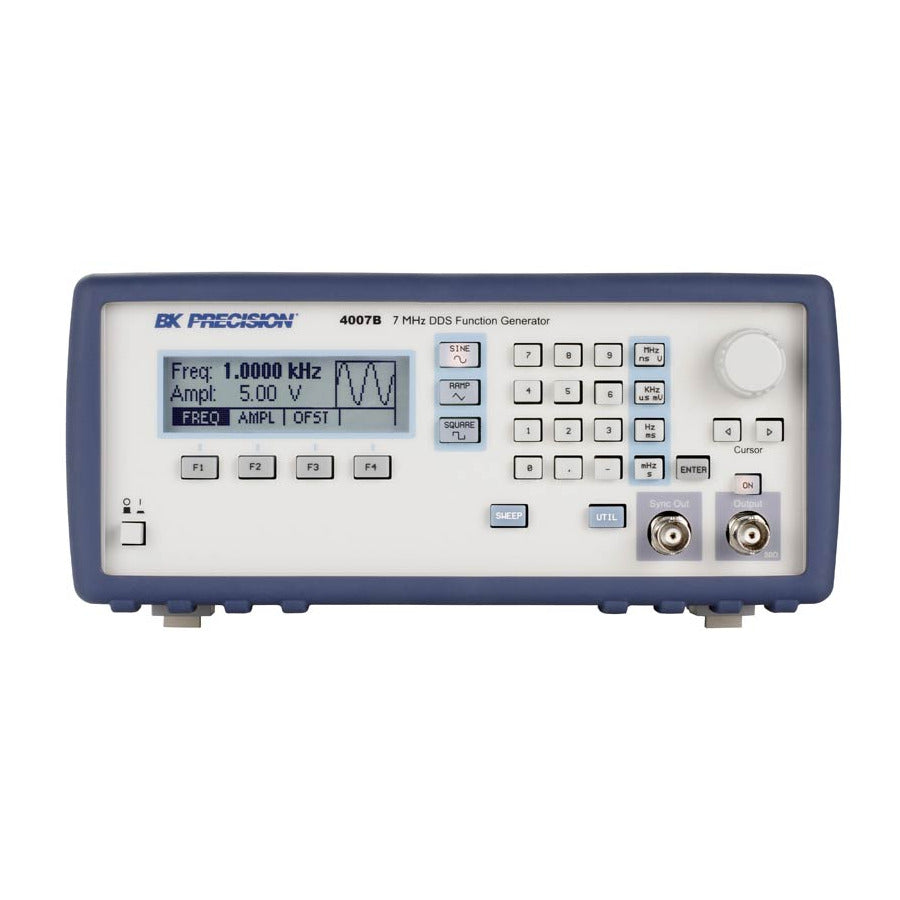

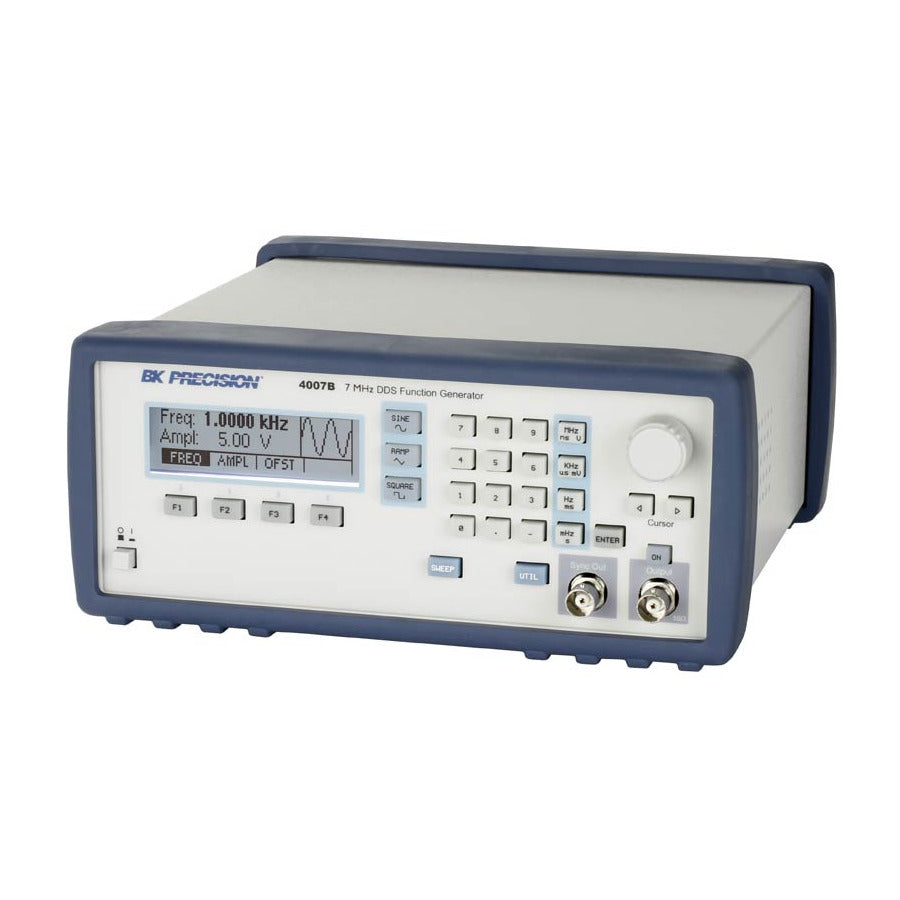

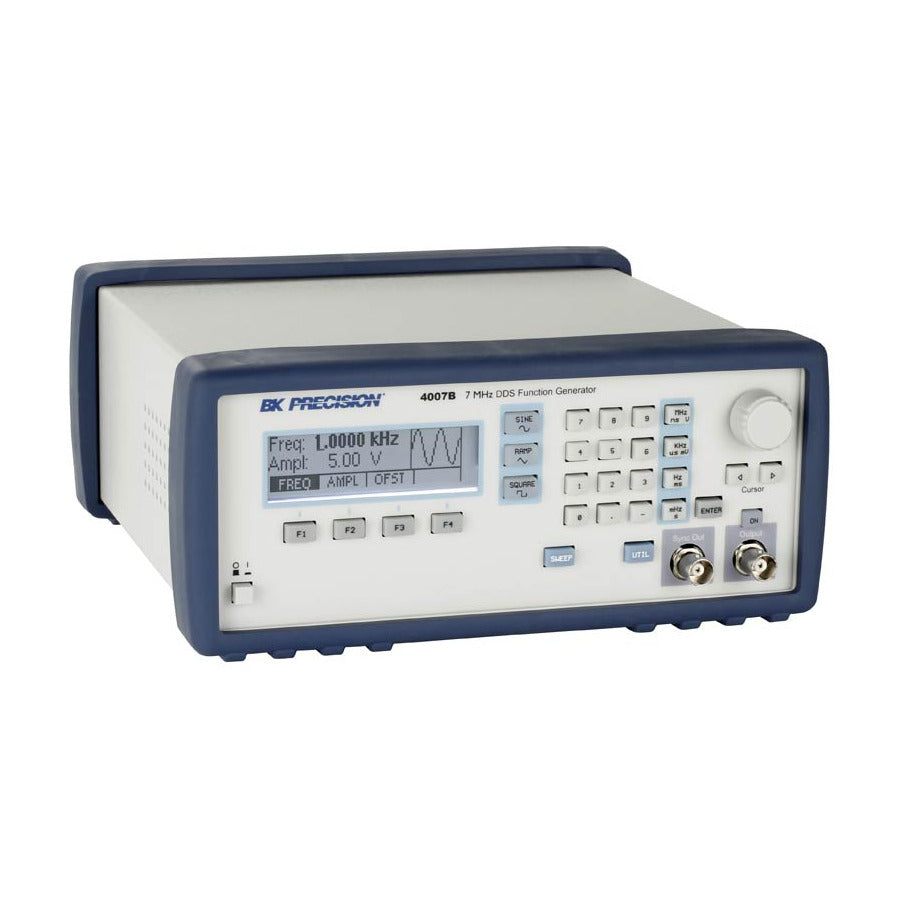

The B&K 4007B is a versatile sweep function generator utilizing an advanced direct digital synthesis (DDS) design. This instrument generates sine, square, and triangle waveforms with high signal precision and stability. It provides variable output voltages from 0 to 10 Vpp into 50 ohms or up to 20 Vpp into an open circuit, and a continuously variable DC offset to inject signals directly into circuits at the correct bias level.
