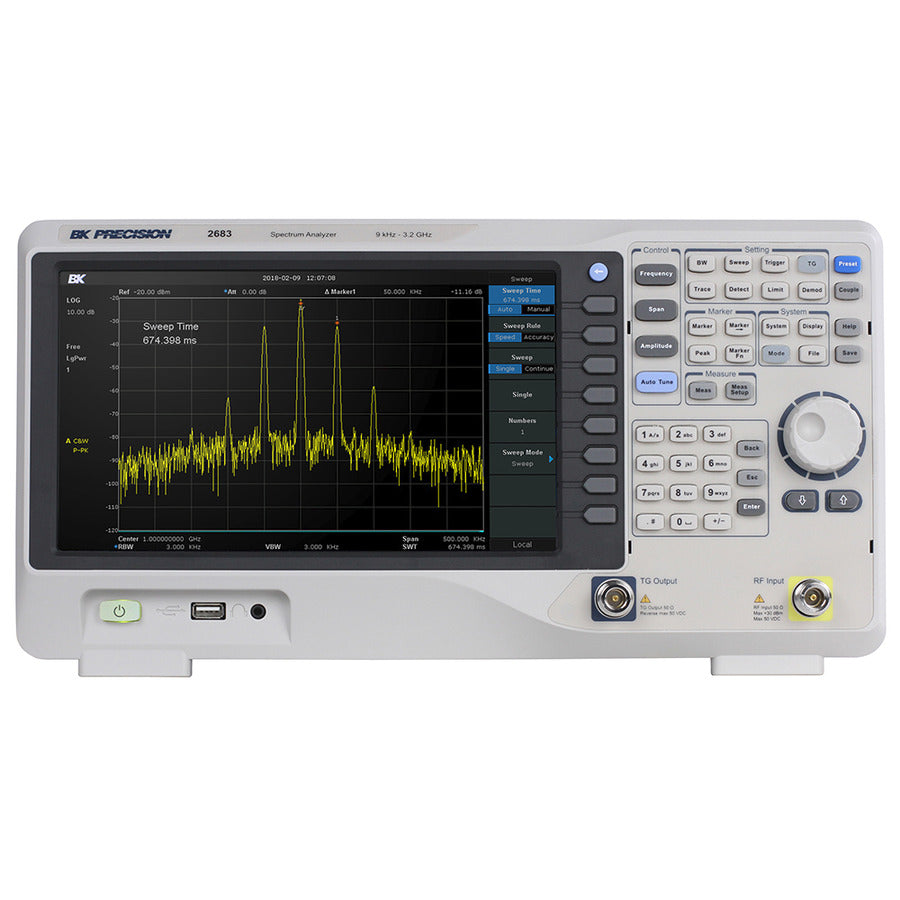

B&K Precision 2683 Spectrum Analyzer w/ Tracking Generator, 3.2GHz, 2680 Series
Couldn't load pickup availability
Ask an expert!
B&K Precision
B&K Precision designs and manufactures reliable electronic test and measurement instruments, including power supplies, signal generators, and oscilloscopes for education, research, and industrial applications.
2683 Spectrum Analyzer with Tracking Generator
2683 Specs:
- Frequency Range: 9 kHz to 3.2 GHz
B&K Precision 2680 Series Key Features:
- High Sensitivity -161 dBm/Hz displayed average noise level (DANL)
- Low phase noise of -98 dBc/Hz at 10 kHz offset
- Low level uncertainty of +/-0.7 dB
- 1 Hz minimum resolution bandwidth (RBW)
- Preamplifier and tracking generator standard on all models
- 10.1-inch wide-screen 1024 x 600 color display
- LAN and USBTMC connectivity
- USB host port to store and recall waveform data, setups, and screen captures
The 2680 series of spectrum analyzers delivers performance and functionality in frequency ranges from 9 kHz to 2.1 GHz, or 3.2 GHz. Each model offers a standard pre-amplifier, tracking generator, and 1 Hz minimum RBW. The included advanced measurements give the user access to even more powerful features. In addition, these analyzers provide low phase noise and displayed average noise level (DANL) to view critical detail in the spectrum which is beautifully displayed on the 10.1-inch widescreen color display.
The reflection measurement option enables VSWR, reflection coefficient, and return loss measurements, while the EMI pre-compliance option enables pre-defined bandwidth set points and quasi-peak detection. These analyzers are ideal for applications in 2-way radio, site surveying, EMI pre-compliance, characterizing the frequency response of RF devices and more.
