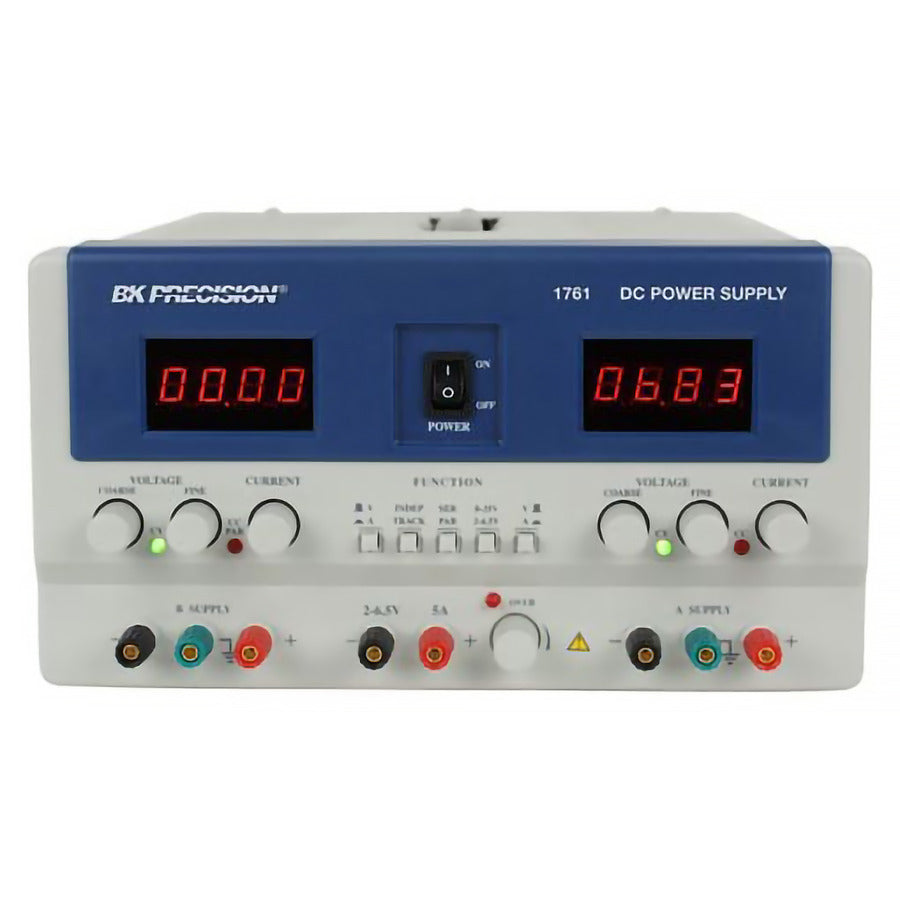

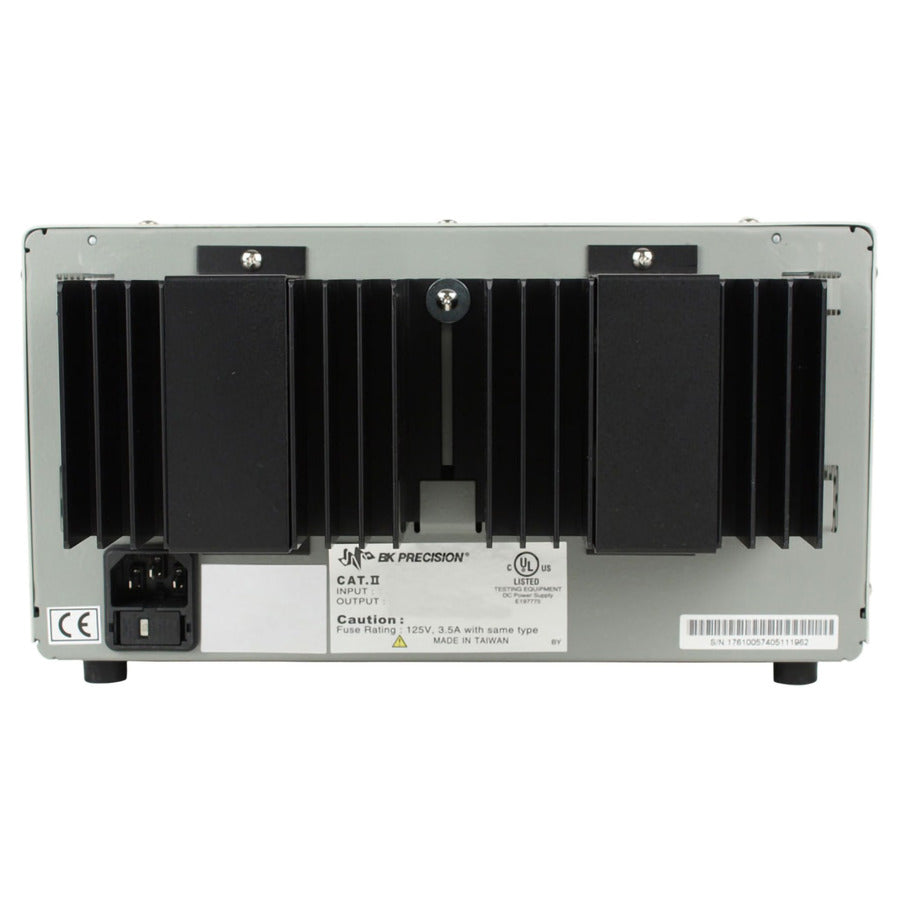

B&K Precision 1761 DC Power Supply, Triple Output, 2x 35V/3A, 2-6.5V/5A, 92W, 1760A Series
Couldn't load pickup availability
Ask an expert!
B&K Precision
B&K Precision designs and manufactures reliable electronic test and measurement instruments, including power supplies, signal generators, and oscilloscopes for education, research, and industrial applications.
Two 0 to 35 VDC, 0-3 A outputs capable of independent, series or parallel operation
One 2 to 6.5 VDC, 5 A output
Switchable series/parallel operation (35 V outputs)
Coarse and fine voltage controls (35 V outputs)
Adjustable current limit controls (35 V outputs)
Two 4 digit LED displays, one reads volts or amps of "B" supply, one reads volts or amps of "A" supply or 2 to 6.5V supply
Unique variable tracking, B track A at 5% to 100%
UL Listed for USA and Canada
2 Year WarrantyBK Precision's new Model 1761 Triple Output DC Power Supply offers outputs with two 0 to 35V, 0 to 3A and one 2 to 6.5V, 5A outputs with two 4 digit LED displays. The 4 digit LED displays offer 10mV and 1mA resolution which provides higher accuracy. This makes it an ideal supply for power sensitive applications. The 1761 is fully overload protected and comes with a two year warranty.
