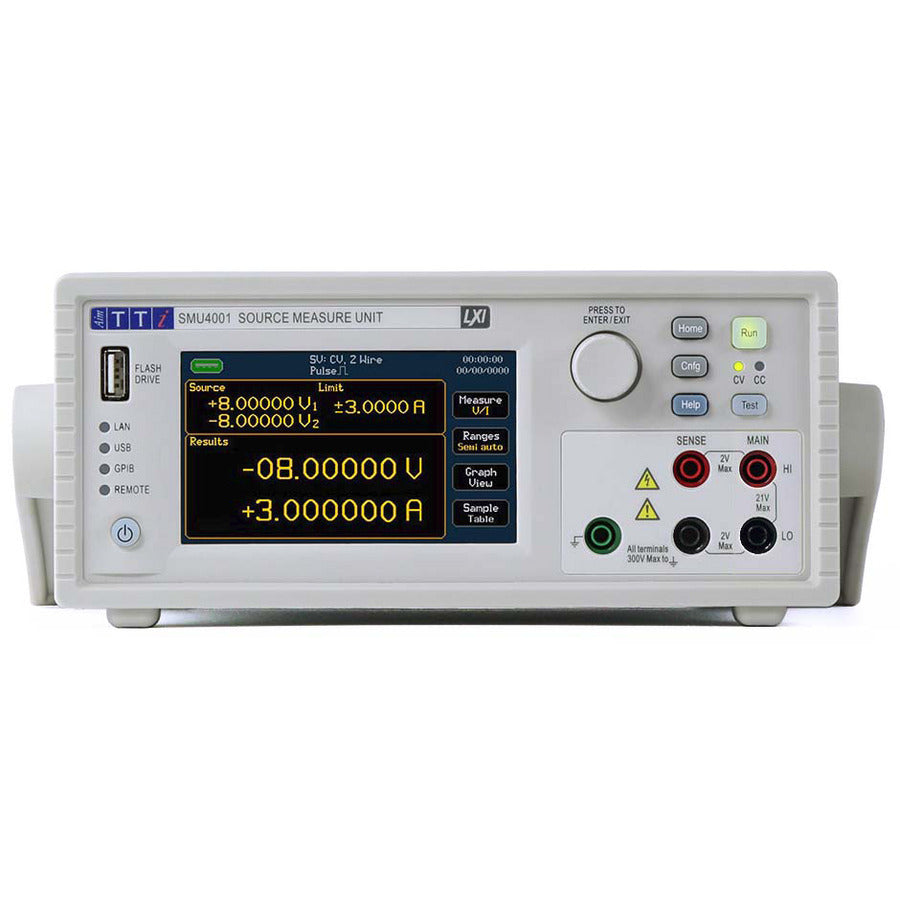

Aim-TTi SMU4001 Source Meter, SMU Instrument, 20V, 3A, 25W, SMU4000 Series
Couldn't load pickup availability
Ask an expert!
Aim TTi
Aim TTi is a leader in high-precision test and measurement instruments, trusted worldwide for accuracy, innovation, and affordability in labs, design, & production
SMU4001 Four Quadrant Source Measure Unit - 20V
Features:
- Current: 3A
- Power: 25W
- Maximum voltage:
± 21V - Voltage range: 20mV to 20V
- 0.015% basic accuracy with 6.5 digit resolution
- 0.1
µ V and 100fA resolution - Sense terminals for 4 wire operation and guard capabilities
- Powerflex technology achieves full instrument output power across the majority of the voltage range
- Internal memory, up to 100k measurements and 100k steps
- Fast measurement speeds up to 200
µ s (5k/s) - 8 EasySet pre-sets included: Power Supply, Current Source, Load, Voltmeter, Ammeter, Ohmmeter, Insulation resistance meter and Leakage current meter
- Advanced features are:
- Advanced sweep engine
- Advanced math features for data handling
- Tolerance band result sorting
- Advanced load modes [LC, LR & LP] with integral volatage dropout setting

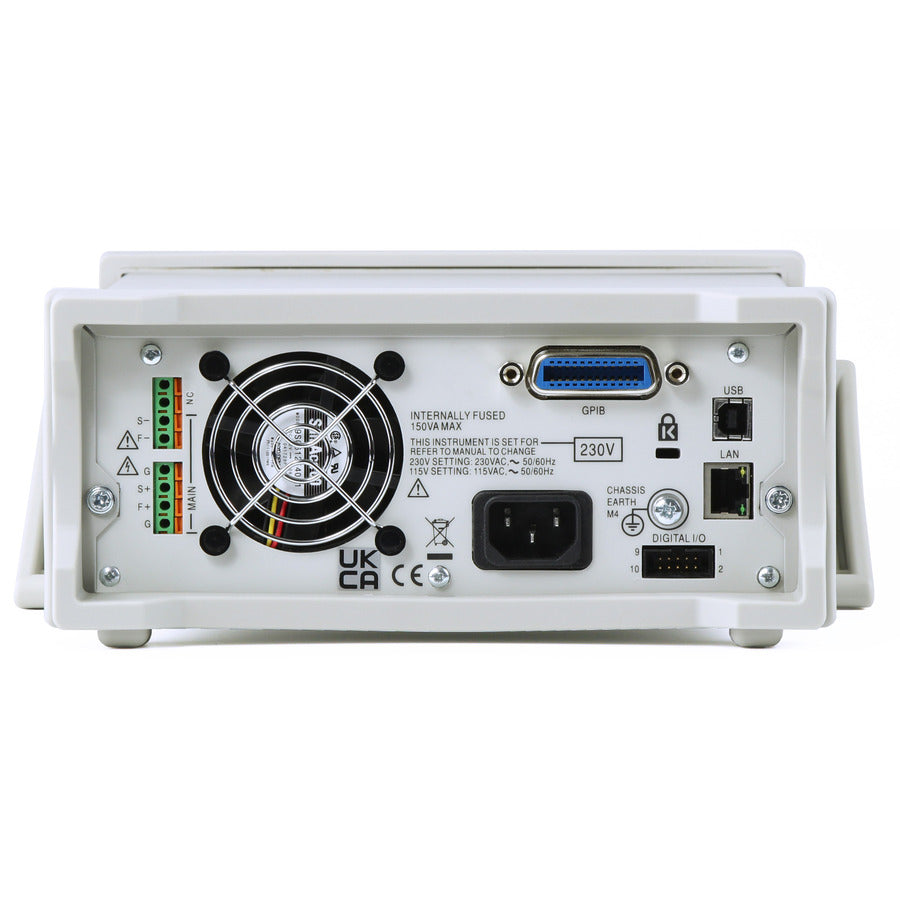

- Interfaces: LAN, LXI Conformance, USB and GPIB (optional)
- Optional SMU Link allows two SMUs to be linked together for synchronous operation
The SMU4000 Series provides class leading performance at a new and affordable price point for a four quadrant SMU. Combining touch-screen technology with an intuitive graphical user interface provides a clear and natural flow through the test and measurement process.
It integrates a fast and agile, four quadrant Voltage/Current source and meter in a compact half rack 2U casing, capable of precisely supplying positive and negative voltages, sourcing or sinking power, while simultaneously measuring both current and voltage for I-V characterising. With fast measurements and low glitch auto-ranging speed, this SMU is the ideal solution for industrial development as well as educational environments.
