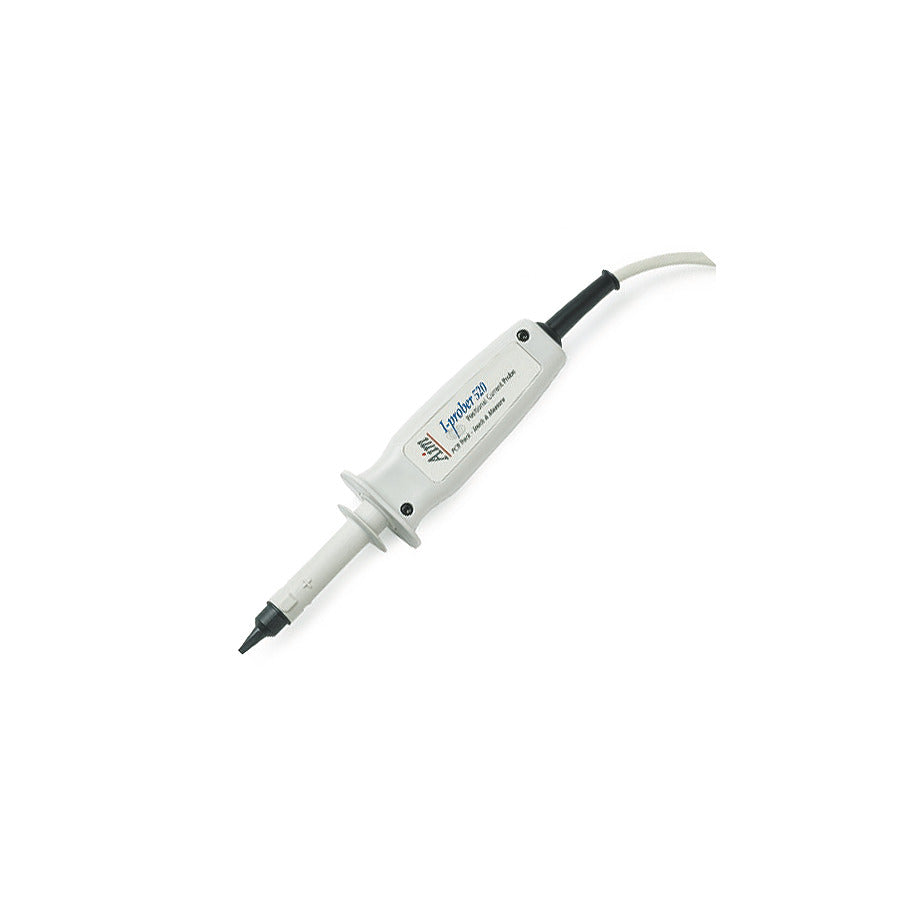

Aim-TTi IPROBER 520 Current Oscilloscope Probe
Features and Specifications
- Current measurement from insulated probing of conductor
- Suitable for observation and measurement of current in PCB tracks, component leads and ground planes
- Wide dynamic range of 10mA to 20A peak to peak
- Wide bandwidth of DC to 5MHz
- Low noise figure equivalent to <6mA rms at full B/W
- Safety rated to 300V Cat II (600V Cat 1)
- Suitable for connection to any oscilloscope
- High accuracy general purpose H-field probe

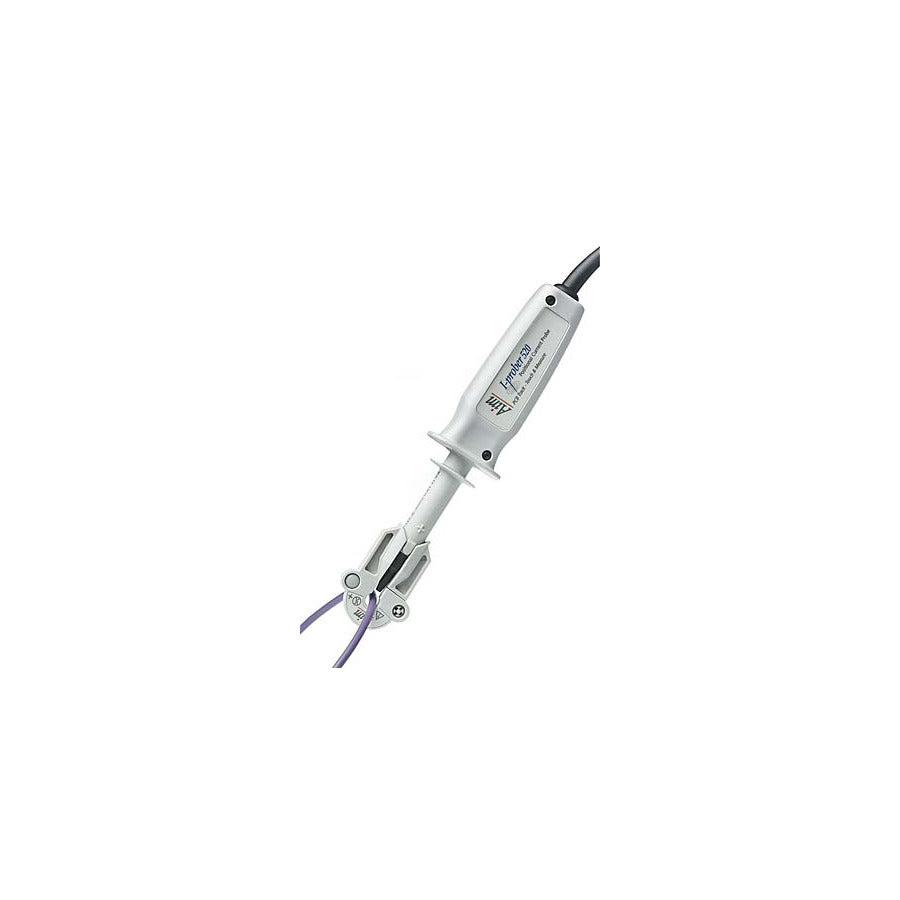

- Converts to 'closed magnetic circuit' current probe

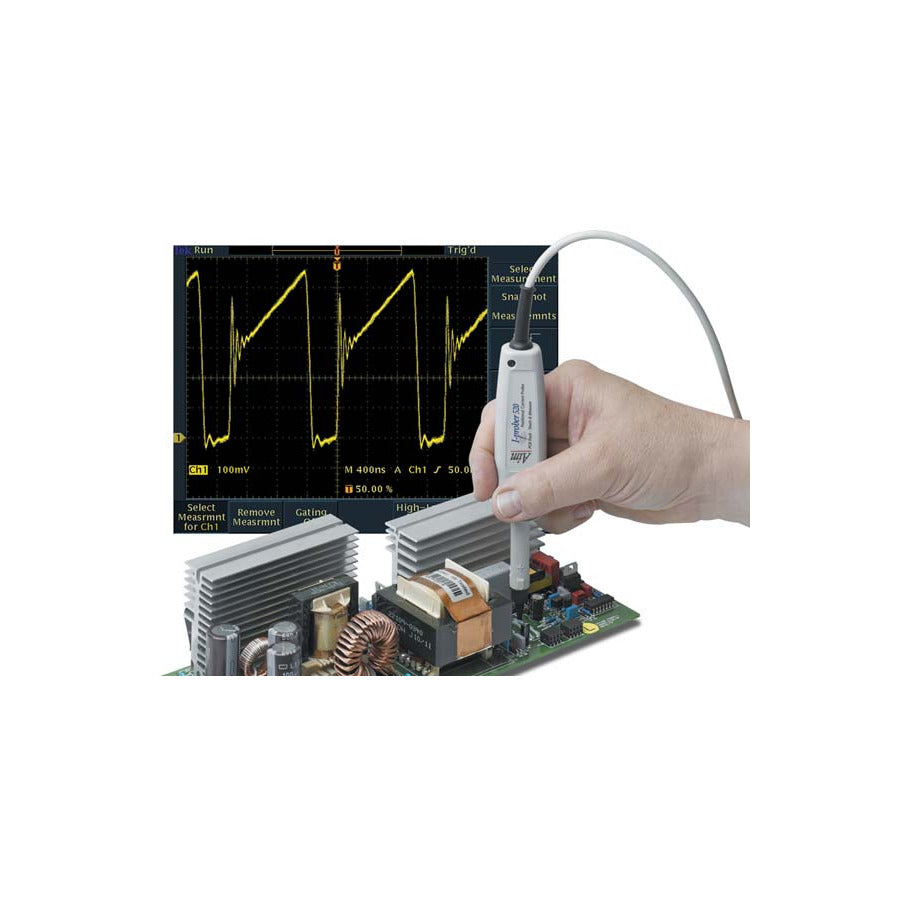

The Aim I-prober 520 is a unique device which is capable of observing and measuring current in PCB tracks and other locations where conventional current probes cannot be used. It is a 'positional' current probe which derives its measurement from the magnetic field at a defined position relative to the current carrying conductor. This enables current observation and measurement from simply placing the insulated tip of the probe onto a PCB track, component leg or ground plane.
What's in the Box

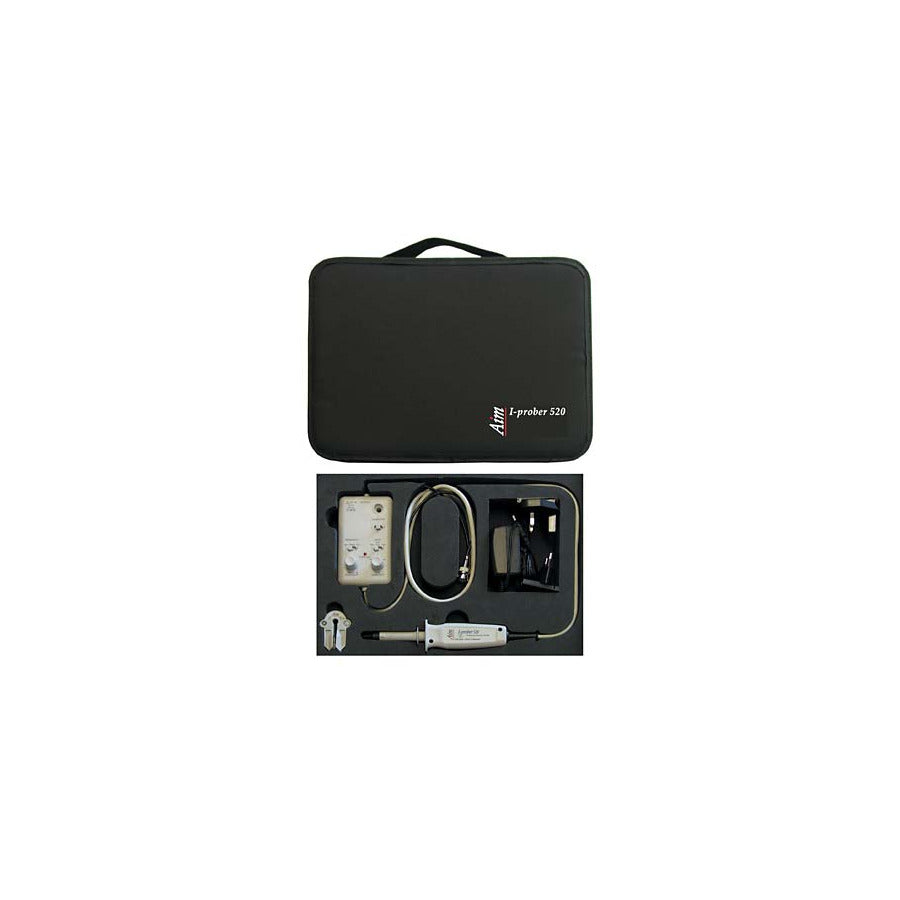

- Fitted Carrying Case which accommodates all of the items
- Power Supply
- Instruction Manual
- Calibration Graph
