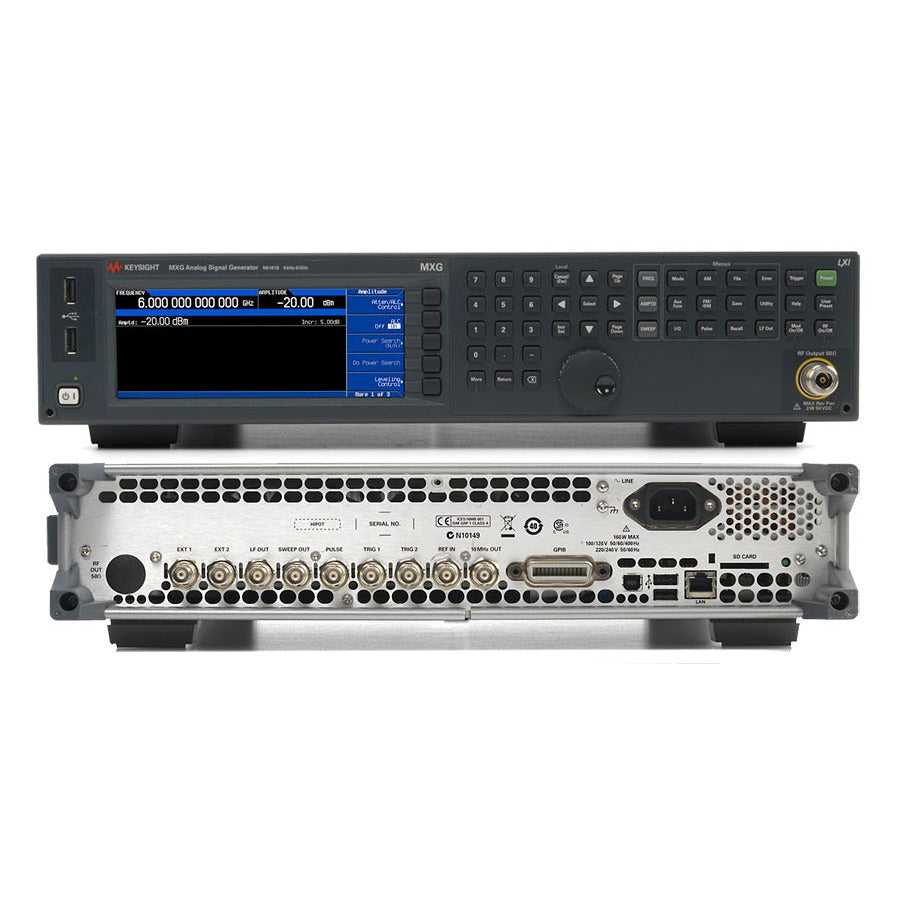

Keysight N5181B 006 303 503 1EQ UNT UNW MXG X-Series HF-Analogsignalgenerator (9 kHz bis 6 GHz)

Miete anfragen

Fragen Sie einen Experten!

E-Mail + 49 ( 0 ) 8104 6675 - 0

Keysight

Keysight Technologies ist ein weltweit führender Anbieter von Mess- und Prüftechnik und entwickelt innovative Lösungen für Kommunikation, Luft- und Raumfahrt, Verteidigung, Automotive und Halbleiteranwendungen. Das Portfolio umfasst Oszilloskope, Signalgeneratoren, Spektrumanalysatoren, Netzwerkanalysatoren, Netzteile, Multimeter und Protokolltestsysteme. Ingenieure und Forscher weltweit vertrauen auf Keysight-Produkte für Entwicklung und Validierung.

Configurations include

  • (503) Frequency range, 9 kHz to 3 GHz
  • (006) Instrument security and removable memory card
  • (303) Multifunction generator
  • (1EQ) Low specified power (<–110 dBm)
  • (UNT) AM, FM, phase modulation
  • (UNW) Narrow pulse modulation

Features

  • Phase noise @ 1 GHz, 20 kHz offset, -146 dBc/Hz
  • Spurious @ 1 GHz, -96 dBc
  • Output power @ 1 GHz, +24 dBm
  • 900-µs switching speed

The pure and precise MXG
Whether you're pushing for more dynamic range or an optimized receiver rejection, the N5181B MXG X-Series RF analog signal generator delivers what you need: phase noise, non-harmonics, output power, and more. Take your devices and designs to the limit with the N5181B.

Generate the signals you need with outstanding hardware performance

  • Test radar receiver sensitivity or characterize ADC or mixer signal-to-noise ratio, with unmatched phase noise and spurious performance
  • Drive receiver front-ends for out-of-band rejection with industry-leading output power
  • Simulate multi-channel composite analog modulation with integrated multifunction generator
  • Create variable RADAR PRI and pulse width with integrated pulse train generator

Maximize resources with low cost of ownership

  • Increase uptime with high mean time between failures (MTBF) based on first-generation MXG track record
  • Minimize downtime and expenses with self-maintenance strategy and low-cost repairs

Meet your toughest requirements

The MXG is designed to keep pace with your ongoing search for greater performance. In consumer wireless, military communications, or radar, performance gains can help you mitigate interference, accelerate data throughput, or enhance receiver sensitivity.
