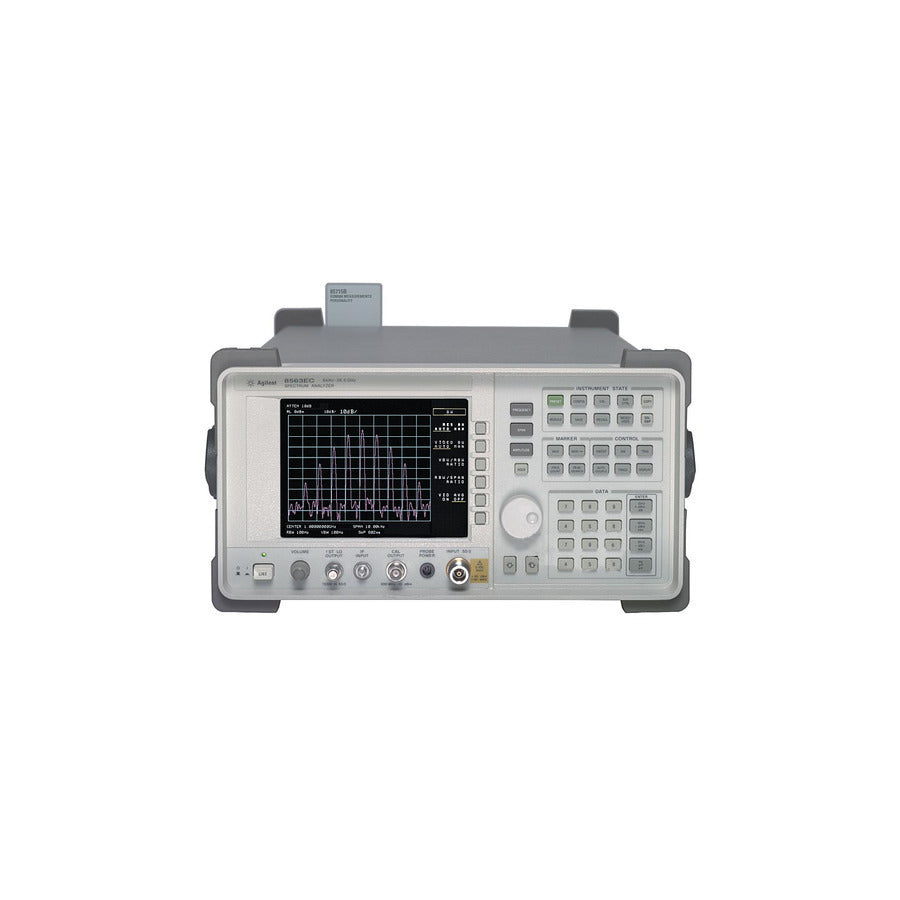

Keysight 8564EC Tragbarer Spektrumanalysator (9 kHz bis 40 GHz)

Miete anfragen

Fragen Sie einen Experten!

E-Mail + 49 ( 0 ) 8104 6675 - 0

Keysight

Keysight Technologies ist ein weltweit führender Anbieter von Mess- und Prüftechnik und entwickelt innovative Lösungen für Kommunikation, Luft- und Raumfahrt, Verteidigung, Automotive und Halbleiteranwendungen. Das Portfolio umfasst Oszilloskope, Signalgeneratoren, Spektrumanalysatoren, Netzwerkanalysatoren, Netzteile, Multimeter und Protokolltestsysteme. Ingenieure und Forscher weltweit vertrauen auf Keysight-Produkte für Entwicklung und Validierung.

8564EC Millimeter-Wave Spectrum Analyzer (9 kHz to 40 GHz)

  • Series models from 30 Hz to 2.9 GHz - 50 GHz
  • Outstanding performance for sensitivity, phase noise, dynamic range and VSWR
  • Color display
  • Continuous 30 Hz to 6.5 GHz sweep
  • Fast digital resolution bandwidths of 1, 3, 10, 30 and 100 Hz
  • Adjacent channel power, channel power, carrier power, occupied bandwidth percentage and time-gated measurements standard
  • Precision timebase and 1 Hz counter resolution
  • MIL-PRF-28800, class 3 rugged
  • Measurement personalities for digital radio and phase noise measurements

The Keysight 8560EC Series portable, color display RF spectrum analyzers offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. This analyzer combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a package built to withstand environmental conditions. It offers a complete solution for adjacent-channel power (ACP) testing of burst carrier signals using digital modulation, and the ability to measure occupied bandwidth percentage.

Time-gated signal analysis allows you to easily measure time-varying signals such as pulsed RF, time-division multiple access, interleaved, and burst-modulated. For millimeter applications that don't require full microwave coverage, the 8560EC Series with the Keysight 11970 series harmonic mixers or Keysight 11974 series preselected mixers is a lower-cost solution.
