Keysight 35670A 1C2 1D0 1D1 1D2 1D3 1D4 AY6 UFC Dynamischer Signalanalysator (2 Hz bis 102,4 kHz)

Miete anfragen

Fragen Sie einen Experten!

E-Mail + 49 ( 0 ) 8104 6675 - 0

Keysight

Keysight Technologies ist ein weltweit führender Anbieter von Mess- und Prüftechnik und entwickelt innovative Lösungen für Kommunikation, Luft- und Raumfahrt, Verteidigung, Automotive und Halbleiteranwendungen. Das Portfolio umfasst Oszilloskope, Signalgeneratoren, Spektrumanalysatoren, Netzwerkanalysatoren, Netzteile, Multimeter und Protokolltestsysteme. Ingenieure und Forscher weltweit vertrauen auf Keysight-Produkte für Entwicklung und Validierung.

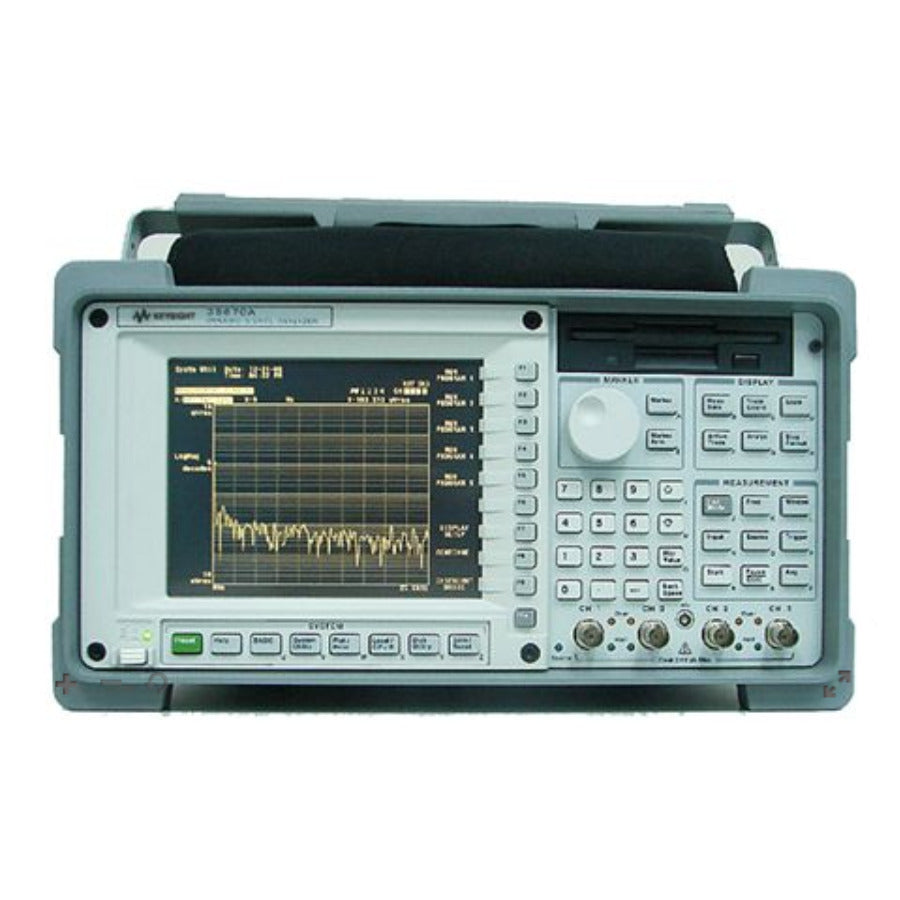

Keysight 35670A/1C2/1D0/1D1/1D2/1D3/1D4/AY6/UFC Dynamic Signal Analyzer, 4 Channel, 25.6kHz, Order Tracking and Real-Time Octave

The Keysight 35670A configured with options 1C2, 1D0, 1D1, 1D2, 1D3, 1D4, AY6 and UFC is a four-channel FFT-based dynamic signal analyzer for vibration analysis, acoustics, rotating machinery diagnostics, control-system characterization, and spectrum/network analysis. The AY6 option provides four input channels with up to 25.6 kHz maximum frequency in four-channel operation.

Configurations Include

  • 1C2 - Program with Instrument BASIC
    Adds Instrument BASIC programming capability for automation, custom interfaces, and system integration
  • 1D0 - Computed Order analysis intrument mode
    Supports rotating machinery analysis using computed order tracking.
  • 1D1 - Real-time Octave analysis instrumnet mode
    Provides real-time octave and fractional-octave measurements for acoustics and noise analysis.
  • 1D2 - Swept Sine instrument mode
    Provides real-time octave and fractional-octave measurements for acoustics and noise analysis.
  • 1D3 - Curve fit/synthesis
    Provides modal analysis tools including curve fitting and synthesis.
  • 1D4 - Arbitrary waveform source
    Adds arbitrary source generation for advanced excitation signals.
  • AY6 - Adds two channels (four total)
    Expands the analyzer to four input channels.
  • UFC - Adds 8 MB RAM upgrade
    Adds expanded memory capacity.

Key Specs

  • Frequency Range: 122 µHz to 102.4 kHz (1 channel), 51.2 kHz (2 channel), or 25.6 kHz (4 channel with AY6)
  • Dynamic Range: 90 dB
  • Accuracy: +/- 0.15 dB
  • Real-time Bandwidth: 25.6 kHz / 1 channel
  • Resolution: 100, 200, 400, 800 lines
  • Time Capture: > 6 Msamples
  • Source Types: Random, burst random, periodic chirp, burst chirp, pink noise, sine, swept-sine, arbitrary
