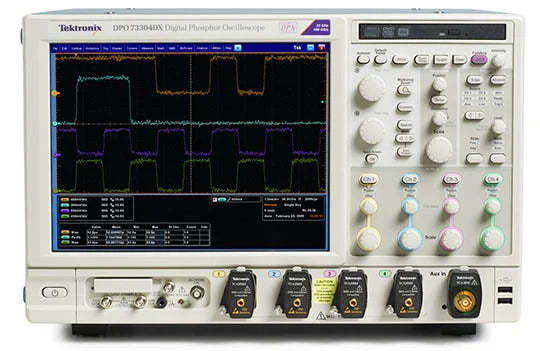

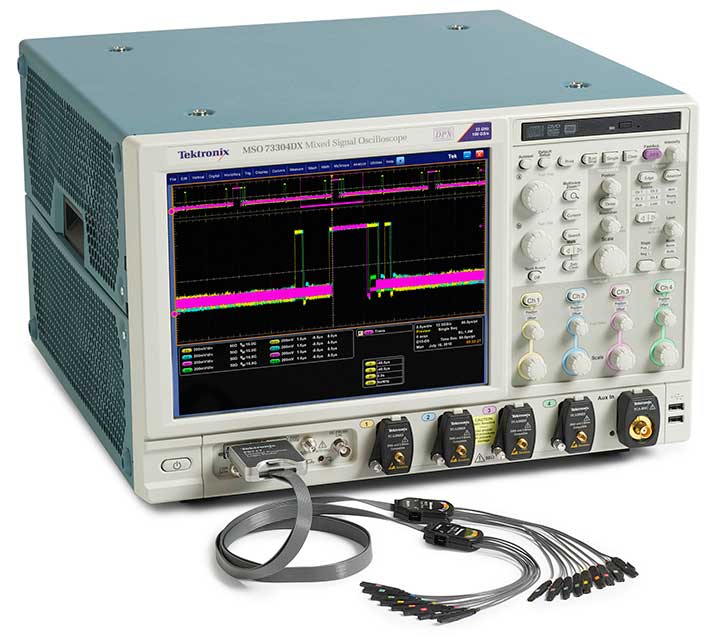

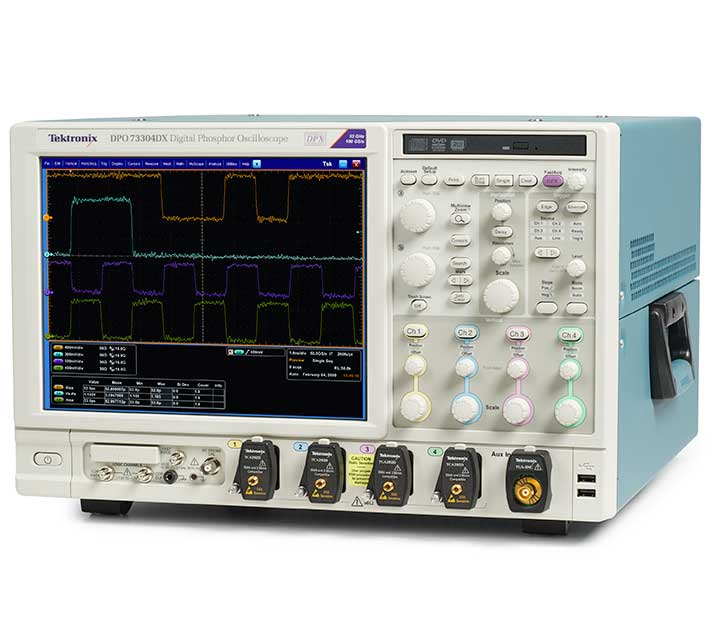

Startseite » Alle Vermietungen » Tektronix MSO72504DX 5XL ASM DDRA DJA MSOU MTH PCE3 PTH1 SAS3 SAS3-TSG SAS3-TSGW SLA SR-810B SR-CUST SR-EMBD SR-PCIE STU VET Win7 70000er Serie DX Mixed Signal Oszilloskop (25 GHz, 4 Kanäle)
Tektronix
SKU: 21122.3 | MPN: MSO72504DX 5XL ASM DDRA DJA MSOU MTH PCE3 PTH1 SAS3 SAS3-TSG SAS3-TSGW SLA SR-810B SR-CUST SR-EMBD SR-PCIE STU VET Win7

Tektronix MSO72504DX 5XL ASM DDRA DJA MSOU MTH PCE3 PTH1 SAS3 SAS3-TSG SAS3-TSGW SLA SR-810B SR-CUST SR-EMBD SR-PCIE STU VET Win7 70000er Serie DX Mixed Signal Oszilloskop (25 GHz, 4 Kanäle)

Miete anfragen

Ask an expert!

E-Mail + 49 ( 0 ) 8104 6675 - 0

Tektronix

Tektronix ist ein weltweit führender Anbieter von Test- und Messtechnik und entwickelt innovative Lösungen für die Entwicklung, Validierung und Fehlersuche elektronischer Systeme. Das Portfolio umfasst Oszilloskope, Signalgeneratoren, Spektrumanalysatoren, Leistungsanalysatoren und Protokolltestsysteme für die Elektronik-, Luft- und Raumfahrt-, Automobil- und Telekommunikationsindustrie. Ingenieure weltweit vertrauen auf Tektronix.

See your real signal

Excellent signal fidelity, low noise, and high effective number of bits (ENOB) provides confidence you are seeing your real signal and measuring it precisely. High signal-to-noise ratio and low internal noise floor enable you to perform precise characterization of your designs.


Highlights
  • Bandwidth enhancement eliminates imperfections in frequency response to the probe tip
  • Low jitter noise floor and high vertical accuracy provide additional margin in your measurements

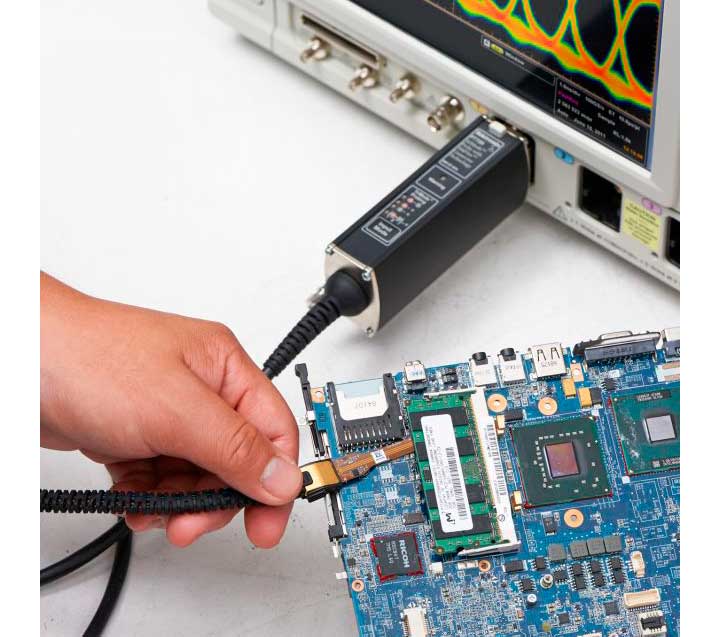

  • Wide range of probes simplify complex measurement setups and maintain signal integrity
  • Compare optical and electrical signal timing on one screen with calibrated

Reduce debug time

From first power-on through operational checks, MSO/DPO70000 Series provides features you need to find problems fast. An industry-leading waveform capture rate and Pinpoint® triggering make you efficient at tracking down and capturing intermittent faults.


Highlights
  • FastAcq keeps up with your changing signals to show true system behavior including elusive faults
  • Quickly find invalid state or bus sequences with parallel/serial bus decoding/triggering
  • iCapture™ easily verifies analog characteristics of digital signals without changing connections
  • Visual Trigger saves hours of capturing and manually searching through acquisitions to find critical events and complete your debug efforts
  • Automate testing with Python packages.

Measurement and analysis tools that keep you on track

Application support packages provide automated compliance testing, insightful debugging tools and the extensive signal connection options you need to verify and certify your latest design.

Highlights

  • DPOJET: the most comprehensive, flexible measurement tool available
  • SDLA: the most powerful, complete tool for analyzing and compensating for signal affects in serial data links
  • Broadest range of standards support, including I2C, SPI, RS-232, FlexRay, MIPI, DisplayPort, HDMI, PAM4, PCIe Gen3/Gen4/Gen5, SATA/SAS, USB, Type-C, 10/100/1000BaseT to 10G/100G Ethernet
  • Powerful debugging tools to quickly uncover/fix design challenges
  • Optical measurements, such as Extinction Ratio (ER), Average Optical Power (AOP), Optical Modulation Amplitude (OMA), Optical High/Optical Low value
