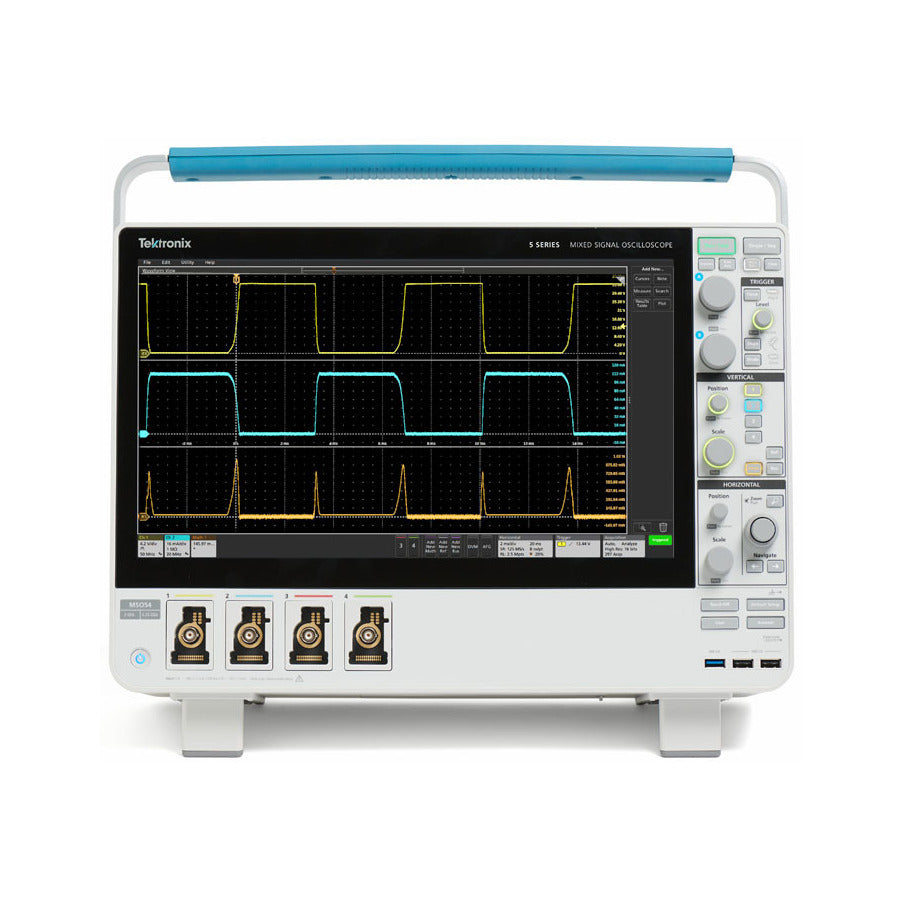

Tektronix MSO54 5-BW-2000 Mixed-Signal-Oszilloskop der 5er-Serie (1 GHz, 4 Kanäle)

Miete anfragen

Ask an expert!

E-Mail + 49 ( 0 ) 8104 6675 - 0

Tektronix

Tektronix ist ein weltweit führender Anbieter von Test- und Messtechnik und entwickelt innovative Lösungen für die Entwicklung, Validierung und Fehlersuche elektronischer Systeme. Das Portfolio umfasst Oszilloskope, Signalgeneratoren, Spektrumanalysatoren, Leistungsanalysatoren und Protokolltestsysteme für die Elektronik-, Luft- und Raumfahrt-, Automobil- und Telekommunikationsindustrie. Ingenieure weltweit vertrauen auf Tektronix.

Key performance specifications
With a remarkably innovative pinch-swipe-zoom touchscreen user interface, the industry's largest high-definition display, and 4, 6, or 8 FlexChannel® inputs that let you measure one analog or eight digital signals per channel, the 5 Series MSO is ready for today’s toughest challenges, and tomorrow’s too. It sets a new standard for performance, analysis, and overall user experience.

  • Input channels
    • 4, 6, or 8 FlexChannel® inputs
    • Each FlexChannel provides:
      • One analog signal that can be displayed as a waveform view, a spectral view, or both simultaneously
      • Eight digital logic inputs with TLP058 logic probe
  • Bandwidth (all analog channels)
    • 350 MHz, 500 MHz, 1 GHz, 2 GHz (upgradable)
  • Sample rate (all analog / digital channels)
    • Real-time: 6.25 GS/s
    • Interpolated: 500 GS/s
  • Record length (all analog / digital channels)
    • 62.5 Mpoints standard
    • 125, 250, 500 Mpoints, (optional and upgradable)
  • Waveform capture rate
    • >500,000 waveforms/s
  • Vertical resolution
    • 12-bit ADC
    • Up to 16-bits in High Res mode

Standard trigger types
Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Parallel Bus, Sequence, Visual Trigger, Video (optional), RF vs. Time (optional)

Standard analysis

  • Cursors: Waveform, V Bars, H Bars, V&H Bars
  • Measurements: 36
  • Spectrum View: Frequency-domain analysis with independent controls for frequency and time domains
  • FastFrame™: Segmented memory acquisition mode with maximum trigger rate >5,000,000 waveforms per second
  • Plots: Time Trend, Histogram, Spectrum and Phase Noise
  • Math: Basic waveform arithmetic, FFT, and advanced equation editor
  • Search: Search on any trigger criteria
  • Jitter: TIE and Phase Noise
