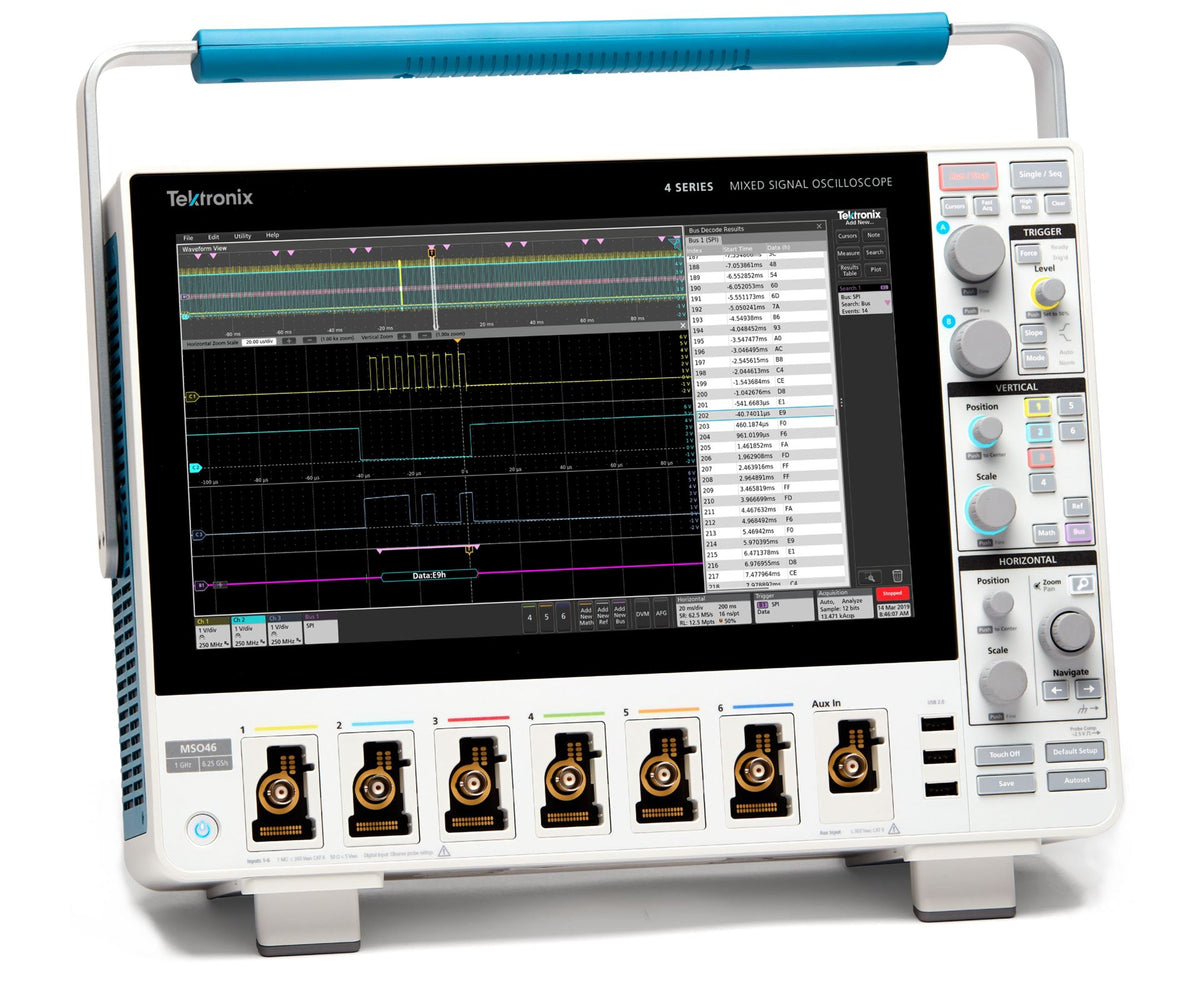

Tektronix MSO44 4-BW-1000 4-Kanal-Mischsignaloszilloskop (1,5 GHz)

Preis a. A.
Need this Equipment?

We don't hold stock of this product, but we can source it for you! Request a quote below and we will get back to you.

Ask an expert!

E-Mail + 49 ( 0 ) 8104 6675 - 0

Tektronix

Tektronix ist ein weltweit führender Anbieter von Test- und Messtechnik und entwickelt innovative Lösungen für die Entwicklung, Validierung und Fehlersuche elektronischer Systeme. Das Portfolio umfasst Oszilloskope, Signalgeneratoren, Spektrumanalysatoren, Leistungsanalysatoren und Protokolltestsysteme für die Elektronik-, Luft- und Raumfahrt-, Automobil- und Telekommunikationsindustrie. Ingenieure weltweit vertrauen auf Tektronix.

Key performance specifications

With a remarkably innovative pinch-swipe-zoom touchscreen user interface, a high-definition display, and 4 or 6 FlexChannel® inputs that let you measure one analog or eight digital signals per channel, the 4 Series MSO is ready for today’s toughest challenges, and tomorrow’s too. It sets a new standard for performance, analysis, and overall user experience.

Input channels

  • 4 or 6 FlexChannel® inputs
  • Each FlexChannel provides:
    • One analog signal that can be displayed as a waveform view, a spectrum view, or both simultaneously
    • Eight digital logic inputs with TLP058 logic probe

Bandwidth (all analog channels)

  • 200 MHz, 350 MHz, 500 MHz, 1 GHz, 1.5 GHz (upgradable)

Sample rate (all analog / digital channels)

  • Real-time: 6.25 GS/s

Record length (all analog / digital channels)

  • 31.25 Mpoints standard (62.5 Mpoints optional upgrade)

Waveform capture rate

  • >500,000 waveforms/s

Vertical resolution

  • 12-bit ADC
  • Up to 16-bits in High Res mode

Standard trigger types

  • Edge, Pulse Width, Runt, Timeout, Window, Logic, Setup & Hold, Rise/Fall Time, Parallel Bus, Sequence, Visual Trigger, Video (optional), RF vs. Time (optional)
  • Auxiliary Trigger ≤300 VRMS (Edge Trigger only)

Standard analysis

  • Cursors: Waveform, V Bars, H Bars, V&H Bars
  • Measurements: 36
  • Spectrum View: Frequency-domain analysis with independent controls for frequency and time domains
  • FastFrame™: Segmented memory acquisition mode with maximum trigger rate >5,000,000 waveforms per second

  • Plots: Time Trend, Histogram, and Spectrum

  • Math: Basic waveform arithmetic, FFT, and advanced equation editor
  • Search: Search on any trigger criteria

Optional analysis

  • Advanced Spectrum View
  • RF vs. Time traces, triggers, Spectrograms, and IQ capture
  • Mask/Limit Testing
  • Advanced Power Measurements and Analysis
  • Three-Phase Electrical Analysis (6 channel model only)

Optional protocol trigger, decode, and analysis

I2C, SPI, eSPI, I3C, RS-232/422/485/UART, SPMI, SMBus, CAN, CAN FD, CAN XL, LIN, FlexRay, SENT, PSI5, CXPI, USB 2.0, eUSB2.0, Ethernet, EtherCAT, Audio, MIL-STD-1553, ARINC 429, Spacewire, NRZ, Manchester, SVID, SDLC, 1-Wire, MDIO, and NFC

Arbitrary/Function Generator (optional and upgradable)

  • MHz waveform generation
  • Waveform Types: Arbitrary, Sine, Square, Pulse, Ramp, Triangle, DC Level, Gaussian, Lorentz, Exponential Rise/Fall, Sin(x)/x, Random Noise, Haversine, Cardiac

Digital voltmeter (free with product registration)

  • 4-digit AC RMS, DC, and DC+AC RMS voltage measurements

Trigger frequency counter (free with product registration)

  • 8-digit

Display

  • 13.3 inch (338 mm) TFT color
  • High Definition (1,920 x 1,080) resolution
  • Capacitive (multi-touch) touchscreen

Connectivity

  • USB 2.0 Host, USB 2.0 Device (5 ports); LAN (10/100/1000 Base-T Ethernet); HDMI; Requires connection to high definition display (1,920 x 1,080 resolution)

Warranty

  • 3 years standard

Dimensions

  • 11.299 in (286.99 mm) H x 15.9 in (405 mm) W x 6.1 in (155 mm) D
  • Weight: < 16.8 lbs. (7.6 kg)
