Startseite » Alle Vermietungen » Tektronix DPO7OE1 FC/PC DPO7000er-Serie optischer Tastkopf
Tektronix
SKU: 32425.50 | MPN: DPO7OE1 FC/PC

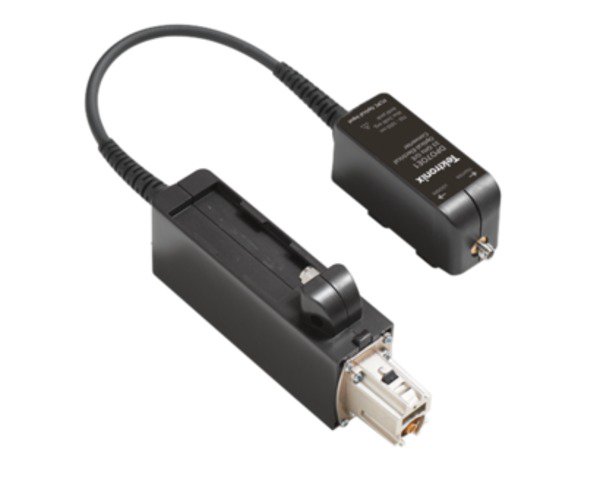

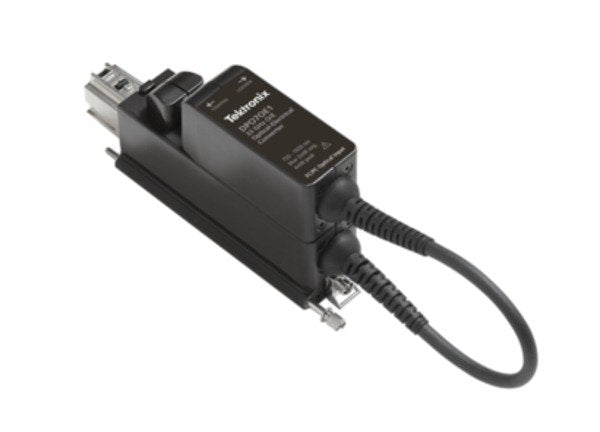

Tektronix DPO7OE1 FC/PC DPO7000er-Serie optischer Tastkopf

Preis a. A.
Need this Equipment?

We don't hold stock of this product, but we can source it for you! Request a quote below and we will get back to you.

Ask an expert!

E-Mail + 49 ( 0 ) 8104 6675 - 0

Tektronix

Tektronix ist ein weltweit führender Anbieter von Test- und Messtechnik und entwickelt innovative Lösungen für die Entwicklung, Validierung und Fehlersuche elektronischer Systeme. Das Portfolio umfasst Oszilloskope, Signalgeneratoren, Spektrumanalysatoren, Leistungsanalysatoren und Protokolltestsysteme für die Elektronik-, Luft- und Raumfahrt-, Automobil- und Telekommunikationsindustrie. Ingenieure weltweit vertrauen auf Tektronix.

The DPO7OE Series Optical probes can be used as Optical Reference Receivers (ORR) for high speed serial data signals (using selectable Bessel-Thomson ORR filters), or can be used as a conventional O/E converter for general wide-bandwidth optical signal acquisition. The DPO7OE Series is compatible with DPO/MSO70000 C/DX/SX models. Connect to TekConnect channels for up to 33 GHz electrical bandwidth. Connected to ATI channels, the DPO7OE1 provides up to 42 GHz electrical response; the DPO7OE2 provides up to 59 GHz electrical bandwidth response.

Features and benefits
  • Accurate Optical Reference Receiver (ORR) filters for 25 GBd, 26 GBd, 28 GBd, and 53 GBd optical networking standards ensure highest measurement accuracy and correlation
  • Versatile design delivers Bessel-Thompson ORR specified bandwidths or unfiltered response up to 59 GHz on multiple channels
  • Broad wavelength with FC/PC or FC/APC connector options
  • High sensitivity and low noise provide best SNR for high-speed signal analysis
  • Enables deep analysis of PAM4 and PAM2 (NRZ) signaling, equalization and error detection/isolation
  • Compatible with ATI and TekConnect® channels for maximum performance or channel density
Applications
  • Datacenter networking equipment design validation
  • Research - Characterization of laser-based velocity measurement system (e.g. PDV, BLR) and other optical phenomena
  • System debug of optical interfaces using a real time oscilloscope's unique debug features
