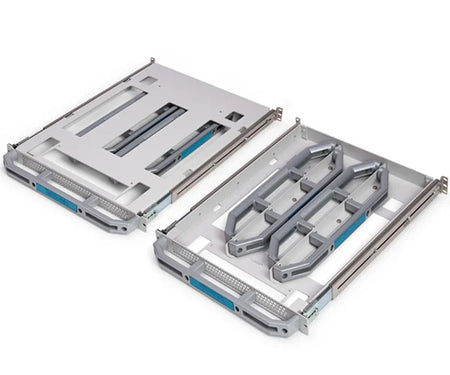

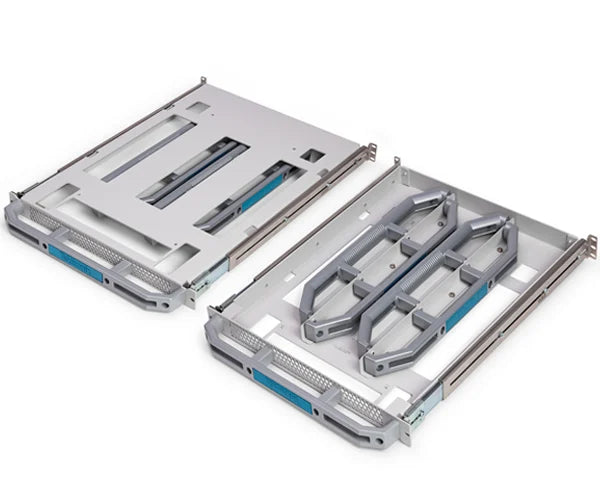

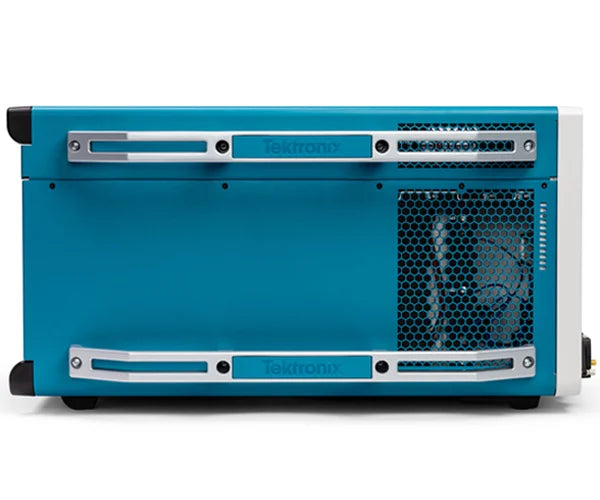

Tektronix DPO714AX 7-BW-8000 7-WIN T6PLUS 70000 SX Series ATI Performance-Oszilloskop

Miete anfragen

Ask an expert!

E-Mail + 49 ( 0 ) 8104 6675 - 0

Tektronix

Tektronix ist ein weltweit führender Anbieter von Test- und Messtechnik und entwickelt innovative Lösungen für die Entwicklung, Validierung und Fehlersuche elektronischer Systeme. Das Portfolio umfasst Oszilloskope, Signalgeneratoren, Spektrumanalysatoren, Leistungsanalysatoren und Protokolltestsysteme für die Elektronik-, Luft- und Raumfahrt-, Automobil- und Telekommunikationsindustrie. Ingenieure weltweit vertrauen auf Tektronix.

Get to know the 7 Series DPO

  • Intuitive TekScope user interface minimizes learning curve
  • Maximize test margins with lowest noise and highest Effective Number of Bits (ENOB)
  • Powerful measurement system
  • Jitter measurements made fast and accurate
  • 10x faster data transfers saves time

Low Noise, High ENOB - Unmatched Measurement Results

Maximize test margins with the low noise and high effective number of bits (ENOB) of the 7 Series DPO.  Superior measurement accuracy, sensitivity and precision are enabled with our proprietary Tek85 low noise preamp, Tek79 12-bit ADC and advanced DSP algorithms providing more accurate capture and measurement of the signals of interest.

Highlights

  • Resolve and measure low amplitude signals with low noise (523 µV at 8 GHz (0.10% FS) to 1.13 mV at 25 GHz (0.23% FS), 500 mV full scale)
  • High Effective Number of Bits (ENOB) enables high resolution signal digitization (7.5 bits at 8 GHz to 6.5 bits at 25 GHz, 125 GS/s, 500 mV full scale, signal 90% of full scale)
  • QuietChannel™ Technology further minimizes the noise from the oscilloscope signal path utilizing active CTLE (Continuous Time Linear Equalization) to compensate for channel loss
  • Fully automatic, built-in Signal Path Compensation (SPC) requires no user intervention to ensure optimal measurement accuracy by adjusting internal gain, offset, and frequency response to ensure precise signal capture and high effective number of bits (ENOB)7 Series DPO data transfer rate graph using the SFP+ 10G LAN port and TekHSI

Minimize Test Times with 10x Throughput

With the built-in 10 Gbps SFP+ port and the TekHSI™ technology, the 7 Series DPO allows for up to 10x throughput of large waveform datasets to a PC enabling acquisition and analysis to be performed in parallel for faster workflows.

Highlights

  • TekHSI technology is based on gRPC low latency framework to enable fetch and streaming data transfer almost as fast as the physical bandwidth of the link. Use with available C# and Python libraries.

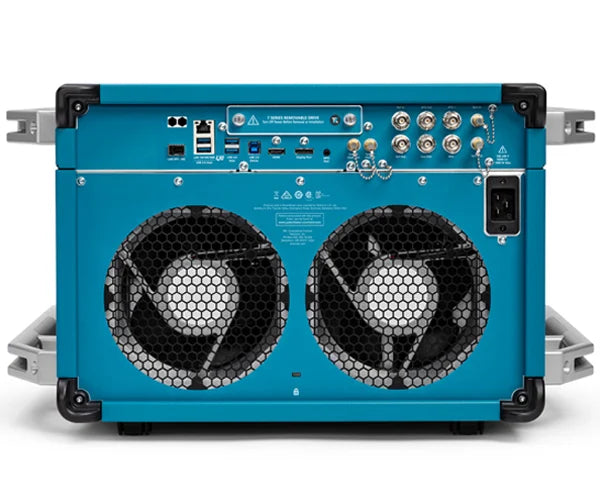

  • 10 Gbps SFP+ port accepts choice of RJ-45 electrical, fiber optic, or direct attach transceiver modules
  • TekScope PC software natively supports the high-speed interface along with offline and remote oscilloscope-like analysis capabilities

Get to Results Faster with Award-winning, Intuitive User Interface

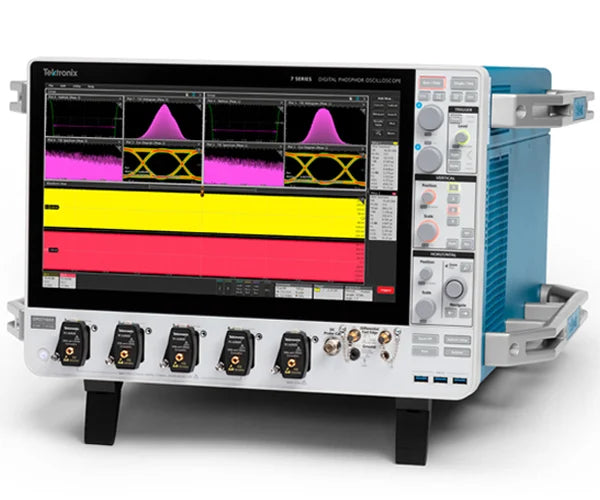

A 15.6-inch display, with full 1080p resolution, and an award-winning, intuitive user interface that works the way you expect gets you to test results faster.

Highlights

  • Delightful user experience, with the built-for-touch UI and the same TekScope™ software found on the 2, 3, 4, 5 and 6 Series oscilloscopes delivers quick insights
  • Streamlines complex tasks with well-organized menu structure with minimal layers to quickly navigate settings, setup the instrument, configure measurements, and effortlessly move through acquired data
  • Responsive touchscreen, optimized for multi-touch gestures, allows precise control over waveform analysis - quickly zoom into picosecond glitches or adjust measurement parameters for eye diagram analysis, ensuring accurate results
  • Easy one button Jitter Measurement Summary provides comprehensive data including key plots, diagrams and measurements quickly on one channel or multiple channels at the same time

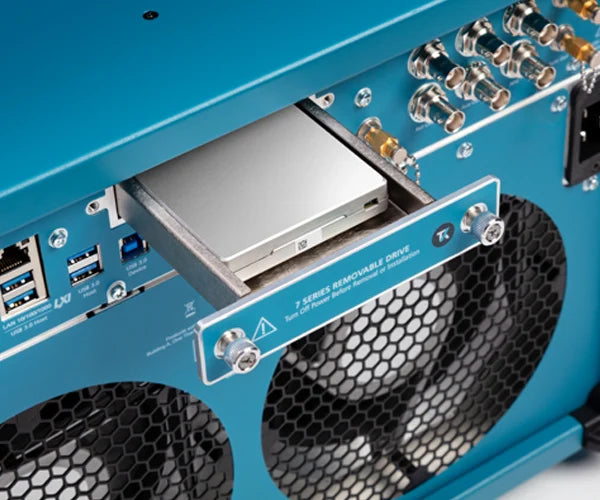

  • Available with either embedded or Windows OS on a removable SSD
