SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement SEP 2620 F6,3 gelb/gruen, yellow/green Test Socket, Y/G, 4mm, Press-in, 32A, SEP Series
Part #NS04 972362188
MFG #SEP 2620 F6,3 gelb/gruen, yellow/green
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement SEP 2620 F6,3 gelb/gruen, yellow/green Test Socket, Y/G, 4mm, Press-in, 32A, SEP Series
Part #NS04 972362188
MFG #SEP 2620 F6,3 gelb/gruen, yellow/green
€
€
Multiples of: 50
- Description
- Attributes
- Documents

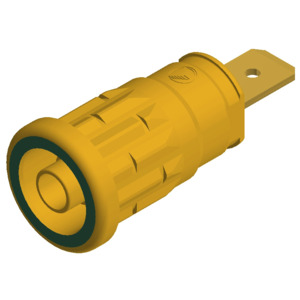

Safety press-in socket, 4 mm diameter, contact-protected, with 6.3 x 0.8 tab connector complying with DIN 46 244, gold-plated brass. For rapid installation into switchpanels with wall thicknesses between 1-10 mm. Installation hole: Ø12.2 ±0.1 mm. Entry chamfer: 0.5 x 45°
Brand:Â SKS Hirschmann Test & Measurement
Type:Â Test Socket
Series:Â SEP Series
Alternate Product Number:Â 972362188
AC Voltage:Â 1000 V
Color:Â Yellow, Green
Connection:Â Flat Connector 6.3 x 0.8 mm
Current Rating:Â 32 A
DC Voltage:Â 1000 V
Flammability Rating:Â V-2
Housing Material:Â PA
Material:Â Brass, Gold Plated
Measurement Rate:Â CAT III
Socket Size:Â 4 mm
Temperature Range: -40 to +80°C
Terminal Type:Â Solder
US SKU #:Â 10117843
Voltage Rating:Â 1000 V
€
€
Multiples of: 50
