SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement MST 201 Test Plug, 2mm, Solder Terminal, 6A, MST Series
Part #NS04 931338001
Condition:New
MFG #MST 201
- Description
- Attributes
- Documents

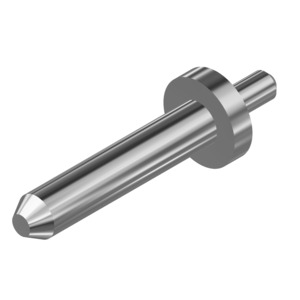

2 mm diameter miniature connector pin for soldering into printed boards. Connects with MKU 1 and MBU 2. This connector pin is used together with the MBU 2 socket in stacking printed boards. Connector pins are installed at a spacing pitch from 5 mm up.
Brand: SKS Hirschmann Test & Measurement
Type: Test Plug
Series: MST Series
Alternate Product Number: 931338001
AC Voltage: 30 V
Connection: Solder
Current Rating: 6 A
DC Voltage: 60 V
Material: Brass, Nickel Plated
Pin Size: 2 mm
Temperature Range: -20 to +60°C
Terminal Type: Solder Terminal
US SKU #: 10123419
Voltage Rating: 60 V
