SKS Hirschmann Test & Measurement

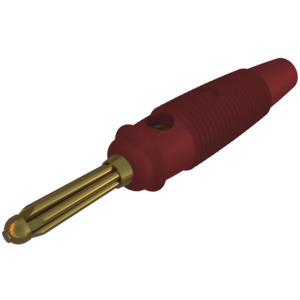

SKS Hirschmann Test & Measurement BUELA 30 K Au rot / red Test Plug, Red, Gold Plated, Solder Terminal, 30A
Part #NS04 930727701
MFG #BUELA 30 K Au rot / red
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement BUELA 30 K Au rot / red Test Plug, Red, Gold Plated, Solder Terminal, 30A
Part #NS04 930727701
MFG #BUELA 30 K Au rot / red
€
€
Multiples of: 50
- Description
- Attributes
- Documents
Multiple-spring wire plug, shatter-proof, flexible insulated sleeve with transverse hole. The tapering sleeve end also serves as kinking protection for the lead. Solder connection up to maximum cable cross-section of 2.5 mm². Gold-plated brass contact material.
Brand:Â SKS Hirschmann Test & Measurement
Type:Â Test Plug
Series:Â BUELA Series
Alternate Product Number:Â 930727701
AC Voltage:Â 30 V
Color:Â Red
Connection:Â Solder
Current Rating:Â 30 A
DC Voltage:Â 60 V
Housing Material:Â PVC-P
Material:Â Brass, Gold Plated
Pin Size:Â 4 mm
Style:Â Gold Plated
Temperature Range: -25 to +70°C
Terminal Type:Â Solder Terminal
US SKU #:Â 10117664
Voltage Rating:Â 60 V
€
€
Multiples of: 50
