SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement PKN 10 B blau / blue Test Socket, Blue, 2.6mm Cross Hole, M6 Thread, 16A
Part #NS04 930117102
MFG #PKN 10 B blau / blue
SKS Hirschmann Test & Measurement
SKS Hirschmann Test & Measurement PKN 10 B blau / blue Test Socket, Blue, 2.6mm Cross Hole, M6 Thread, 16A
Part #NS04 930117102
MFG #PKN 10 B blau / blue
€
€
Multiples of: 100
- Description
- Attributes
- Documents

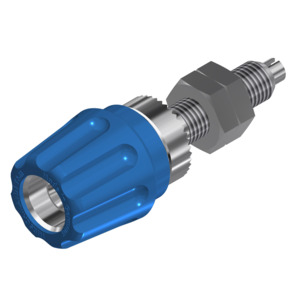

Pole terminal with claw edge and captive insulated head. 6 mm diameter nickel-plated brass threaded bolt with 2.6 mm diameter transverse hole. For non-rotating installation in equipment chassis and switchpanels.
Brand:Â SKS Hirschmann Test & Measurement
Type:Â Test Socket
Series:Â PKN Series
Alternate Product Number:Â 930117102
AC Voltage:Â 30 V
Color:Â Blue
Connection:Â M6 Thread, Solder Connection
Current Rating:Â 63 A
DC Voltage:Â 60 V
Housing Material:Â PA
Material:Â Brass, Nickel Plated
Temperature Range: -25 to +100°C
Terminal Type:Â Binding Post
Voltage Rating:Â 60 V
€
€
Multiples of: 100
